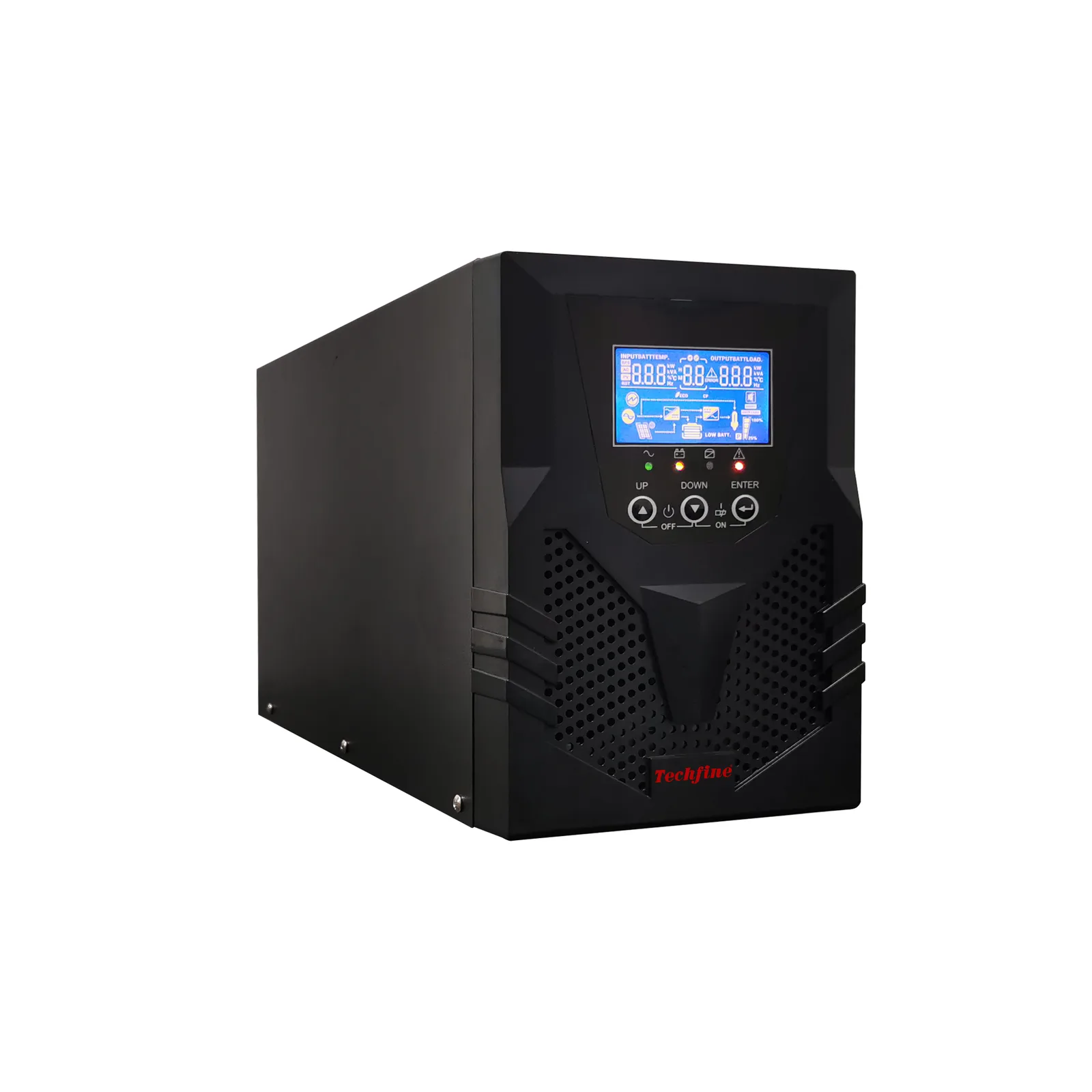

Pure Sine Wave 220V 110V 1KVA 2KVA 3KVA 10KVA 15KVA UPS Power Supply Online 2KW 5KW 10KW 20KVA UPS
Online UPS

Pure Sine Wave 220V 110V 1KVA 2KVA 3KVA 10KVA 15KVA UPS Power Supply Online 2KW 5KW 10KW 20KVA UPS

Tips:

Up to 95.5% high efficiency
Send Inquiry

Product Highlights

Key Features

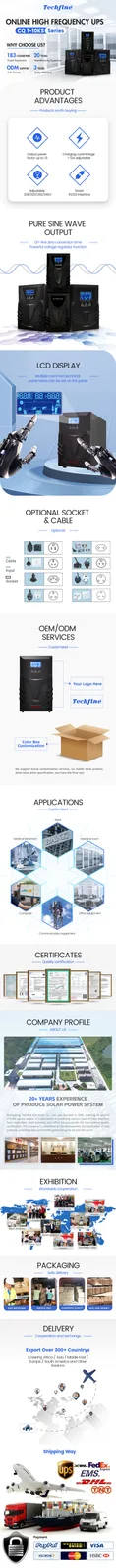

Product Description
01

Product Description

Feature： Pure sine wave output, online zero conversion time Wide input frequency range adjustable from 40-70HZ Output short circuit protection and overload protection Full-time lightning protection, noise and surge protection The LCD screen is to display the status parameters at a glance The RS232 communication interface is applied Double-sided circuit board design with higher safety and reliability Various common technical parameters can be set on the panel

Specifications

ModelsCQ2K (S)
PhaseSingle-phase
Capacity2K VA / 2KW
Input
Voltage range110 - 300VAC
Frequency range50HZ/60HZ
Power factor1
Output
Output voltage220VAC±1% (208, 220, 230, 240 adjustable on LCD screen), 110VAC±1% Optional
Frequency range (battery mode)50 Hz （60HZ selectable）± 0.25 Hz
Transfer0ms
time
Wave formPure sine wave
Battery
StandardBattery model12V / 7AH（Standar) 12V /9AH（Optional)
Quantity/DC Voltage4PCS/48VDC
Max. charging current1.0A (Maximum)
Long-runBattery modelDepends on the users
DC Voltage72VDC
Max. charging current1A, 2A ,3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A adjustable
LCD or LED displayLoad size, battery capacity, mains mode, battery mode, bypass mode, fault indication
Control managementSmart RS-232、SNMP optional
