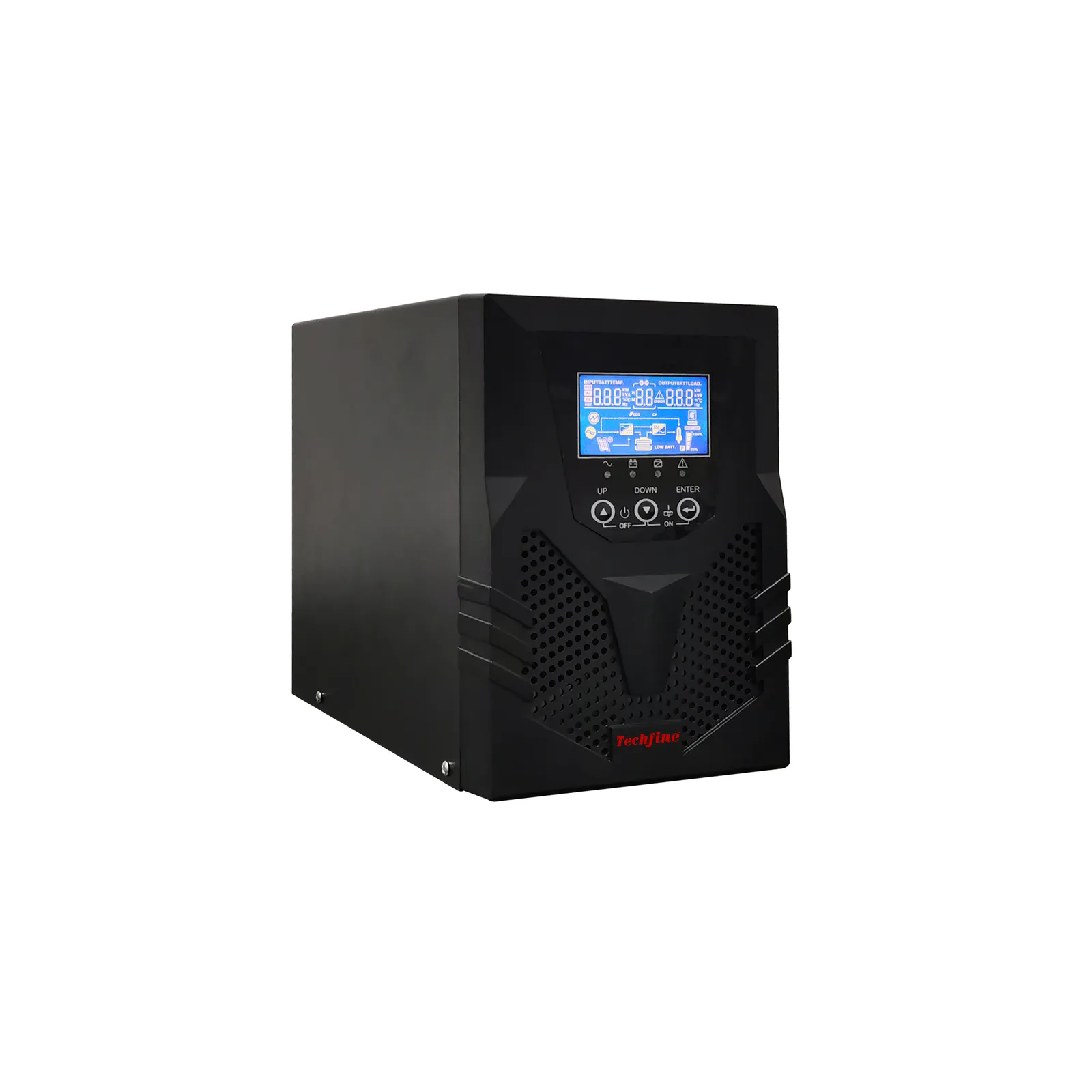

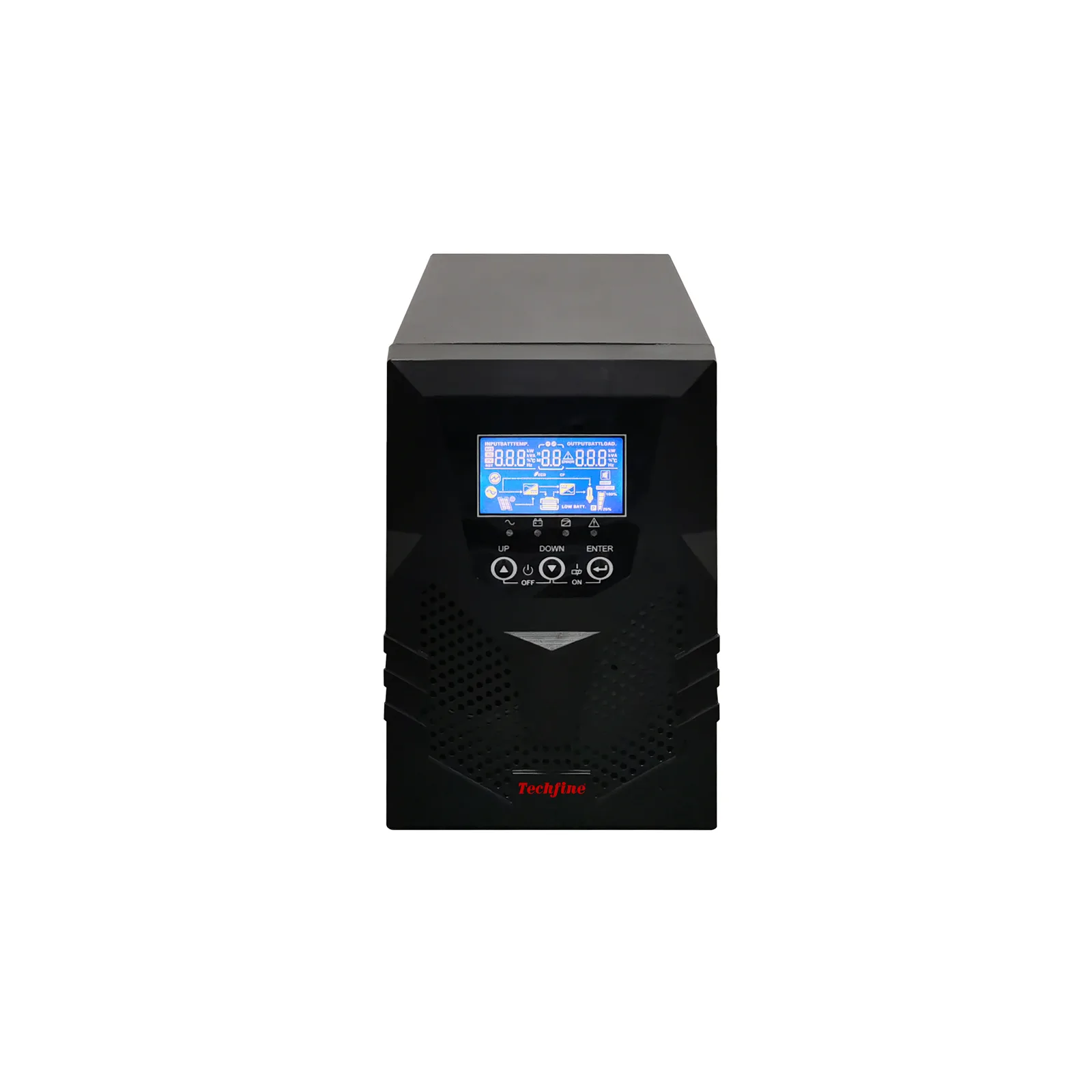

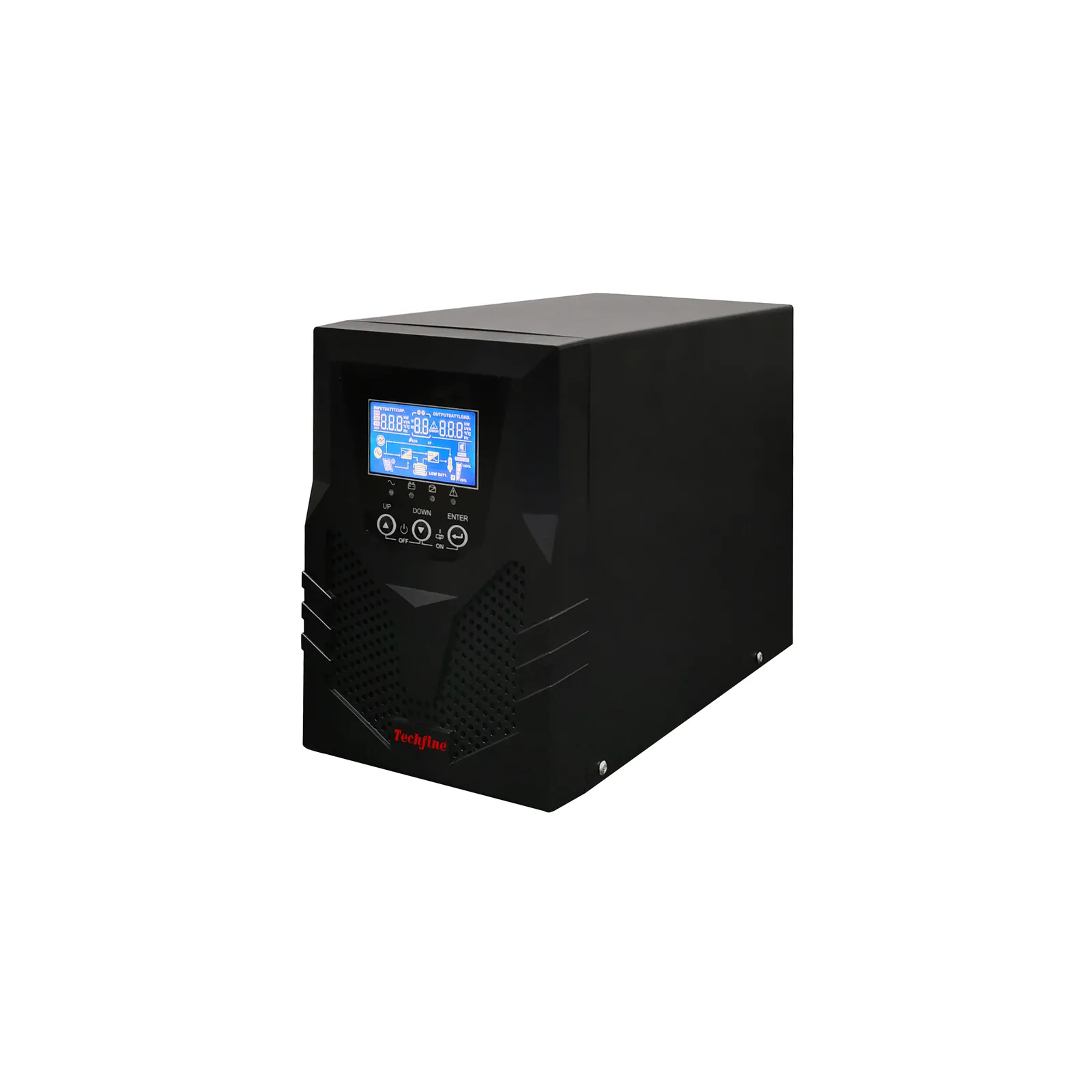

Techfine CQ1K(S) 1 kVA / 1 kW online UPS: Verify Load, Battery and Runtime
This page organizes the current source table for the Techfine CQ1K(S) 1 kVA / 1 kW online UPS. single phase; 0 ms table transfer; 24 V standard or 36 V long-run route. It does not turn headline VA/kW, a transfer-time line or a battery label into an approved load, autonomy or availability promise.
Current source route: CQ1K(S) 1 kVA / 1 kW online UPS.
Current source parameter table
This table is preserved from the current source record. Read it with the identity, compatibility and document boundaries below; unresolved conflicts are not corrected by assumption.
| Models | CQ1K (S) | |
|---|---|---|
| Phase | Single-phase | |
| Capacity | 1K VA / 1KW | |
| Input | ||
| Voltage range | 110 - 300VAC | |
| Frequency range | 50HZ/60HZ | |
| Power factor | 1 | |
| Output | ||
| Output voltage | 220VAC±1% (208, 220, 230, 240 adjustable on LCD screen), 110VAC±1% Optional | |
| Frequency range (battery mode) | 50 Hz （60HZ selectable）± 0.25 Hz | |
| Transfer | 0ms | |
| time | ||
| Wave form | Pure sine wave | |
| Battery | ||
| Standard | Battery model | 12V / 7AH（Standar) 12V /9AH（Optional) |
| Quantity/DC Voltage | 2PCS/24VDC | |
| Max. charging current | 1.0A (Maximum) | |
| Long-run | Battery model | Depends on the users |
| DC Voltage | 36VDC | |
| Max. charging current | 1A, 2A ,3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A adjustable | |
| LCD or LED display | Load size, battery capacity, mains mode, battery mode, bypass mode, fault indication | |

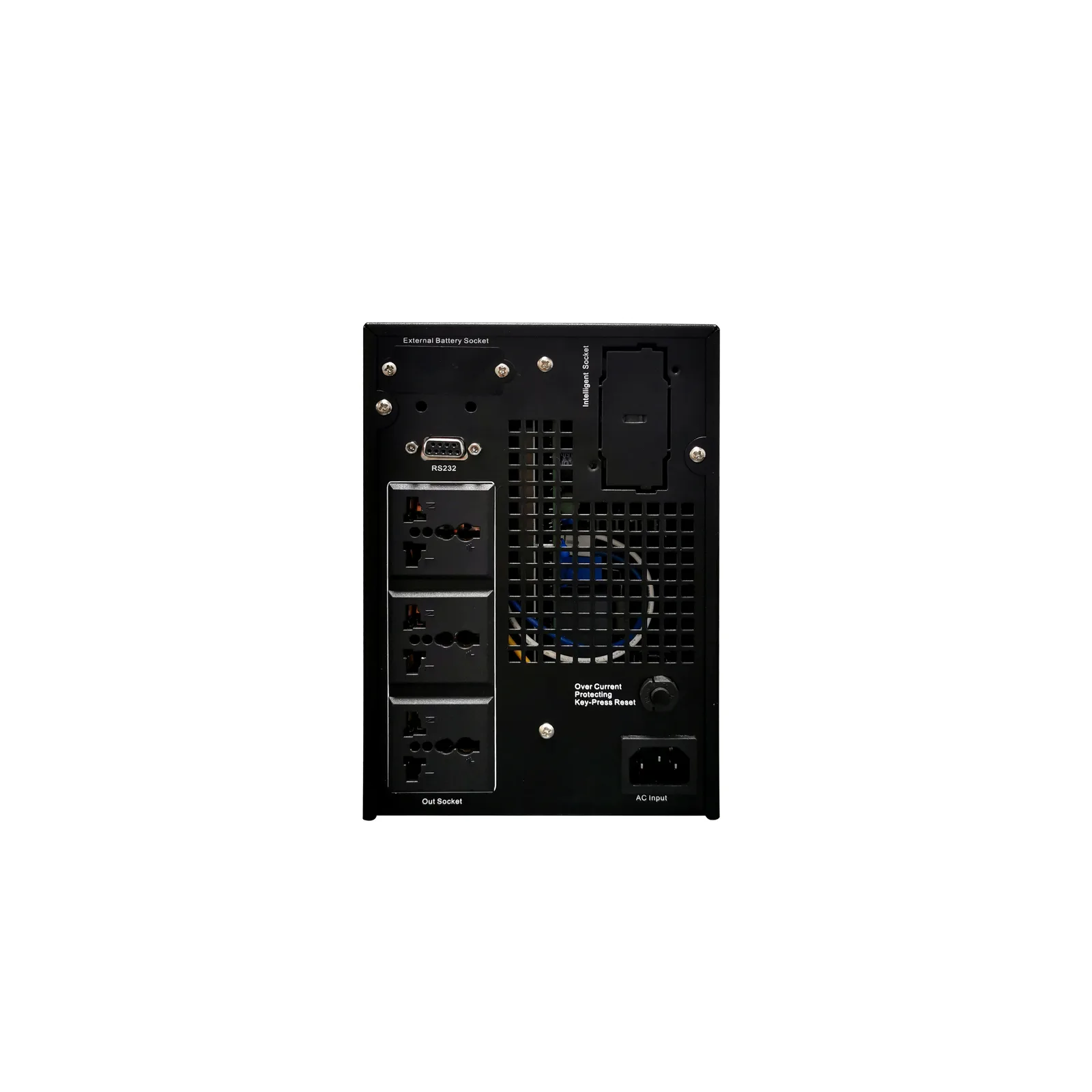

| Control management | Smart RS-232、SNMP optional | |
Current document status
Request the exact model/suffix, nameplate, current manual, battery schedule, charger, bypass/connection diagram, monitoring options and destination evidence before release.
Current table evidence
Keep UPS power and battery route on the same selected model
The exact suffix, load power factor, battery bank and operating condition define the final UPS configuration.
Rating and topology
single phase; 0 ms table transfer; 24 V standard or 36 V long-run route
AC and protected load
Confirm input/output voltage, phase, frequency, waveform, continuous W/VA, power factor, crest factor, inrush and overload behavior.
Battery route
Confirm standard or long-run suffix, battery model/quantity/DC bus, charger, cabinet, cables, cutoff and protection.
Runtime and controls
Runtime needs actual watts, battery condition, temperature, losses and reserve. Confirm display, alarms, interfaces, monitoring and shutdown functions.
UPS RFQ checks
Six checks before finalizing the UPS
A quotation must map the exact UPS suffix to a defined critical load and battery design.
Exact model
Request model/suffix, nameplate, VA/W and current datasheet.
Critical load
Provide continuous and peak W/VA, power factor, crest/inrush, load sensitivity and growth allowance.
AC behavior
Confirm topology, input/output window, waveform, THD, overload, bypass, transfer and generator behavior.
Battery and runtime
Fix battery route, DC bus, Ah, charger, cutoff, runtime at stated W load, temperature and reserve.
Installation and monitoring
Confirm outlets/terminals, grounding, upstream protection, ventilation, service access, alarms and communications.
Evidence and terms
Request manuals, battery documents, safety/EMC evidence, included accessories, warranty, sample, lead time and substitution rules.
UPS boundaries
A VA headline or transfer-time line is not an uptime guarantee
Final suitability depends on the selected UPS, exact load, battery, AC system and project design.
VA, W and surge differ
A headline rating does not approve every server, motor, transformer or nonlinear load; verify real power and inrush.
Battery labels are not runtime
Battery quantity/Ah alone does not establish usable energy or runtime without actual load, cutoff, losses, age and temperature.
Standard and long-run differ
DC voltage, charger, protection, cabinet and cable routes can differ; do not interchange them.
Transfer and bypass require a test
A transfer-time or 0 ms line does not cover overload, bypass, depleted battery, downstream protection or all target-load ride-through behavior.
Continue the UPS review
Prepare a load-and-runtime UPS RFQ
Use the existing guides to record the actual critical-load and battery assumptions.
UPS FAQ
Questions to close before quotation
The exact model, battery schedule and load test determine the final answer.
Which rating applies to this CQ1K(S) 1 kVA / 1 kW online UPS?
The current source route is single phase; 0 ms table transfer; 24 V standard or 36 V long-run route. Confirm the exact quoted suffix and nameplate before technical release.
Can runtime be quoted from the listed battery route?
No. Calculate against actual W load, battery model/quantity/Ah, cutoff, conversion losses, age, temperature and reserve.
Does the transfer-time line approve every protected load?
No. Confirm topology, waveform, overload, bypass, battery state and the target load’s ride-through tolerance.
Which documents should the RFQ include?
Request exact datasheet/manual, nameplate, battery/charger schedule, wiring and bypass data, monitoring options, safety/EMC evidence, warranty and commercial terms.
Prepare a verified CQ1K(S) 1 kVA / 1 kW online UPS RFQ
Send the AC system, critical-load W/VA and inrush, runtime target, battery route, interfaces and required documents.
