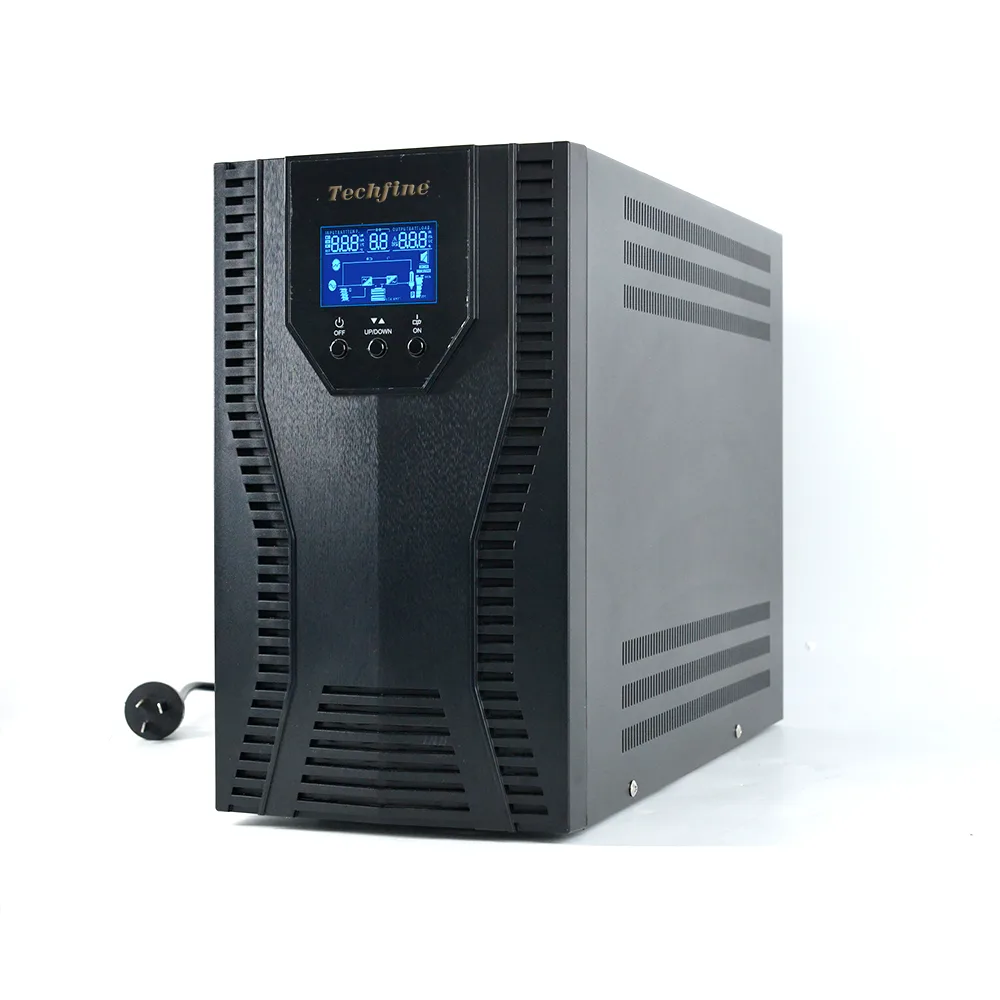

Techfine CYE2K(S) 2 kVA / 1.6 kW line-interactive UPS: Verify Load, Battery and Runtime
This page organizes the current source table for the Techfine CYE2K(S) 2 kVA / 1.6 kW line-interactive UPS. single phase; 220 VAC output; ≤8 ms table transfer; standard/long-run battery routes. It does not turn headline VA/kW, a transfer-time line or a battery label into an approved load, autonomy or availability promise.
Current source route: CYE2K(S) 2 kVA / 1.6 kW line-interactive UPS.
Current source parameter table
This table is preserved from the current source record. Read it with the identity, compatibility and document boundaries below; unresolved conflicts are not corrected by assumption.
| Factory model | CYE2K (S) |
|---|---|
| phase | Single phase |
| capacity | 2000 VA / 1600 W |
| Input | |
| Voltage range | 145 -280VAC |
| Frequency range | 46Hz ~ 54 Hz or 56Hz ~ 64 Hz |
| Power factor | At 100% load ≧0.98 |
| Output | |
| Output voltage | 220VAC±10% |
| Voltage range (battery mode) | ± 2% (±10% mains mode) |
| Frequency range (synchronous correction range) | 47~ 53 Hz or 57 ~ 63 Hz |
| Frequency range (battery mode) | 50 Hz ± 0.25 Hz |
| Surge ratio | 3:1 |
| Harmonic distortion | ≦ 3% THD (Linear load) ≦6% THD (nonlinear load） |
| Conversion time | ≤8ms |
| Wave form | Pure sine wave |
| Battery | |
| Standard battery model | 12V / 7AH |
| quantity | 4or6 |
| Maximum charging current | 1.5A（Max） |
| Charging voltage | 55\82.1VDC ± 1% |
| Long-lasting machine battery model | Depends on applicant |
| quantity | 6 |
| Maximum charging current | 6A(adjustable) |
| Charging voltage | 82.1VDC ± 1% |
| Appearance | |
| LCD or LED display | Load size, battery capacity, mains mode, Battery mode, bypass mode, fault indication |
| Alarm | |
| Battery mode | It goes off every four seconds |
| Low battery | It goes off every second |
| Over duty | It goes off every second |
| mistake | Continuous ringing |
| Overall dimension | |

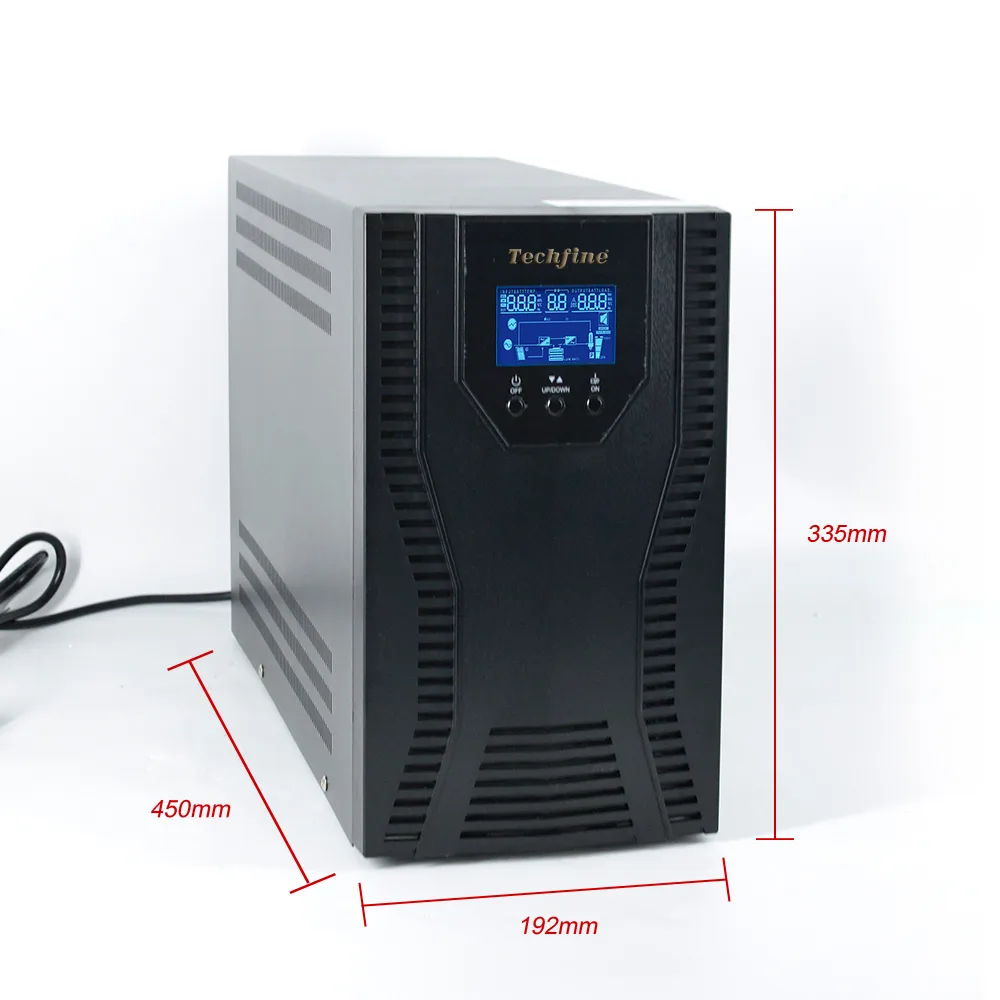

| Marking machine dimensions, D x W x H (mm) | 450x192x335 |
| Net weight (kg) | 25.3\29.7 |
| Long life machine size, D x W x H (mm) | 350x192x335 |
| Net weight (kg) | 15.97 |
| Use environment | |
| Temperature and humidity | Relative humidity 20-90% and temperature 0-40 °C (no condensation) |
| noise | Less than 45DB@1 m |
| Control management | |
| Smart RS-232/ USB | Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, |
| Optional SNMP | Power management Supports SNMP management and network management |
| Added performance features with B-ultrasound (model suffix plus B for B-ultrasound) | |
| Low leakage current | The leakage current of the whole machine is < 500uA |
| Electromagnetic compatibility | No interference to medical B-ultrasound equipment |
| noise | Less than 40dBA@ 1 m |
Current document status
Request the exact model/suffix, nameplate, current manual, battery schedule, charger, bypass/connection diagram, monitoring options and destination evidence before release.
Current table evidence
Keep UPS power and battery route on the same selected model
The exact suffix, load power factor, battery bank and operating condition define the final UPS configuration.
Rating and topology
single phase; 220 VAC output; ≤8 ms table transfer; standard/long-run battery routes
AC and protected load
Confirm input/output voltage, phase, frequency, waveform, continuous W/VA, power factor, crest factor, inrush and overload behavior.
Battery route
Confirm standard or long-run suffix, battery model/quantity/DC bus, charger, cabinet, cables, cutoff and protection.
Runtime and controls
Runtime needs actual watts, battery condition, temperature, losses and reserve. Confirm display, alarms, interfaces, monitoring and shutdown functions.
UPS RFQ checks
Six checks before finalizing the UPS
A quotation must map the exact UPS suffix to a defined critical load and battery design.
Exact model
Request model/suffix, nameplate, VA/W and current datasheet.
Critical load
Provide continuous and peak W/VA, power factor, crest/inrush, load sensitivity and growth allowance.
AC behavior
Confirm topology, input/output window, waveform, THD, overload, bypass, transfer and generator behavior.
Battery and runtime
Fix battery route, DC bus, Ah, charger, cutoff, runtime at stated W load, temperature and reserve.
Installation and monitoring
Confirm outlets/terminals, grounding, upstream protection, ventilation, service access, alarms and communications.
Evidence and terms
Request manuals, battery documents, safety/EMC evidence, included accessories, warranty, sample, lead time and substitution rules.
UPS boundaries
A VA headline or transfer-time line is not an uptime guarantee
Final suitability depends on the selected UPS, exact load, battery, AC system and project design.
VA, W and surge differ
A headline rating does not approve every server, motor, transformer or nonlinear load; verify real power and inrush.
Battery labels are not runtime
Battery quantity/Ah alone does not establish usable energy or runtime without actual load, cutoff, losses, age and temperature.
Standard and long-run differ
DC voltage, charger, protection, cabinet and cable routes can differ; do not interchange them.
Transfer and bypass require a test
A transfer-time or 0 ms line does not cover overload, bypass, depleted battery, downstream protection or all target-load ride-through behavior.
Continue the UPS review
Prepare a load-and-runtime UPS RFQ
Use the existing guides to record the actual critical-load and battery assumptions.
UPS FAQ
Questions to close before quotation
The exact model, battery schedule and load test determine the final answer.
Which rating applies to this CYE2K(S) 2 kVA / 1.6 kW line-interactive UPS?
The current source route is single phase; 220 VAC output; ≤8 ms table transfer; standard/long-run battery routes. Confirm the exact quoted suffix and nameplate before technical release.
Can runtime be quoted from the listed battery route?
No. Calculate against actual W load, battery model/quantity/Ah, cutoff, conversion losses, age, temperature and reserve.
Does the transfer-time line approve every protected load?
No. Confirm topology, waveform, overload, bypass, battery state and the target load’s ride-through tolerance.
Which documents should the RFQ include?
Request exact datasheet/manual, nameplate, battery/charger schedule, wiring and bypass data, monitoring options, safety/EMC evidence, warranty and commercial terms.
Prepare a verified CYE2K(S) 2 kVA / 1.6 kW line-interactive UPS RFQ
Send the AC system, critical-load W/VA and inrush, runtime target, battery route, interfaces and required documents.
