Is there a middle ground between a portable power station and a full DIY solar system?

The middle option is usually a two-box system

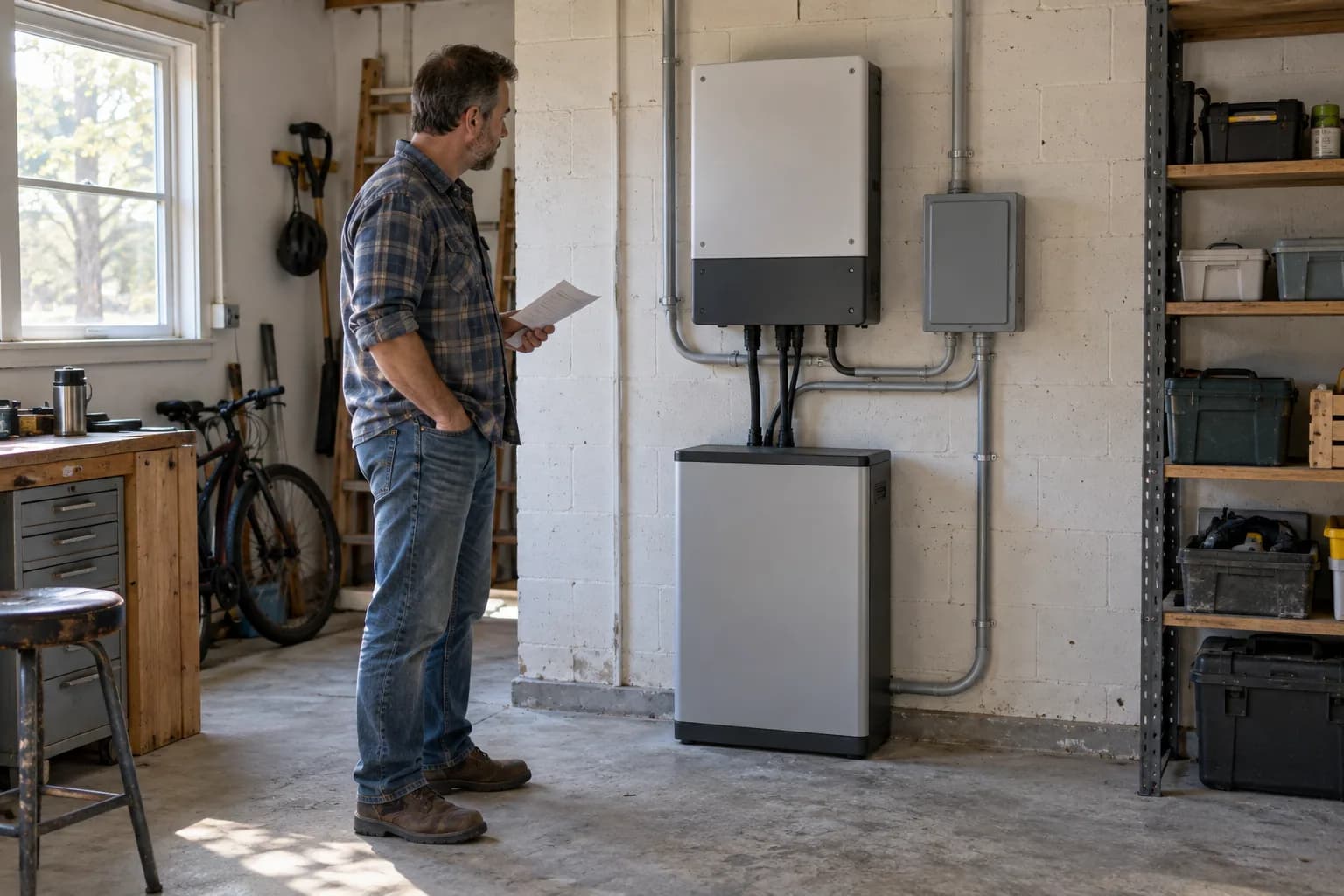

Picture the system as two main boxes. The first handles power conversion and charging. Depending on the exact model, it may combine the inverter, solar charge controller, mains or generator charger, changeover function and basic monitoring. The second box is the battery.

Solar panels remain separate. A small protection or distribution box may still be needed too. The result is more modular than a portable power station but much less scattered than choosing an inverter, solar controller, battery charger and monitor one by one.

This is a real product layout, not a new invention. Some manufacturers sell units that combine an MPPT solar charger, inverter-charger and control functions in one enclosure. What changes from model to model is how much has actually been combined, which batteries are supported and what must be added around the unit.

1. 1

   Portable power station

   Battery, charger, inverter and outlets arrive in one case. It is the quickest route when easy transport matters most.

2. 2

   Modular two-box system

   One all-in-one power unit works with a separate battery. It reduces the box count while keeping some choice and expansion room.

3. 3

   Full component system

   The inverter, solar controller, charger, monitoring and battery can be selected separately. It offers more control and more matching work.

What the all-in-one box removes—and what it does not

An all-in-one inverter can remove several separate electronic boxes and some of the cables that would have joined them. That makes the equipment list easier to understand. It can also give one screen or menu for the main operating settings instead of several unrelated controls.

The name can still be misleading. “All-in-one” often describes the power electronics, not the complete working system. It may not include the battery, solar panels, mounting, solar cables, battery protection, output protection, sockets, distribution equipment or the work needed to connect fixed circuits. Read the supplied-items list before comparing prices.

There is also a large difference between plugging an appliance into a unit's built-in outlet and connecting backup power to a building. A workshop bench, an RV and a home switchboard do not have the same installation needs. Once the system supplies fixed wiring, the final design and work should be handled by the qualified people responsible for that site.

The middle option is simpler because several functions share one enclosure. It is not simple because the rest of the electrical system has disappeared.

A separate battery does not mean any battery will work

Battery choice is where many buyers expect more freedom than the product really offers. A battery can have the right-looking plug and still be the wrong match.

Start with the voltage family named by the inverter. Then check how much charging and discharging current the battery allows, whether the battery management system needs to talk to the inverter, and whether the exact battery model appears in the manufacturer's current compatibility information. Settings and firmware can matter as much as the connector.

Some systems support a battery through direct communication. Others can work from voltage-based settings when both manufacturers allow that arrangement. Those two methods should not be treated as interchangeable. Without the expected communication, the inverter may not receive an accurate battery level or the limits the battery is asking it to follow.

Future replacement deserves the same check. “External battery” only tells you that the battery is outside the main enclosure. It does not promise that a different brand, chemistry or newer model can be added years later. Keep the exact inverter model, battery model, manuals and confirmed settings with the purchase record.

Solar panels may be less brand-bound, but they still have to fit

Solar panels are often easier to source separately than an expansion battery. The important match is usually in the electrical limits rather than the logo on the frame.

The all-in-one unit has a working solar-voltage range, a maximum open-circuit voltage and limits for solar current and power. The proposed panels and their arrangement have to stay inside those limits in the real conditions at the site. Cold weather, for example, can raise panel voltage. Shade and panel direction can change how useful the array is even when the catalogue numbers look acceptable.

Do not buy panels from a panel-count promise such as “supports six modules.” Panel models vary. Ask for the exact panel model and a documented array review against the exact inverter. The responsible technical person should also define the cable, isolation and protection for the final installation.

Portable for a weekend is different from movable once a year

A handle does not make every battery system portable. The larger the battery and inverter become, the more weight, ventilation, protection and secure mounting start to matter.

A portable power station works well when one person needs to carry power from the house to a vehicle, campsite or job. A modular system can suit an RV, workshop or small cabin when it has a planned position and only moves occasionally. A home backup system belongs in a proper fixed location even if the equipment could technically be unbolted later.

Trying to make one system serve camping, an RV, power tools and household backup often creates an awkward compromise. Camping rewards low weight and built-in outlets. A workshop may care more about motor starting and dust. A fixed backup system needs a clear changeover and selected circuits. Choose the main job first and treat any second use as a bonus that still needs checking.

Check what ‘works offline’ actually means

A system can continue powering loads without the internet and still depend on an app for its first setup. Another may have buttons and a display for basic use but keep detailed history in a cloud account. “No cloud required” needs a more precise answer.

Ask whether the unit can start, stop, charge and supply power after the phone is removed from the account. Find out which settings can be changed on the device, which need a local cable or app, and which depend on an online service. If monitoring matters, ask whether records can be viewed locally and what happens when the internet is unavailable.

The answer can change with firmware and product generation, so do not rely on a family name or an old review. A short demonstration using the exact unit is more useful: disconnect the internet, restart the equipment safely and show which controls still work. This should be performed according to the product instructions, without opening live equipment.

Fewer boxes can create one bigger point of failure

Integration has an obvious advantage: fewer devices to mount, fewer menus to learn and fewer interfaces between products. Support may also be simpler when one manufacturer is responsible for most of the power electronics.

The other side appears when something fails. If the solar charger, mains charger and inverter share one enclosure, a problem with that unit can remove several functions at once. A system built from separate parts may keep operating in a limited way while one component is replaced. It also gives the owner more freedom to change one part without changing the rest.

Neither layout is automatically easier to repair. Ask how faults are diagnosed, whether the complete unit must be shipped back, whether replaceable boards or modules are available, and how long the model will receive software and spare-parts support. A clean product brochure rarely answers those questions, but they matter when the system is expected to work for years.

Use this short list before choosing a system

You do not need to design the complete system before speaking with a supplier or installer. You do need enough information to tell a carryable appliance from a fixed power system and to compare the same scope across two offers.
