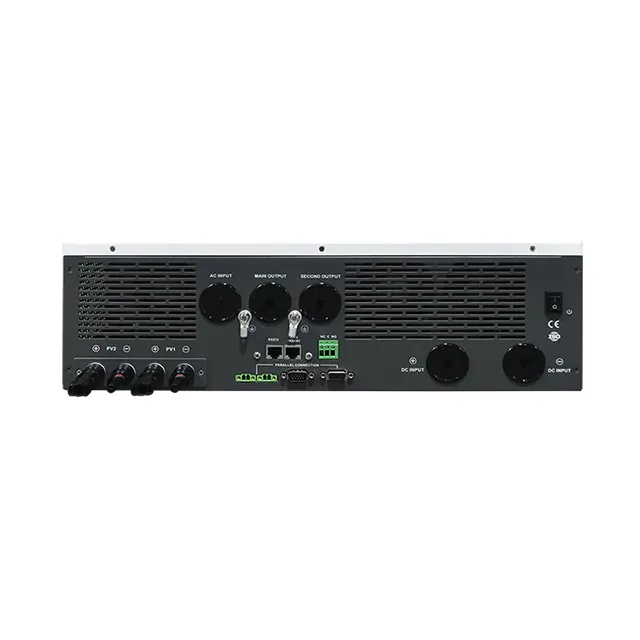

GA PRO-series | 8.6kW/11kW dual output hybrid solar inverter with MPPT*2
Lithium Battery Auto-restart Function More Convenient for Lithium Battery Charging
Product Highlights
Key Features
Product Details

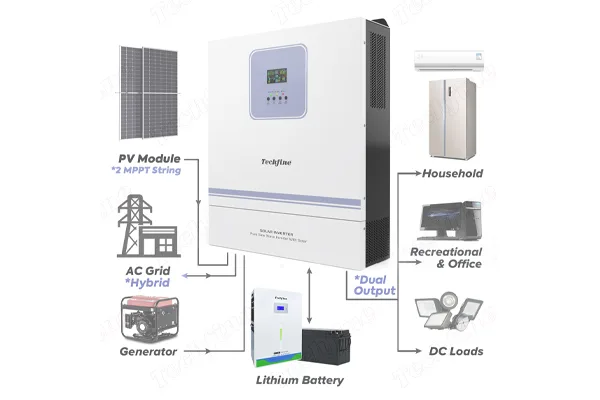

Harnessing Solar Synergy Techfine presents a seamless solar energy experience with our GA pro-Series Inverter – the heart of solar energy system.The Solar System Diagram illustrates the smart connectivity that powers your world. Tailored for Excellence – ODM Customizable Inverter Solutions We understand that one style does not fit all. That’s why we offer an array of customizable options to align with your specific needs. Intuitive Control at Your Fingertips Our control panel is the gateway to a smarter energy solution, placing the power to monitor and adjust right in the palm of your hand. 20+ Years of Power Energy Expertise A source manufacturer with over 20 years of experience, providing OEM/ODM customization, strong technical support, and professional customer service. Comprehensive Support for Cooperative Partner Exclusive benefits including priority new products, free marketing design, custom product options, and full installation guidance. Complete Certification & Quality Assurance Our products comply with international standards and are equipped with full certifications to ensure safety, reliability, and global market approval.
Specifications
| Model | GA8648SMH | GA11048SMH |
|---|---|---|
| AC Input | ||
| Input Formation | L+N+PE | |
| AC Input | 220/230/240VAC | |
| Input Voltage Range | 90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode) | |
| Frequency | 50/60Hz(Adaptive) | |
| Inverter Output | ||
| Rated Power | 8600W | 11000W |
| Dual Output Power | 8600W/11000W | 11000W/12000W |
| Output Voltage(AC) | 220/230/240VAC±5% | |
| Output Frequency | 50/60Hz±0.1% | |
| Output Wave | Pure Sine Wave | |
| Transfer Time(Adjustable) | 10ms for Computer Equipment,20ms for Household Equipment | |
| Peak Power | 17200VA | 22000VA |
| Overload Ability | Battery Mode: 11s@105%~150% Load; 2s@150%~200% Load; 400ms@>200% Load | |
| Grid connected Operation | ||
| Output Voltage | 220/230/240VAC | |
| Grid Voltage Range | 170-265VAC | |
| Grid Frequency Range | 49-51±1Hz/59-61±1Hz | |
| Output Current | 37.4A | 47.8A |
| Power Factor Range | >0.99 | |
| Max efficiency (DC/AC) | >98% | |
| Battery Charging | ||
| Rated Voltage | 48VDC | |
| Constant Charging Voltage | 56.4Vdc | |
| Float Charging Voltage | 54VDC | |
| PV Input & Charging | ||
| PV Charging Method | 2*MPPT | |
| Max PV Input Power | 2*6500W | 2*7500W |
| PV Input Voltage Range | 90~500VDC | 90~500VDC |
| MAX PV Input Voltage | 500VDC | 500VDC |
| MAX PV Input Current | 27A/27A | 27A/27A |
| MAX PV Charge Current | 150A | 150A |
| MAX AC Charge Current MAX Charge Current | 150A 150A | 150A 150A |
| Communication & Display | ||
| LCD | Can display operating mode/load/input/output | |
| RS232 | 5PIN/Pitch2.54mm,Baud Rate 2400 | |
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm | |
| Parallel Interface | Not Support Parallel | |
| Environmental Conditions | ||
| Operating Temperature | 0°C~40°C | |
| Storage Temperature | -15°C~60°C | |
| Ork Altitude | No more than 1000m, If 1000m<,Rate power will lower, MAX 4000m, Refer | |
| Operating Environment Humidity | Non Condensing | |
| Noise | <50dB | |
