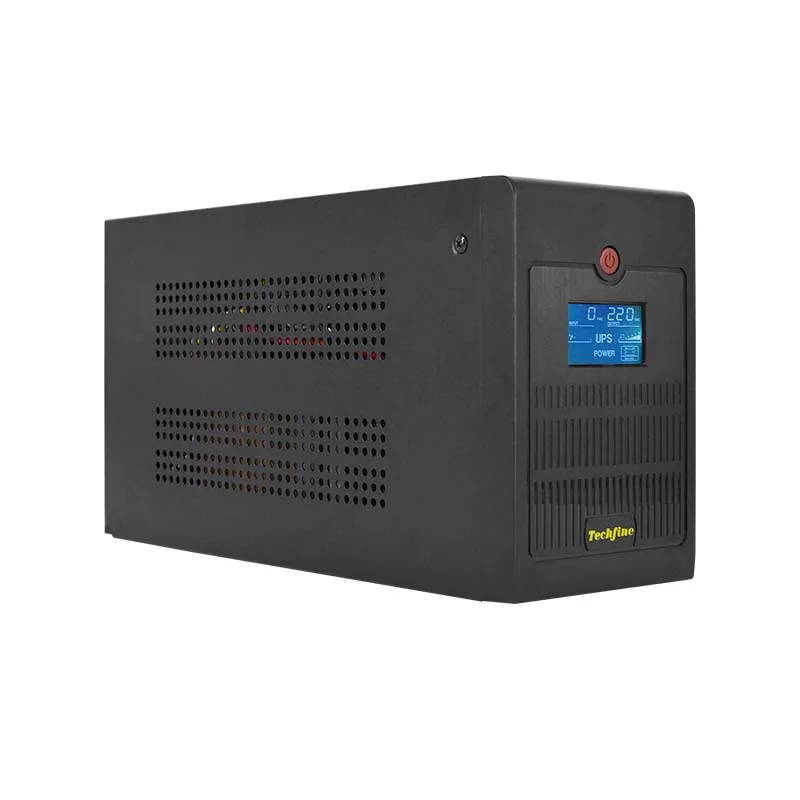

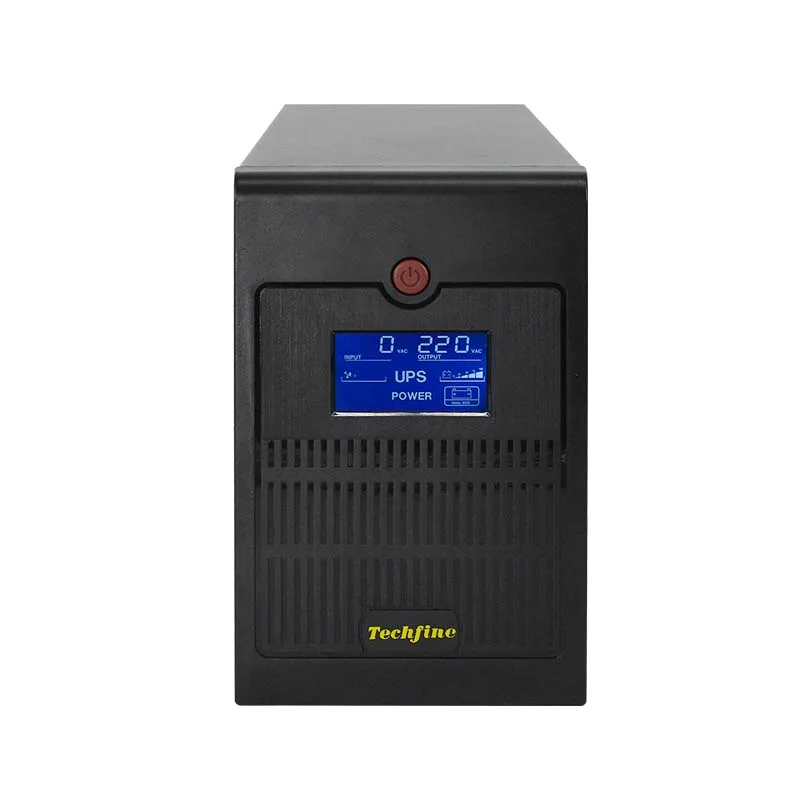

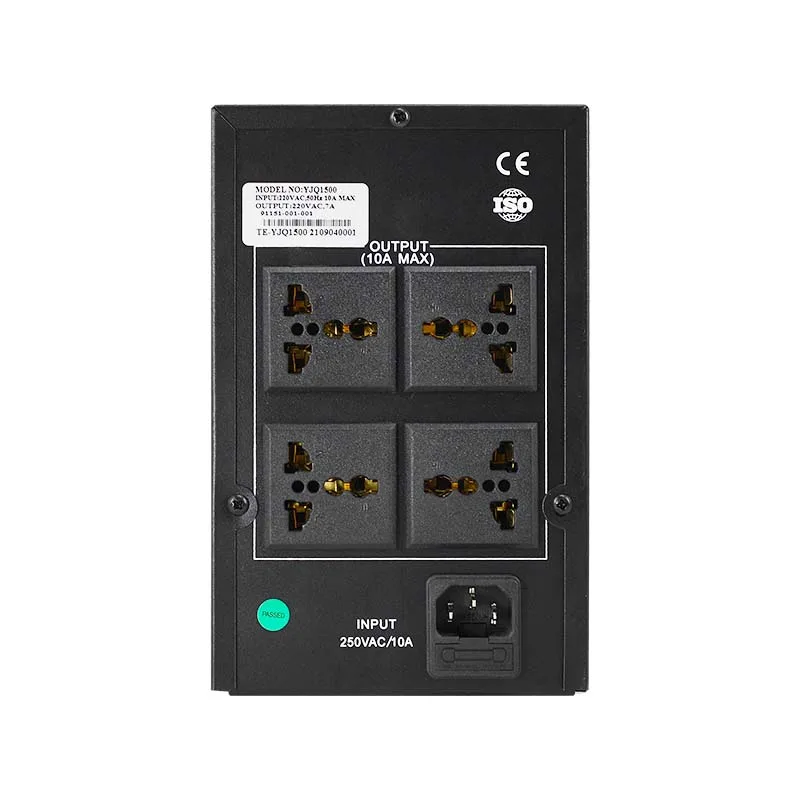

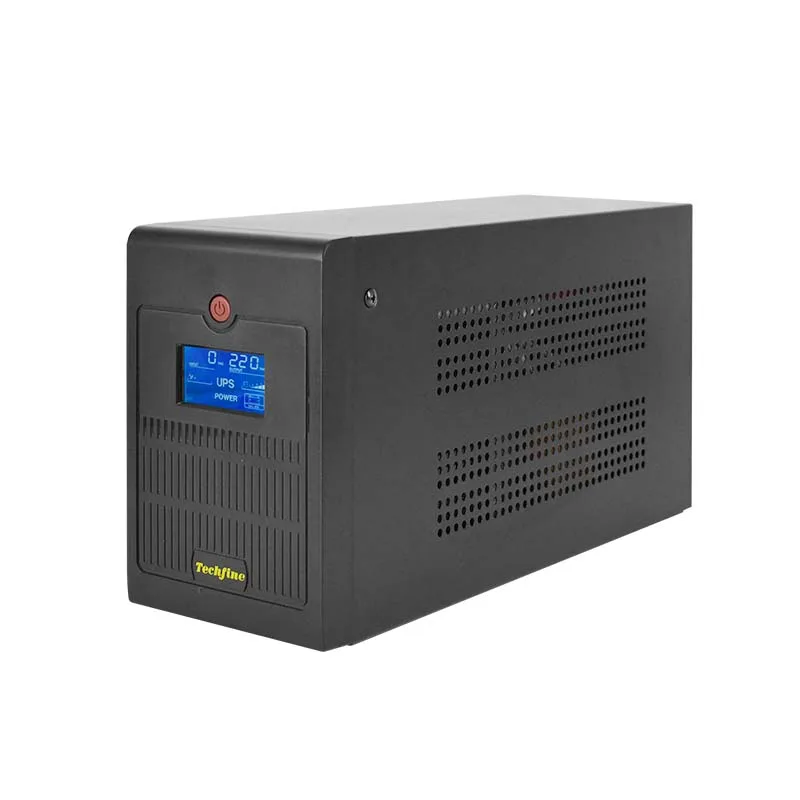

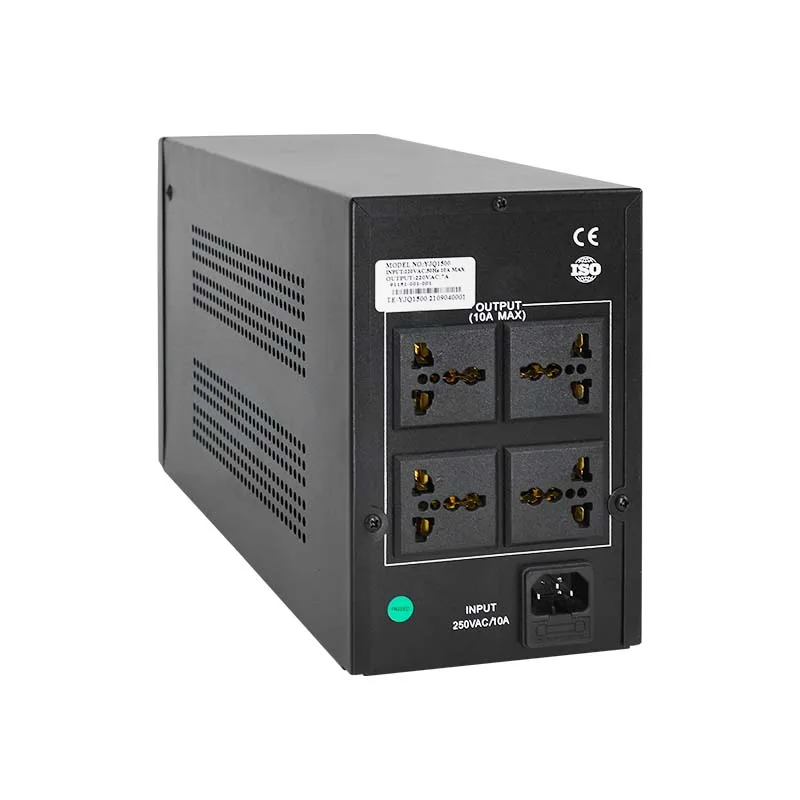

1500VA 1.5KVA UPS Nobreak Back Up Power Line Interactive UPS Office Use Smart UPS 1500va
Tips:
Send InquiryProduct Highlights
Key Features
01
Product Description
Feature： 1.Simple, compact and generous machine appearance 2. Super wide mains input range 3. Mains restart function 4. Output modified sine wave 5. Automatic charge in off-mode 6 Cold start function 7. Compatible generators
Specifications
| Model | 1500VA |
|---|---|
| Capacity | 1500VA /900W |
| Input | |
| Voltage | 220VAC |
| AC Mains Input Voltage Range | 145-280 VAC (same as AC mains) |
| Frequency | 50 Hz |
| Output | |
| Voltage Range(Battery Mode) | ±10% |
| Frequency Range(Battery Mode) | 50 Hz ±1 Hz |
| Transfer Time | ＜6ms |
| Waveform(Battery) | Modified sine wave |
| Battery | |
| Battery Type & Quantity | 12V 9Ah x 2 |
| Battery Charging Tiime | 6 hours charge to 90% |
| LED Indicators | |
| AC Mode | Green light |
| Battery Mode | Red light flash |
| Audible Alarm | |
| Battery Mode | Alarm beeps every six seconds |
| Low Battery | Alarm beeps every second |
| Overload | Alarm beeps twice every second |
| Fault | Alarm beeps continuously |
| Protection Function | |
| Comprehensive Protection | Overload, deep discharge and over-charge protection |
| Environment | |
| Temperature And Humidity | Relative humidity 0-90% and temperature 0- 40°C (No-condensing) |
| Noise | less than 40dB at one meter distance |
| Physical Function | |
| Dimensions (mm) | 360*122*195 |
| Net Weight (kgs) | 11.7 |
