Modular C&I ESSHybrid ESS125kW
100kW-2.5MW C&I ESS Solution
100/125kW PCS + 200/250kW MPPT +80kW AC-DC BOS-B Pro-A3 Battey, 257kWh | 314Ah
100/125kW PCS + 200/250kW MPPT +80kW AC-DC
BOS-B Pro-A3 Battey, 257kWh314Ah
Downloads
Overview
100kW-2.5MW C&I ESS Solution 100/125kW PCS + 200/250kW MPPT +80kW AC-DC BOS-B Pro-A3 Battey, 257kWh | 314Ah
Product Highlights
Features
01

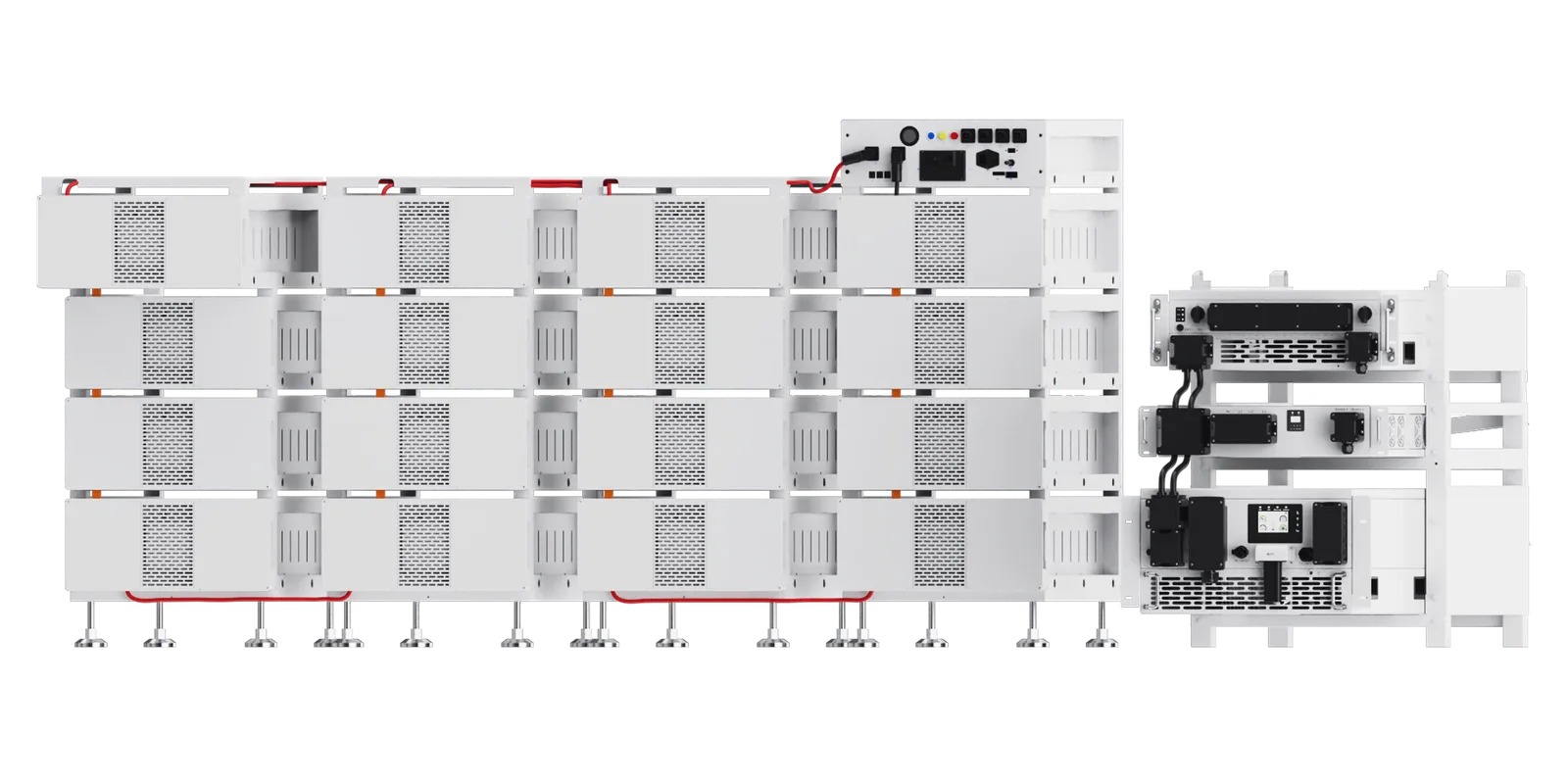

0 ms Seamless Transfer: Online UPS architecture ensures uninterrupted power supply with true 0 ms transfer time.
02

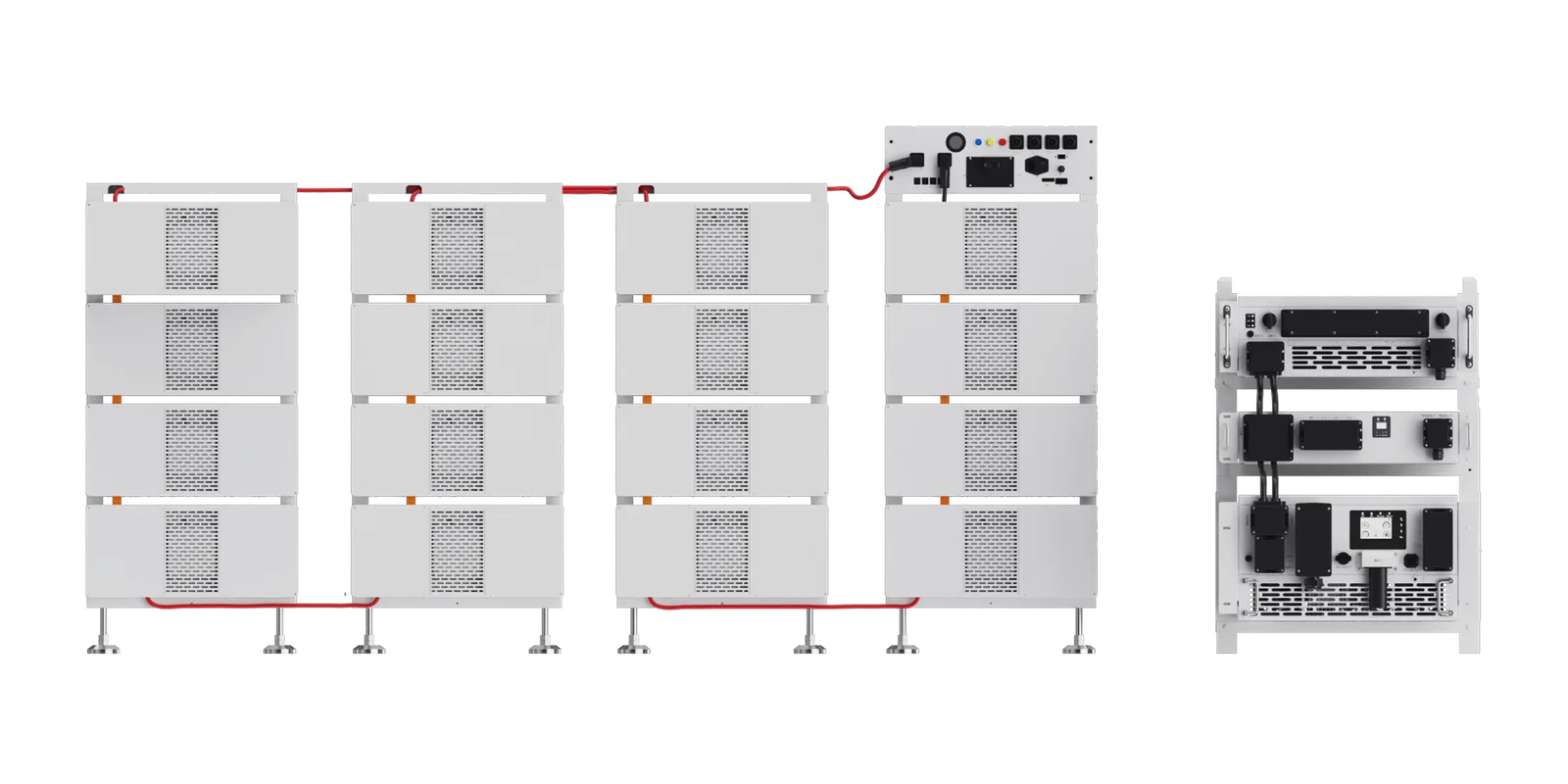

Strong Overload Capability: Supports 2 × peak power output for 15s in off-grid mode, ensuring reliable startup of heavy loads.
03
Flexible Expansion: 100/125kW PCS units enable system scalability up to 2.5 MW.
04
Large Energy Storage: Up to 257 kWh per battery cluster, supporting up to 16 clusters per PCS.
05
Retrofits Made Easy: Supports both DC and AC coupling, for flexible retrofits and system expansions.
06
Integrated EMS: Supports zero-export, TOU optimization, peak shaving and demand management.
07
Flexible Control: Local touchscreen control and remote monitoring via Deye Cloud.
08
Advanced Battery Safety: Combines LiFePO₄ battery technology with integrated module-level aerosol fire suppression for enhanced battery safety.
Specifications
MPPT Module SUN-MPPT-L01-EU-AM8 SUN-MPPT-L01-EU-AM10
| MPPT Module | SUN-MPPT-L01-EU-AM8 | SUN-MPPT-L01-EU-AM10 |
|---|---|---|
| PV String Input Data | ||
| Max. PV access power(kW) | 200 | 250 |
| Max. PV Input Power(kW) | 160 | 200 |
| Max. PV Input Voltage (V) | 800 | |
| Start-up Voltage (V) | 200 | |
| MPPT Voltage Range (V) | 180-750 | |
| Full Load MPPT Voltage Range（V） | 450-750 | |
| Rated PV Input Voltage (V) | 600 | |
| Max. Operating PV Input Current (A) | 40+40+40+40+40+40+40+40 | 40+40+40+40+40+40+40+40+40+40 |
| Max. Input Short-Circuit Current (A) | 60+60+60+60+60+60+60+60 | 60+60+60+60+60+60+60+60+60+60 |
| No. of MPP Trackers | 8 | 10 |
| Efficiency | ||
| Max. Efficiency | >99% | |
| MPPT Efficiency | >99.9% | |
| Equipment Protection | ||
| DC input reverse protection | YES | |
| DC ARC protection | Optional | |
| Anti-PID(Potential Induced Degradation) | Optional | |
| DC Input Switch | YES | |
| Surge Protection Level | TYPE II | |
| General Data | ||
| Ingress Protection(IP) Rating | IP65 | |
| Over Voltage Category | OVC II | |
| Cabinet Size[W×H×D] (mm) | 543x198x700 | 543x198x720 |
| Weight (kg) | 41.75 | 50.6 |
| Type Of Cooling | Intelligent air cooling | |
| Safety EMC/Standard | IEC/EN 62109-1 | |
| DC Output Current(A) | ||
| DC Output VoltageRange ( V ) | 630-1000 | |
| Max. DCOutput Current ( A ) | 200 | 250 |
PCS Model
| PCS Model | SUN-100K-PCS01HP3 | SUN-125K-PCS01HP3 |
|---|---|---|
| Battery Data | ||
| Battery Type | Lithium-ion | |
| Battery Voltage Range (V) | 630-1000 | |
| Max. Charging Current (A) | 175 | 200 |
| Max. Discharging Current (A) | 175 | 200 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |
| Number of Battery Input | 1 | |
| DC Input Data | ||
| DC Input Voltage Range(V) | 630-1000 | |
| Max. DC Input Current(A) | 200 | |
| AC Input/Output Data | ||
| Rated AC Input/Output Active Power (kW) | 100 | 125 |
| Max. AC Input/Output Apparent Power (kVA) | 110 | 125 |
| Rated AC Input/Output Current (A) | 151.6/145 | 189.4/181.2 |
| Max. AC Input/Output Current (A) | 166.7/159.5 | 189.4/181.2 |
| Rated Input/Output Voltage/Range(V) | 220/380, 230/400 0.85Un-1.1Un | |
| Grid Connection Form | 3L+N+PE | |
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | |
| Power Factor Adjustment Range | -1~1 | |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |
| DC Injection Current | <0.5% In | |
| Efficiency | ||
| Max. Efficiency | 98.5% | |
| Euro Efficiency | 97.8% | |
| Equipment Protection | ||
| AC Output Overcurrent Protection, AC Output Overvoltage Protection,AC Output Short Circuit Protection, Thermal Protection, Anti - islanding Protection,Insulation Impedance Detection,Residual Current Detection | ||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |
| Interface | ||
| LCD/LED display | LCD | |
| Communication Interface | WIFI, RS485, CAN, Meter | |
| General Data | ||
| Operating Temperature Range(℃) | -40℃to -60℃,>45℃ Derating | |
| Permissible Ambient Humidity | 0-95% | |
| Permissible Altitude | 4000m | |
| Noise | <75dB | |
| Ingress Protection(IP) Rating | IP 65(PCS Module) | |
| Cabinet Size[W×H×D] (mm) | 543x310x775（Excluding connectors and brackets） | |
| Weight (kg) | 81.86 | |
| Inverter Topology | Non-Isolated | |
| Over Voltage Category | OVC II(DC), OVC III(AC) | |
| Type of Cooling | Intelligent Air Cooling | |
| Warranty | 5 Years/10 Yearsthe Warranty Period Depends the Final Installation Site of Inverter,More Info Please Refer to Warranty Policy | |
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G99,VDE-AR-N 4105 | |
| Safety/EMC Standard | IEC/EN 62477-1 | |
| Model | BOS-B Pro-A3 |
|---|---|
| Main Parameter | |
| Battery Module Energy ( kWh ) | 16.08 |
| Battery Module Nominal Voltage ( V ) | 51.2 |
| Battery Module Capacity ( Ah ) | 314 |
| Module Weight Approximate ( kg ) | 126 |
| Battery Module Qty In Series ( Optional ) | 5~16 |
| Matching Mode | PCS:14-16 units for PCS on-grid applications, 15-16 units for PCS off-grid applications |
| PCS + MPPT: 16units (on/off-grid) for MPPT Open-Circuit Voltage ≤800V;15 units (on/off-grid) for MPPT Open-Circuit Voltage ≤750V; 14units (on-grid) for MPPT Open-Circuit Voltage ≤ 700V | |
| Max.System Nominal Voltage ( V ) | 819.2 |
| Max.System Energy ( kWh ) | 257.23 |
| Max.System Usable Energy ( kWh ) | 231.51 |
| Max.Charge/Discharge Current ( A) | 180 |
| Other Parameter | |
| Operating Temperature ( ℃ ) | Charge ：0 ~ 55 Discharge ：-20 ~ 55 |
| Storage Temperature ( ℃ ) | 0 ~ 35 |
| Thermal Management | Smart fan cooling |
| LCD Display | SOC / Fault Code |
| Status Indicator | Yellow : Battery High Voltage Power On Red : Battery System Alarm |
| Communication Port | TCP / RS485 / CAN |
| Communication With BMS | CAN |
| Humidity | 5% ~ 85% |
| Altitude | ≤3000m |
| IP Rating of Enclosure | IP20 |
| Noise ( dB ) | TBD |
| System Dimension ( W × H × D, mm ) | 2150 × 1305 × 800 |
| System Weight Approximate ( kg ) | 2240 |
| Installation Location | Rack Mounted |
| Recommend Depth of Discharge | 90% |
| Cycle Life | 25±2°C, 0.5C / 0.5C, EOL70%≥6000 |
| Warranty Period | 10 years |
| Certification | CE / IEC62619 / IEC62040 / UN38.3 |
AC/DC Module
| AC/DC Module | SUN-80K-CG01-C |
|---|---|
| AC Input | |
| Input Voltage Range | 260Vac ~ 530Vac, 3L+PE |
| Max Input Current(A) | 160 |
| Frequency Range | 45Hz ~ 65Hz |
| Power Factor | ≥0.99 |
| Efficiency | Full load > 96%, peak > 97% |
| THD | <5% |
| DC Output | |
| Output Power(kW) | 80 |
| Voltage Range | 50Vdc ~ 1000Vdc |
| Constant Power Output Voltage Range | 300Vdc ~ 1000Vdc |
| Output Current(A) | 0 ~ 266 |
| Output Current Limiting | 0.3 ~ 266A continuously adjustable |
| Current Sharing | Imbalance < ±5% |
| Voltage Regulation Accuracy | < ±0.5% |
| Current Regulation Accuracy | ≤ ±1% (within 20%~100% rated output load) |
| Operating Environment Conditions | |
| Operating Temperature | -40°C ~ +75°C, derating required above +55°C |
| Relative Humidity | ≤95% RH, non-condensing |
| Cooling Method | Forced air cooling |
| Grid Connection Form | 3L |
| Altitude | ≤2000m, derating required above 2000m |
