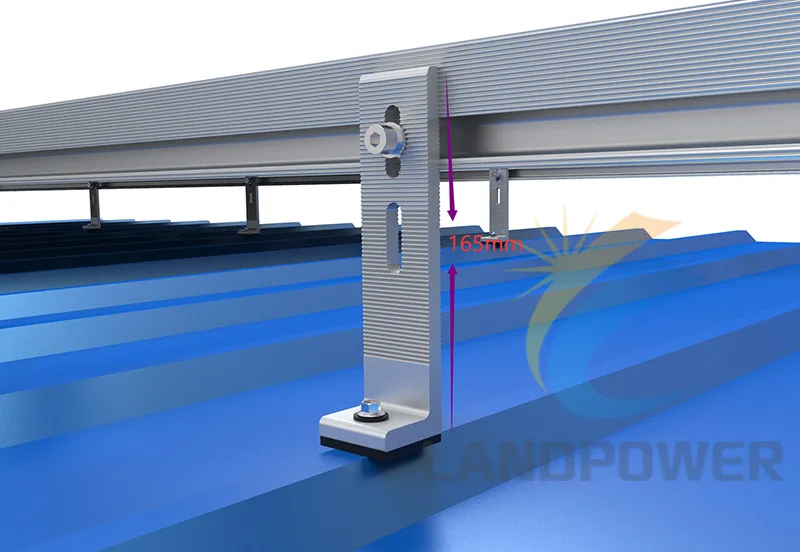

Solar L foot Kit with height of 165mm
The Solar L Feet (L Brackets) feature a 165mm height for increased solar panel-to-roof clearance, enhancing ventilation to improve efficiency and reduce fire risks from overheating. Made from durable 6005-T5 aluminum, each bracket includes an EPDM gasket for waterproofing and comes with self-tapping screws for both metal and wood roofs, ensuring a secure and corrosion-resistant installation.
Item No
LP-LF-165
MOQ
1PCS
Color
Silver/Black
Lead Time
7-15 days
Product Details

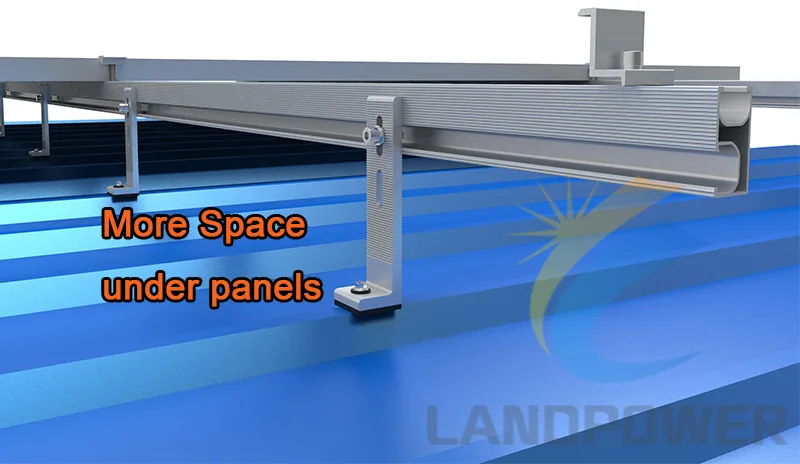

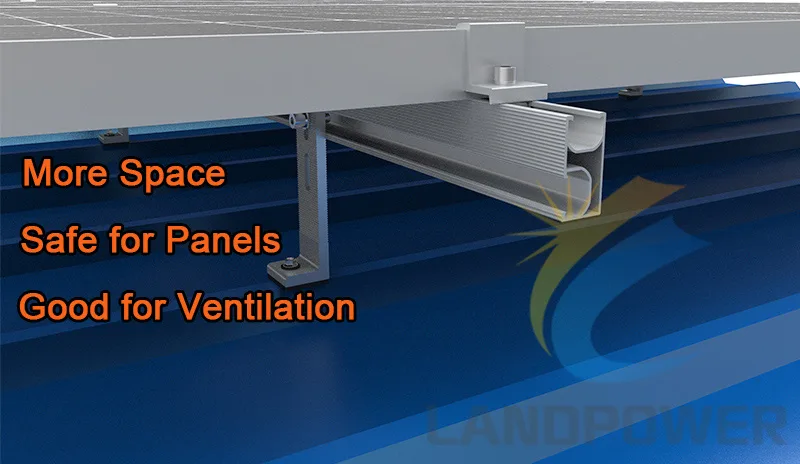

The L Feet (L Bracket) stands out in the solar mounting industry with its 165mm height, a key design advantage that increases the clearance between solar panels and the roof. This elevated spacing enhances airflow beneath the panels, improving ventilation to boost solar efficiency by reducing heat buildup. Better ventilation also minimizes fire risks associated with overheating, ensuring a safer and more durable installation.
TECHNICAL INFORMATION Application: Metal Roof Mount
Function: Connecting rail and roof Height ： 165mm Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel 304, EPDM
Color: Silver, Black or Customized Anti-corrosive: Anodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life
Premium Materials & Protection:
Constructed from high-strength aluminum alloy 6005-T5, offering excellent corrosion resistance and structural stability.
Features an integrated EPDM gasket at the base to prevent water ingress, protecting the roof from leaks.
Includes self-tapping screws compatible with both metal (steel) and wood substrates, simplifying installation.

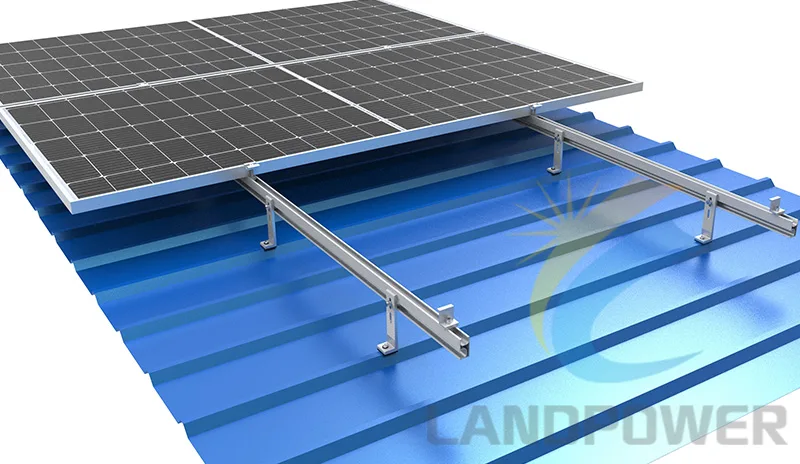

Ideal for rooftop solar arrays, our L Feet provide a reliable, efficient, and safety-focused solution for optimal system performance.

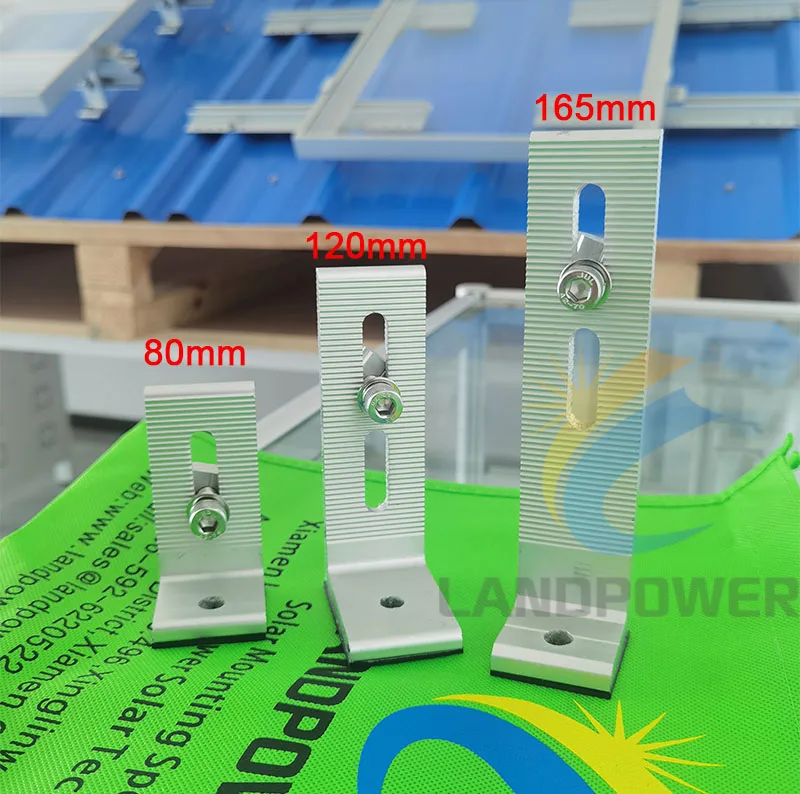

There are also different height options:
Key Selling Points Emphasized:
Specifications
| Application | Metal Roof Mount |
|---|
