Angle adjustable solar mounting
The Adjustable tilt angle solar mounting is consist of only two component,it is extreme simple solution for almost framed solar panel,and the angle can be adjustable for different location and seasons.
Item No
LP-AD-T01
MOQ
1 PCS
Color
Silver,Black
Lead Time
7-15 days
Product Details
The Angle adjustable solar mounting is easy and simple structure to mount single panel,it allow tilt of angle from 0-15 degree,15-30 degree and 30-60 degree. The adjustable solar panel mounting brackets for off-grid solar systems. Widely used on RV, marine, trailer, camper, boat, marine, flat roofs, ground, garages, motorhome, shed or other flat surfaces.
TECHNICAL INFORMATION
Install site ： Flat Roof ,Trapezoidal Roof,Corrugated Roof
Tilt Angle ： Flushed with the roof （ 10~60 deg ）
Building Height ： Up to 20 m
Max Wind Speed ： <60m/s
Snow Load ： <1.4KN/m2
Standard ： EN 1090, AS/NZS 1170 and other international Standard
Material ： Aluminum alloy Al6005-T5& Stainless steel 304 (A2),EPDM
Color: Natural or Customized
Anticorrosive: Anodized aluminum & stainless steel
Warranty ： 12 years warranty and twenty- year service life

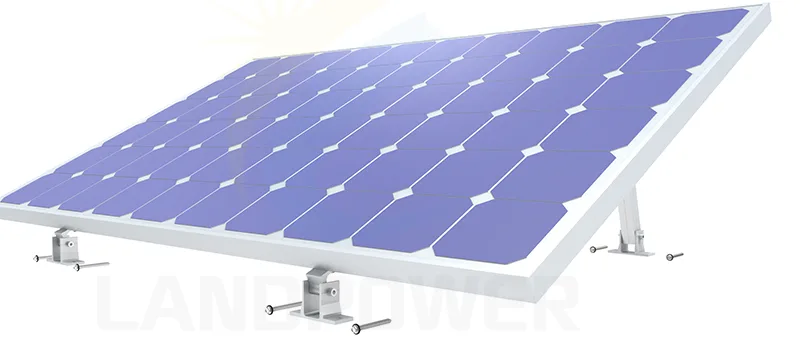

There are just only two main components as below:

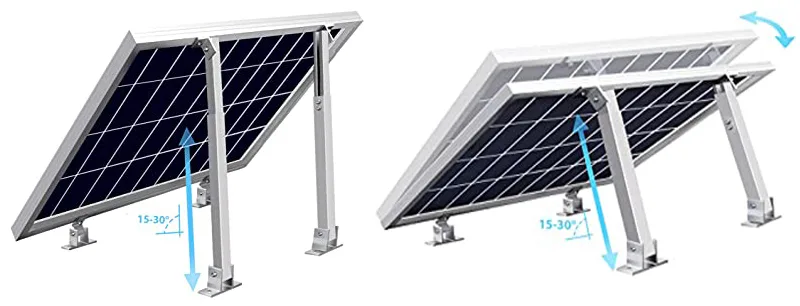

And the tilt angles are adjustable, angle from 0-15 degree,15-30 degree and 30-60 degree,15-30 degree example as below:

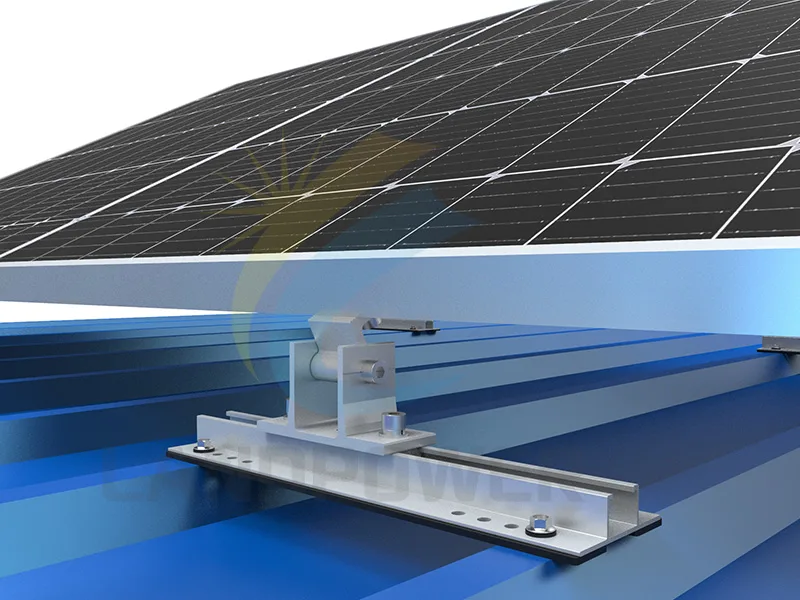

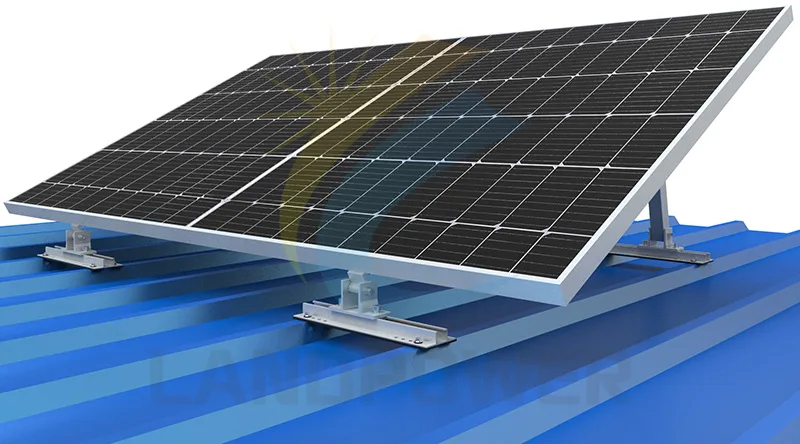

By adding Mini Rail,the tilt angle mounting can be widely used on metal roof like trapezoidal roof and corrugated roof,as show below:

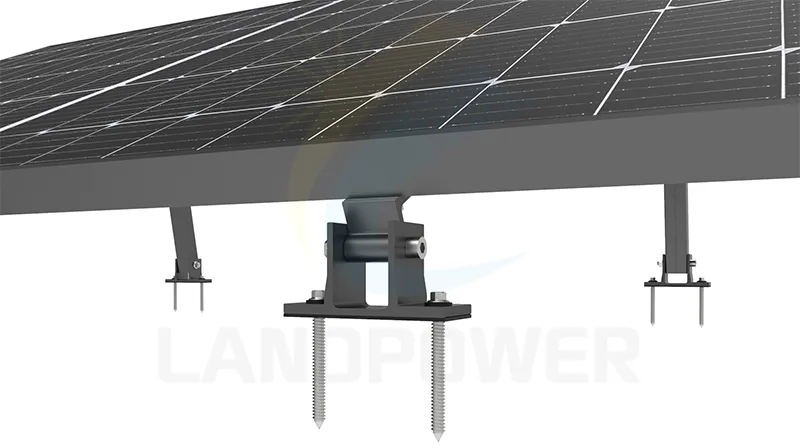

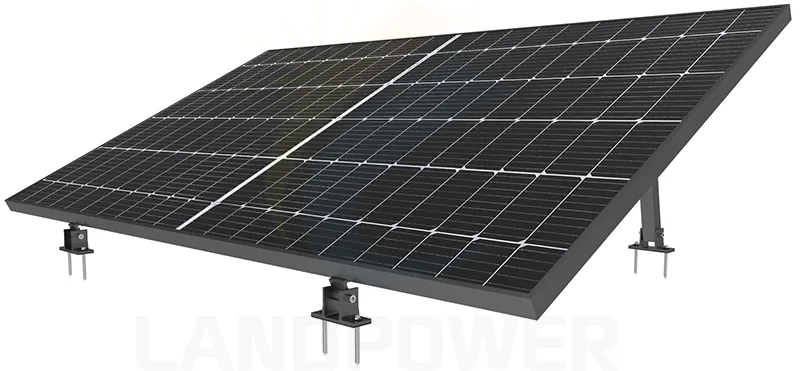

The tilt angle structure can be anodized with black colour,which make the mounting with superior aesthetics:
