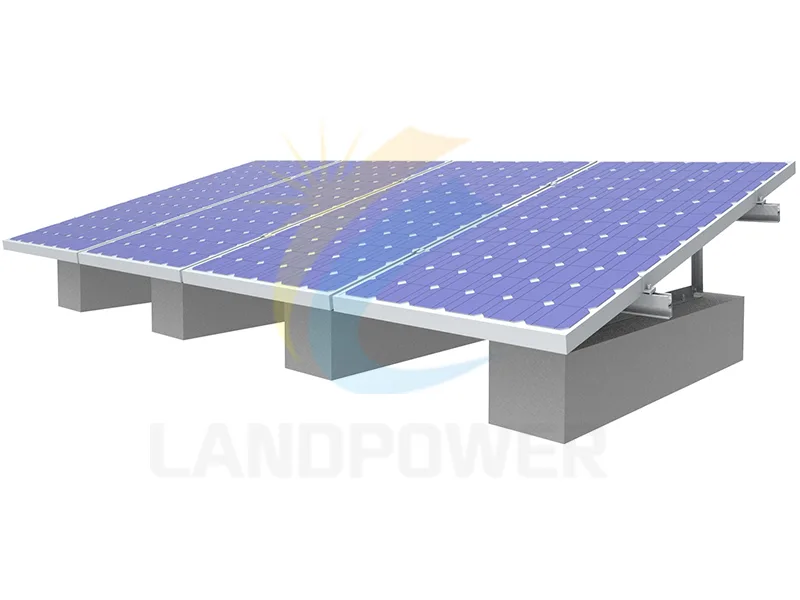

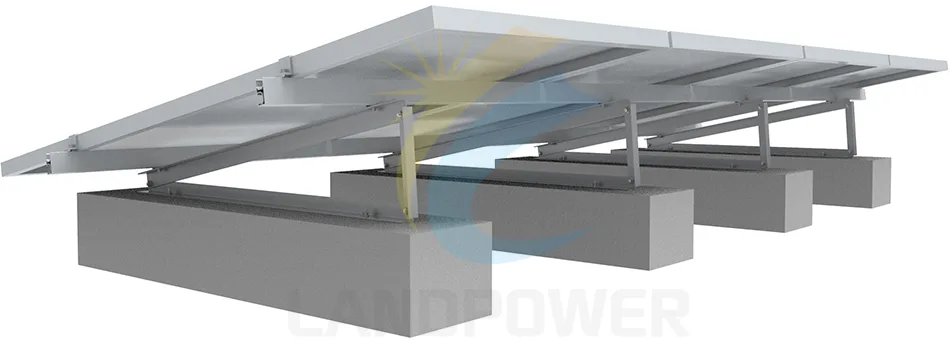

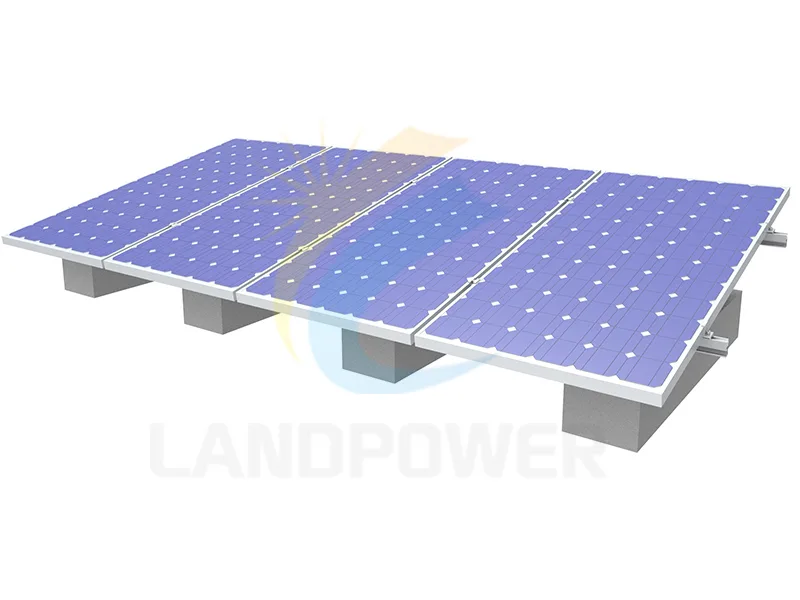

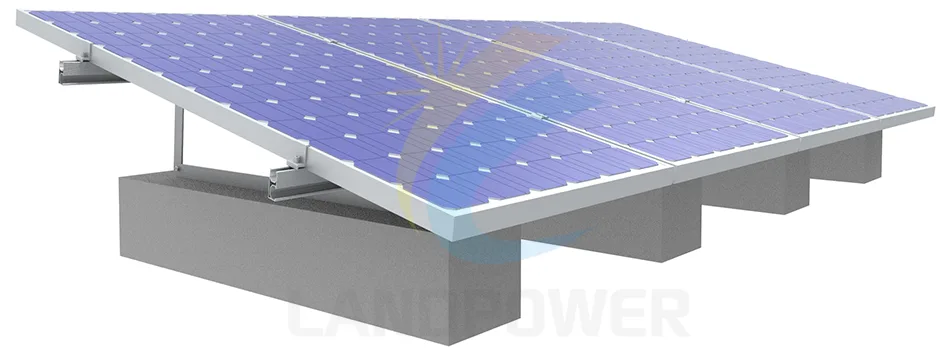

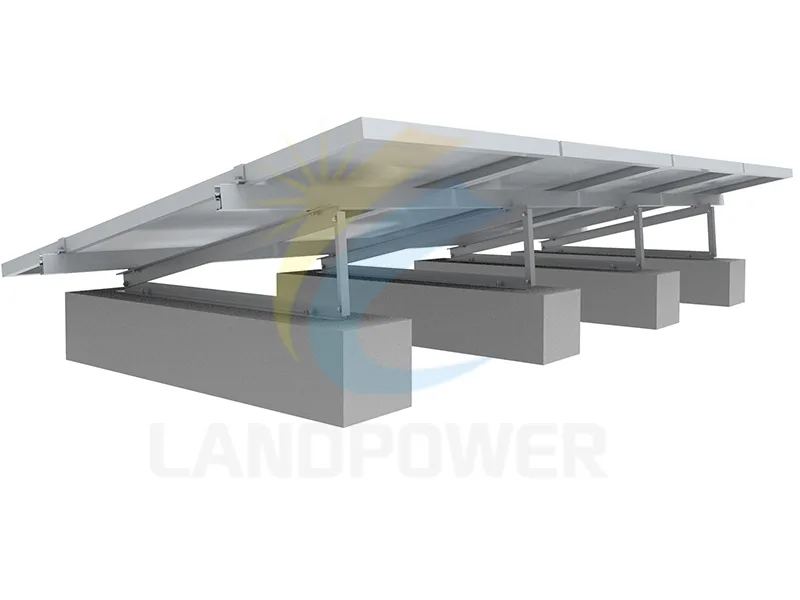

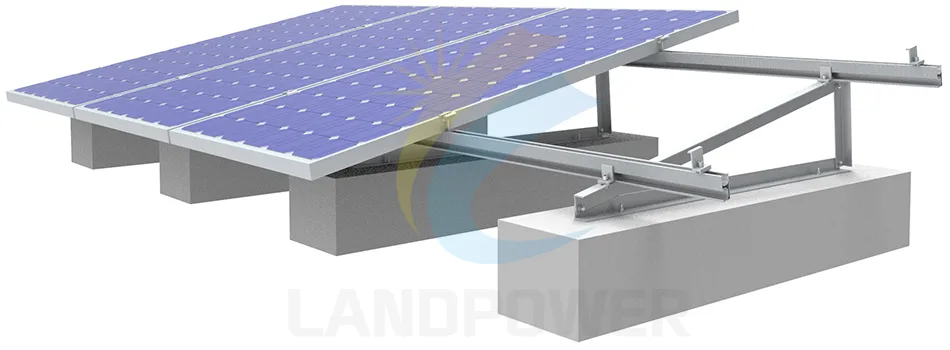

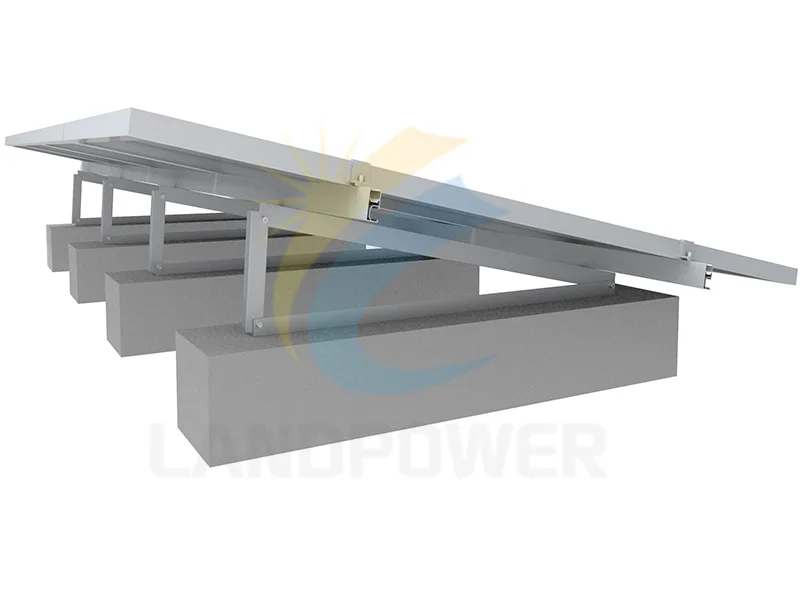

Triangle Solar Mounting Structure
Triangle Roof Solar Mounting System is simple mounting systems with just aluminium tripod,mid clamp,end clamp and rail,it is used in flat roof and trapezoidal roof and allows tilt up ideal angle on roofs,and they are competitive on price.
Item No
LP-TFR-01
MOQ
1 PCS
Color
Black,Silver
Lead Time
7-15 days
Product Details
T he Triangle Solar Mounting Structure is simple and economical mounting bracket for almost all the flat roof and trapezoidal sheet metal roofs. The tripod mounting is pre-assembled with few components.it can be made fixed angle according to projects,and they are flexible on fixing on roofs by using loose ballast or roof attachments.
TECHNICAL INFORMATION
Install Site: Flat Roof or Trapezoidal Metal Roof
Tilt Angle: 5 - 6 0 degree
Building Height: Up to 20m
Max Wind Speed: <60m/s
Standard: AS/NZS 1170, EN 1090
Material: High Class Aluminum alloy Al 6005 T5 and Stainless Steel 304
Color: Natural and Customized
Warranty: 12 years and 25 years lifespan
Details of The Tripod Solar Roof Mounting Structure
There are updated triangle roof solar mounting systems and it allows to set MultiAngle on the triangle,please click here to learn more about it: Adjustable(MultiAngle) Solar Panel Mounting Structure
