Solar Panel End Clamp Kit

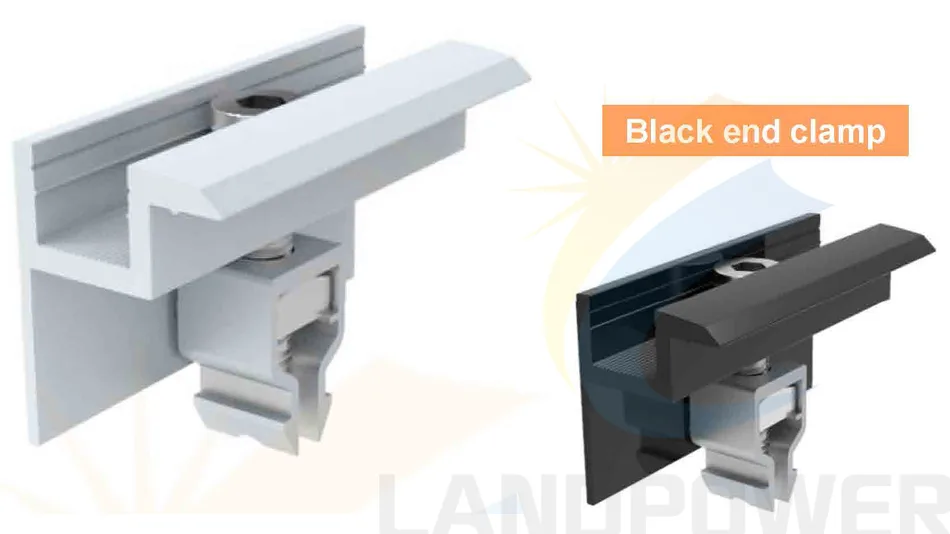

The End Clamp are customized in color both silver or black, assembled with 304 stainless steel, the material is aluminum 6005 T5, click-in design for most of European mounting rail.
Item No
LP-EN-02
MOQ
1PCS
Color
Black,Silver
Lead Time
7-15 days
Product Details

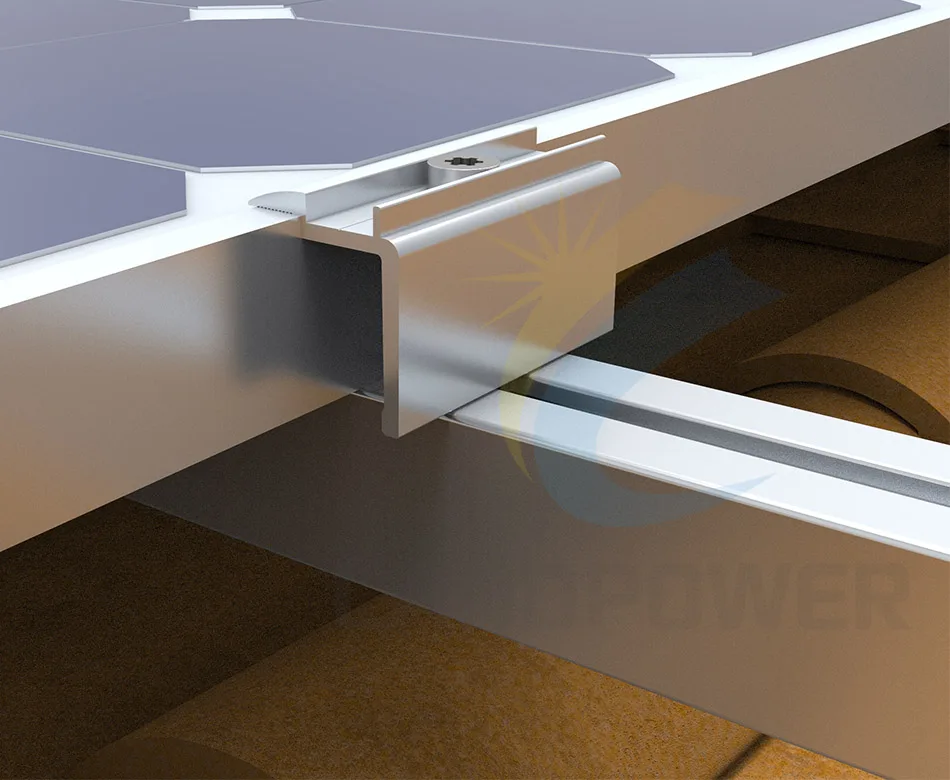

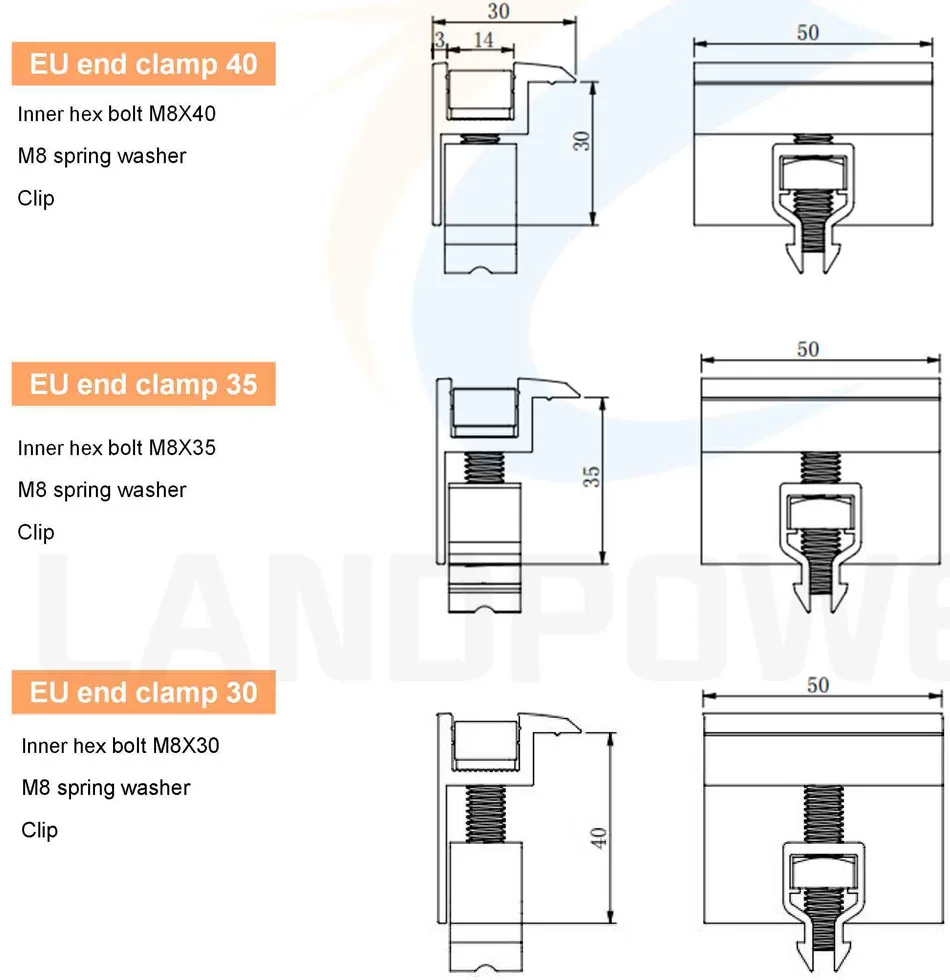

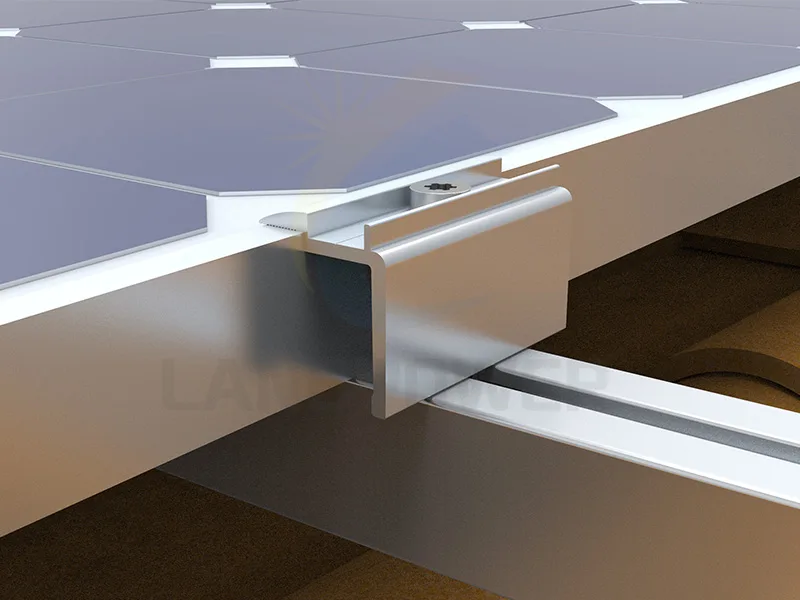

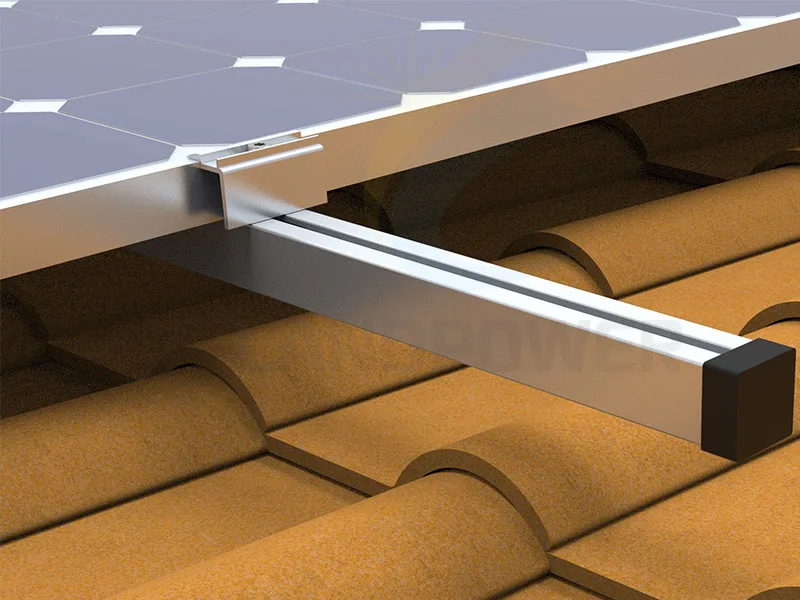

The End Clamp are click-in design for 40*40 mounting rail, it fast and easy to click into rail. With high strength aluminum 6005 T5, they can be silver and blacked anodized, with customized length. The end clamp kit assembled with 304 stainless steel fasteners; the end clamp is compatible with most European solar mounting rail.
TECHNICAL INFORMATION Application :Roof Mount, Ground Mount, Mini Rial etc Length ： Customized Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2(304)
Color: Silver, Black or Customized Anti-corrosive: Anodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life
Specifications
| Application | Roof Mount, Ground Mount, Mini Rial etc |
|---|---|
| Length | Customized |
| Building Height | 20 m |
| Max Wind Speed | <60m/s |
| Snow Load | <1.4KN/m2 |
| Standard | En 1090, AS/NZS 1170 and other international Standard |
| Material | Aluminum 6005-T5& Stainless steel A2(304) |
