Adjustable Solar Panel End Clamp
The Adjustable End Clamp kit is universal clamp for solar panel 30-50mm,it can be black anodized or silver anodized, with stainless steel 304,competitive prices, easy to keep stock.
Item No
LP-AEC-01
MOQ
1PCS
Color
Black,Silver
Lead Time
7-15 days
Product Details
Adjustable Solar Panel End Clamp is universal end clamp for solar panels, it is allow adjustable to clamp panel thickness from 30-35 mm. material is aluminum 6005 T5 with stainless steel 304 bolt. The nut can be customized, and color can be black or silvery anodized.
TECHNICAL INFORMATION Application :Roof Mount, Ground Mount, Mini Rial etc Adjustable Length: 30-50mm
Length ： Customized Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2(304)
Color: Silver, Black or Customized Anti-corrosive: Anodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life

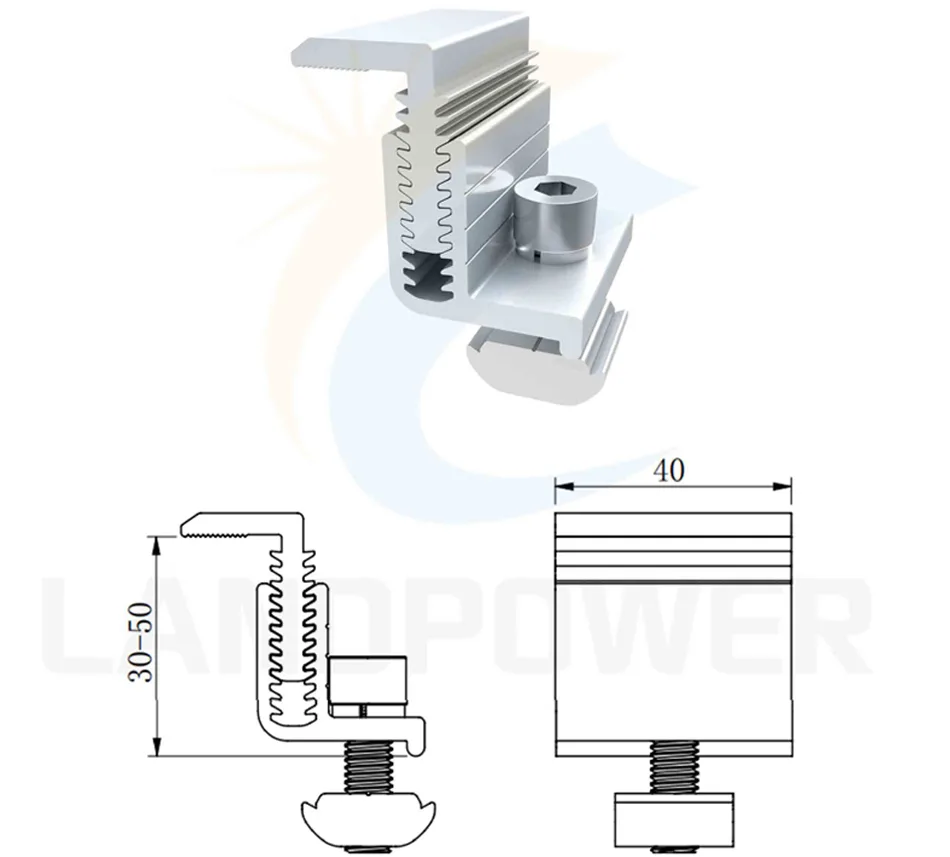

Dimension of Adjustable End Clamp
Specifications
| Application | Roof Mount, Ground Mount, Mini Rial etc |
|---|---|
| Adjustable Length | 30-50mm |
