Aluminium Solar Panel Mounting Rails

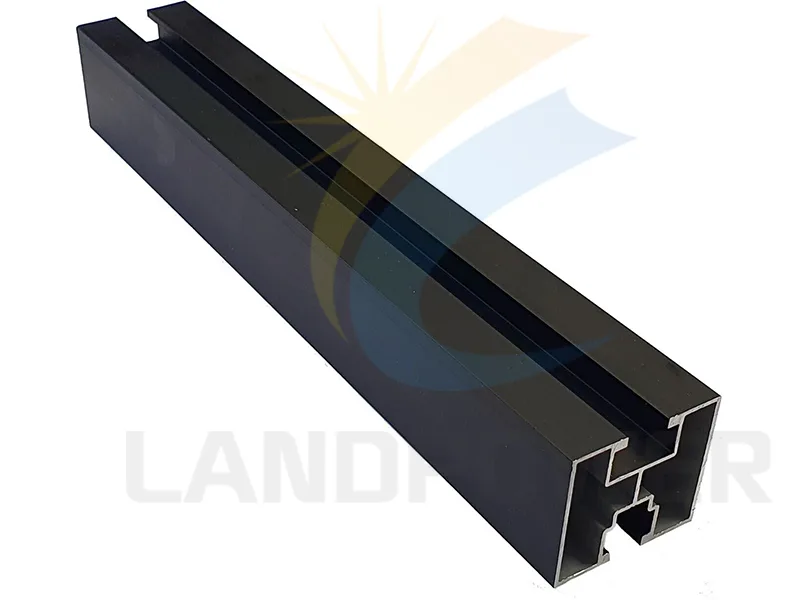

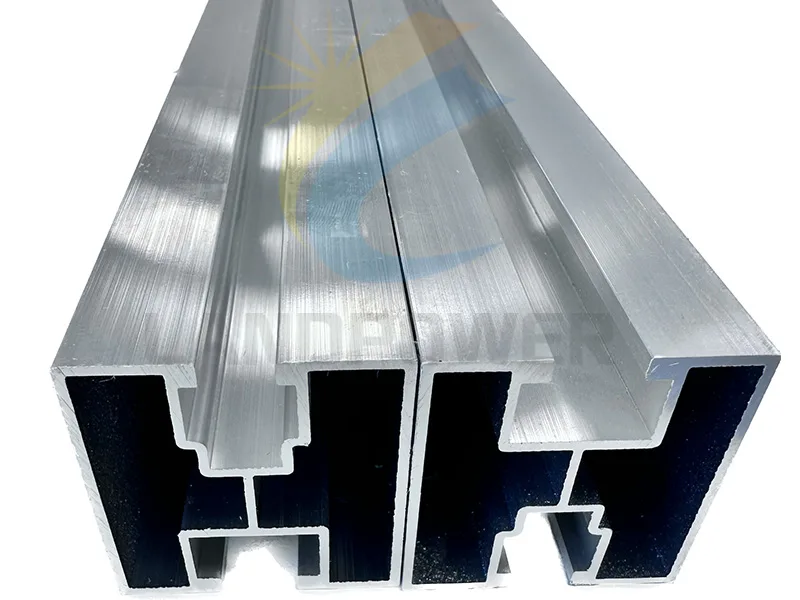

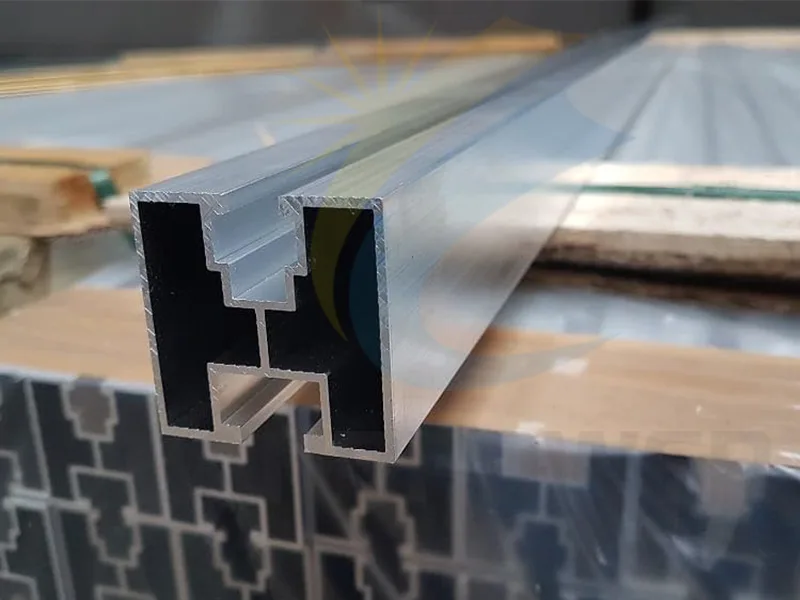

The Aluminum Solar Mounting Rails are with size of 40x40mm, mill finish, silver or black anodized, the length is customized, wildly use in tile roof, metal roof installation in European countries. Suitable of most of sliding nut, simple and easy.
Item No
LP-ER01
MOQ
1 PCS
Color
Silver or Black
Lead Time
7-15 days
Product Details
Solar Mounting Rails is main part of solar mounting structure to hold solar panels tightly on roof, the rails are with size of 40x40mm, surface can be mill finish, sliver anodized or black anodized. The length is customized, suitable most of tile roof installation with adjustable tile roof, mid clamp and universal end clamp. Fast installation with competitive prices.
TECHNICAL INFORMATION
Item Name : Aluminum Solar Mounting Roof Rail Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5
Length: Customized Color: Silver, Black or Customized Anti-corrosive: Anodized aluminum
Warranty ： 12 years warranty and twenty- year service life

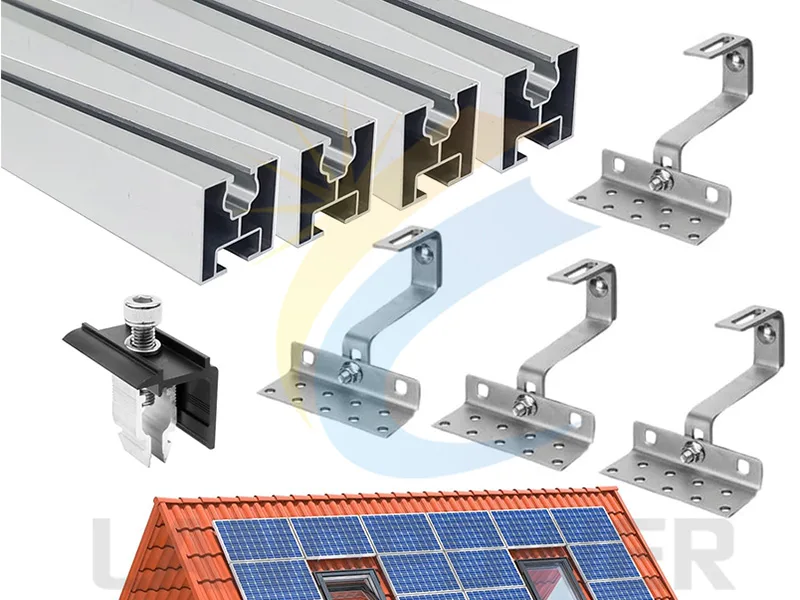

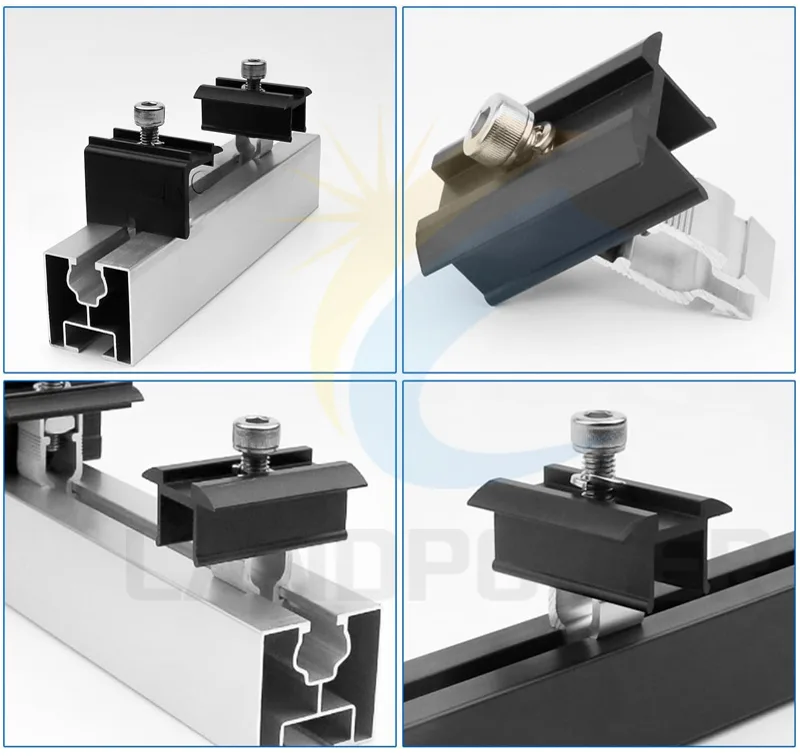

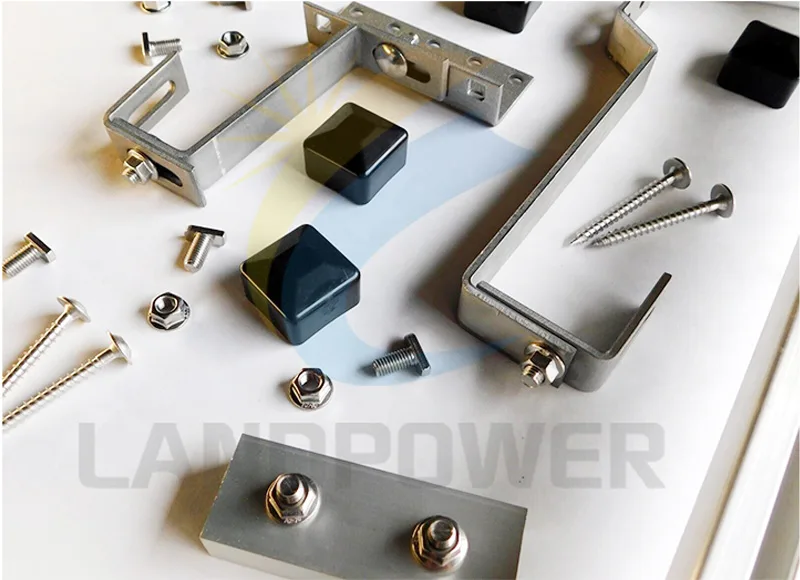

The 40x40 aluminum rail are mostly use in tile roof installation, frequently used with adjustable tile roof hook, universal end clamp , mid clamp, rail cap, you can see below most of items indicated.
We can customize the rails for you need, with 12 years OEM production experiences, we are capable to produce rail in your require with competitive prices
