Flat Roof Solar Mounting Two Row Landscape
The Flat Roof Mounting is design for two row solar panel installation on flat roof,the are with triangle and mid clamp,end clamp etc,less components.Both for residential and commercial installation.
Item No
LP-FR-L2
MOQ
1PCS
Color
Balck,Silver
Lead Time
7-15days
Product Details

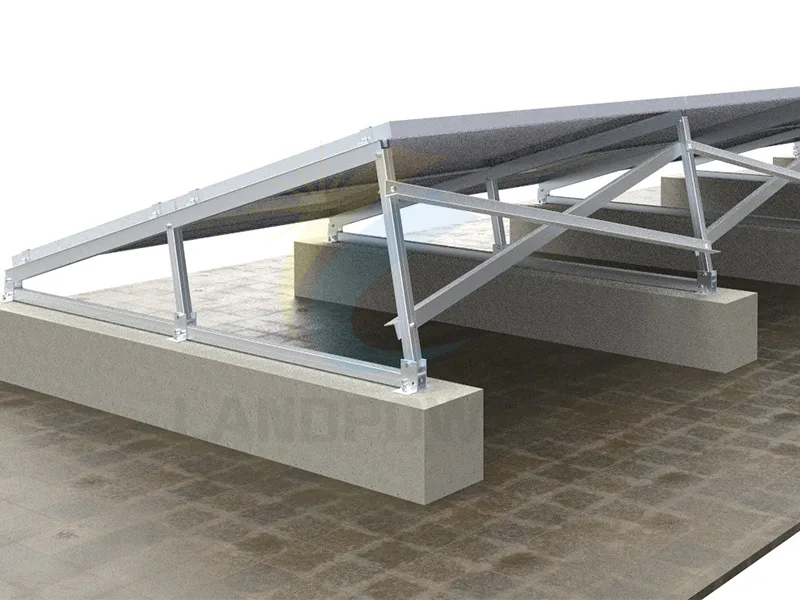

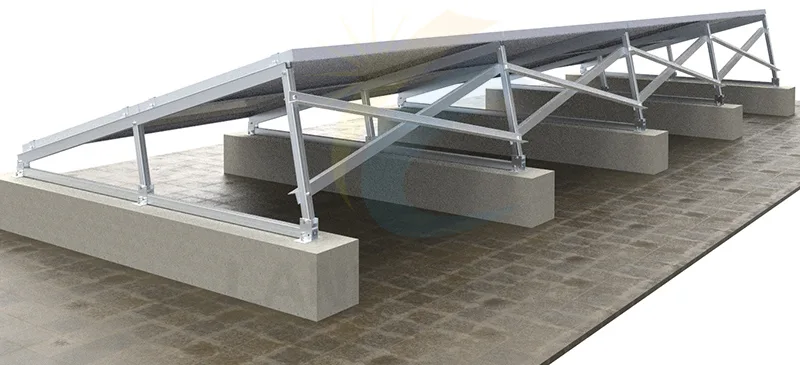

The Flat Roof Solar Mounting is easy tilt up solution for concrete flat roof. It can use for both for residential and commercial solar panel installation,it is economic mounting structure for two row panel installation on flat roof. The connection to roof can be concrete ballasted,or anchor. Fast and easy mounting with competitive cost.
TECHNICAL INFORMATION
Install site ： Flat Roof
Tilt Angle ： 5 ~ 60 deg
Building Height ： Up to 20 m
Max Wind Speed ： <60m/s
Snow Load ： <1.4KN/m2
Standard ： EN 1090, AS/NZS 1170 and other international Standard
Material ： Aluminum alloy Al6005-T5& Stainless steel 304 (A2),EPDM
Color: Natural or Customized
Anticorrosive: Anodized aluminum & stainless steel
Warranty ： 12 years warranty and twenty- year service life
P lease click here for project reference: Flat Roof for Two Row panels
