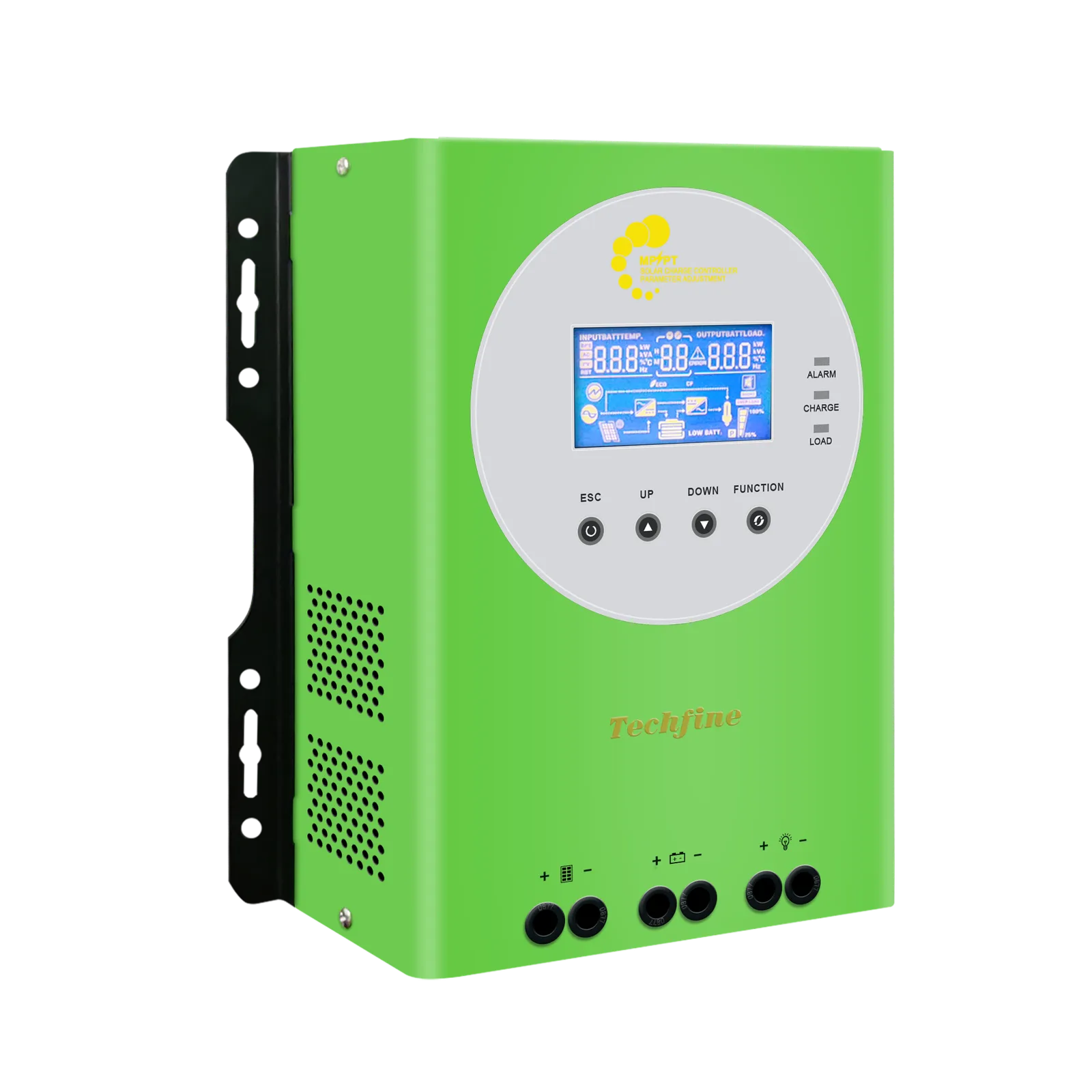

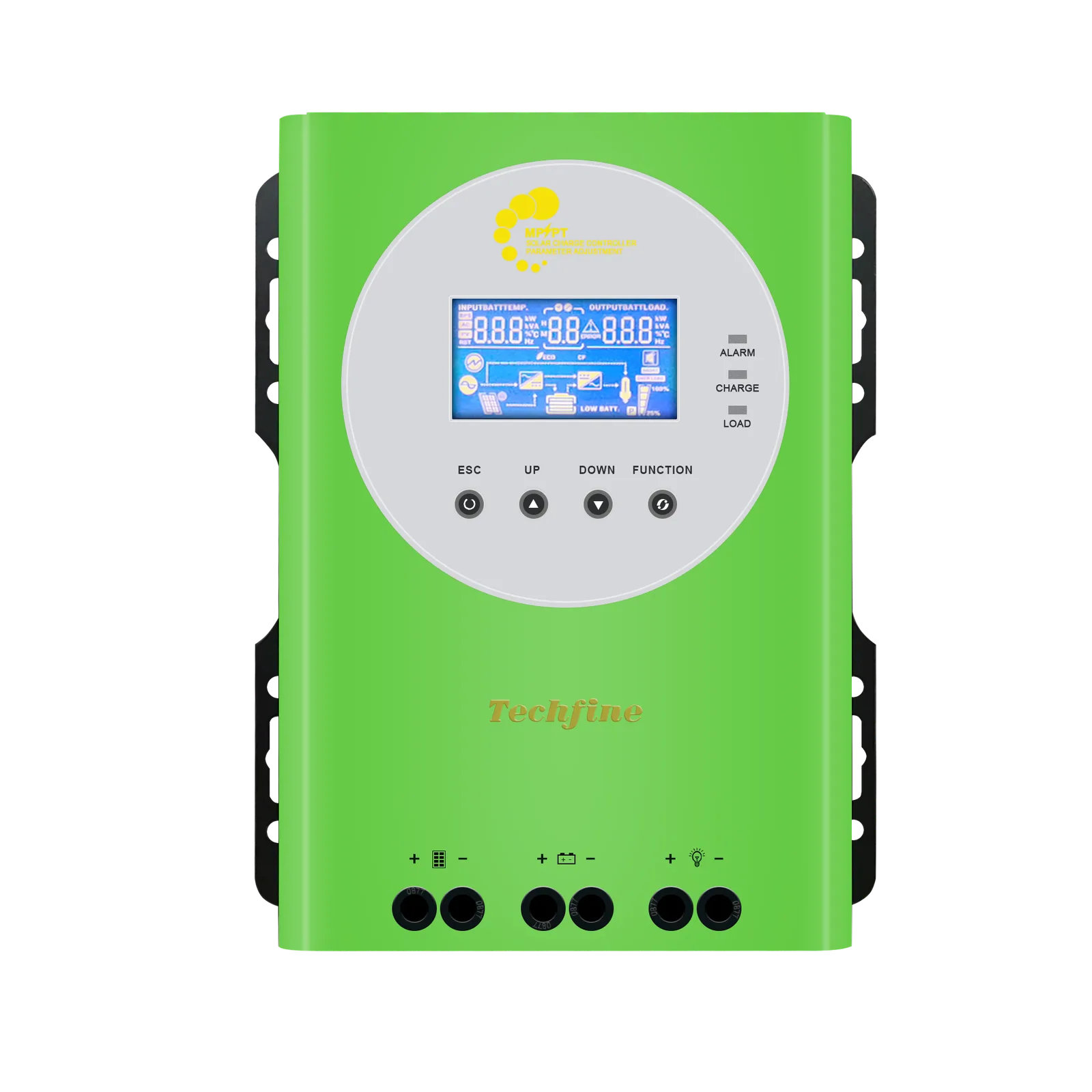

Techfine 60A Solar Charge Controller 96V 6240W PV For Solar System
Solar Charge ControllerModel evidence review

Techfine 60 A 96 V MPPT controller: Verify PV, Battery and Load Configuration

This page organizes the current local source record for a Techfine 60 A 96 V MPPT controller. It preserves the displayed current, voltage and PV-input wording without converting a shared family table into a universal installation claim. The displayed values belong to a controller family or selected member. Confirm the exact model suffix, nameplate, current revision and destination version before fixing an order specification. Use the final RFQ to connect the exact controller to the PV string, battery chemistry/profile, DC load and site protection design.

Current source identity: 60 A 96 V MPPT controller
Displayed current: 60 A
Displayed system-voltage route: 96 V table branch
PV evidence boundary: 250 V Voc and 6,240 W rated PV input in the 96 V/60 A table cell
Build Your RFQ

Original source record is retained as the product route for 60 A 96 V MPPT controller; public table values are treated as source evidence, not a released project design.

Current source parameter table

This table is preserved from the current source record. Read it with the identity, compatibility and document boundaries below; unresolved conflicts are not corrected by assumption.

Model 40A 60A 80A 100A 40A 60A 80A 100A

Model40A60A80A100A40A60A80A100A
System voltage12V/24V/48V(Adaptive)96V
Nominal current40A60A80A100A40A60A80A100A
Charging modeMPPT maximum power point tracking
Applicable battery typeSealed lead acid battery, GEL lead acid battery, open lead acid battery (can also customize parameters for other types of battery charging)
Charging methodThree stages: constant current, constant voltage, floating charge
PV input maximum open circuit voltage (VOC)150V250V
Starting time≤10s
Dynamic response recovery time≤500us
Static power≤4W≤8W≤4W≤8W
MPPT Tracking efficiency≥99.5%
Overall efficiency≥98%
The controller system identifies the operating voltage range12V8～64V72～128V
24V
36V
48V
Operating voltage range of maximum power point12V20～150V128～250V
24V36～150V
36V48～150V
48V64～150V
Solar panel rated input power12V540W800W1040W1300W/
24V1080W1600W2080W2600W
36V1620W2400W3120W3900W
48V2160W3200W4160W5200W
96V/4160W6240W8320W10400W
Load voltageAvailable under 12V/24V working voltage////
Nominal load current40A////
Load control methodNormally on and normally off mode/ time control mode /light control mode/
Load undervoltage protection10.5V*N (N stands for batteries number) Parameters can be adjustable/
Heat-dissipating methodWind cold
DisplayHD LCD backlight display
ProtectionsInput and output over&low-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current protection
Temperature compensation coefficient一3mV/℃/2V
Working temperature一20℃～+50℃
Storage temperature一40℃～+70℃
Accoustic Noise(db)≤50dB
Humidity0～90%RH
Working altitude0～3000M
Communication TypeRS485
Suggested wire specification7AWG/10mm²6AWG/16mm²4AWG/25mm²2AWG/35mm²7AWG/10mm²6AWG/16mm²4AWG/25mm²2AWG/35mm²
Dimension, L×W×H（MM）380*255*160415*311*173380*255*160415*311*173
Net Weight (KG)3.23KG5.61KG5.61KG3.23KG5.61KG

Current document status

The current record has an embedded technical table but no verified model-specific installation pack in this review. Request the current datasheet, manual, wiring diagram, model suffix/nameplate, battery settings and destination compliance evidence before order release.

Current table evidence

Read the exact controller member before sizing a PV string

PV Voc, operating window, nominal battery voltage, current and rated PV watts must stay tied to the same table cell and the coldest site condition.

Displayed controller identity

60 A 96 V MPPT controller is the current route identity. The displayed current is 60 A; confirm the exact suffix and nameplate against the quotation.

System-voltage route

The source describes 96 V table branch. Do not substitute a title voltage, auto-detection label or a different family branch for the selected unit.

PV input evidence

The visible source records 250 V Voc and 6,240 W rated PV input in the 96 V/60 A table cell. Design calculations still need module temperature, series count, Voc tolerance, fuse/disconnect arrangement and the exact manual limit.

Battery and load scope

The tables use battery-type and load-control wording, but actual charge setpoints, BMS permissions, load output rating, cable size and protection remain configuration-specific checks.

Controller RFQ checks

Six checks before finalizing the controller

A complete RFQ separates PV-string limits, battery charging, DC loads, special functions, communications and documents.

Exact model and table cell

Request the full model/suffix, nameplate and current datasheet; identify the one current, voltage and PV-power cell that applies to the quoted unit.

PV string at site temperature

Provide module Voc/Vmp/Imp, series and parallel count, lowest module temperature, cable run and disconnect/fuse topology. Check cold Voc rather than a nominal array voltage.

Battery profile

State chemistry, nominal bank voltage, capacity, BMS limits and required charge/float/equalize settings. Lithium wording or a customizable-profile line is not an approved battery pairing.

Charge and load duty

Confirm charge current, DC load voltage/current, surge, low-voltage disconnect/reconnect, lighting/time controls and any required derating at ambient temperature.

Special functions

Confirm RS485, display, remote monitoring, wind/AC inputs, AC output or street-light functions only from the exact wiring diagram and option schedule.

Evidence and commercial scope

Request manual, wiring, protection/settings schedule, test and destination compliance evidence, supplied accessories, packing, warranty, sample, lead time and substitution controls.

Specification boundaries

Do not let a controller headline replace an electrical design

The controller is one part of the PV, battery, load, cable and protection system; final suitability requires the exact selected unit and installation data.

Source-record boundary

The displayed values belong to a controller family or selected member. Confirm the exact model suffix, nameplate, current revision and destination version before fixing an order specification.

Voc is not operating voltage

PV cold Voc, MPPT operating range and rated PV watts are different checks. A PV array must remain within every applicable exact-model limit under site conditions.

Battery labels are not compatibility approval

Lead-acid, gel, open-battery or lithium wording does not establish setpoints, BMS communication, current limits, temperature rules or warranty coverage for a specific bank.

Protection is system-specific

Controller protection labels do not replace correctly selected breakers/fuses, isolators, SPD, grounding, cable ampacity, enclosure, ventilation and commissioning tests.

Continue the technical review

Turn the controller record into a documented PV-and-battery RFQ

Use the existing sizing and export guidance to assemble the real installation inputs and evidence request.

Battery and backup sizing guide

Record battery voltage, usable energy, charge/discharge limits, DC loads, temperature and reserve before presenting a system result.

Review sizing inputs →

Off-grid solar system planning

Map modules, controller, battery, loads, protection, wiring and commissioning responsibilities into one project scope.

Review system scope →

Techfine controller FAQ

Questions to close before an exact-model quotation

These answers preserve the distinction between the current page record and a verified installation specification.

What current and voltage configuration applies to this 60 A 96 V MPPT controller?

The current source record shows 60 A and 96 V table branch. Confirm the full model/suffix, nameplate and quoted table cell because title wording and shared family tables can differ.

Can the PV string be selected from the controller’s rated PV watts alone?

No. Check cold Voc, MPPT operating window, module electrical data, series/parallel layout, temperature, cable loss and every exact-model input limit before selecting the array.

Does battery-type or lithium wording prove compatibility?

No. Confirm chemistry, nominal voltage, charge/float/equalize settings, current limits, BMS requirements, temperature behavior and the supplier’s exact-model approval in writing.

Which documents should accompany the RFQ?

Request the exact datasheet, manual, wiring diagram, nameplate/model schedule, protection and settings information, supplied option list, destination compliance evidence, warranty and current commercial terms.

Prepare a verified 60 A 96 V MPPT controller RFQ

Send the exact PV module/string design, cold-site Voc, battery chemistry and settings, DC load duty, installation environment, special-function requirement and destination evidence list.
