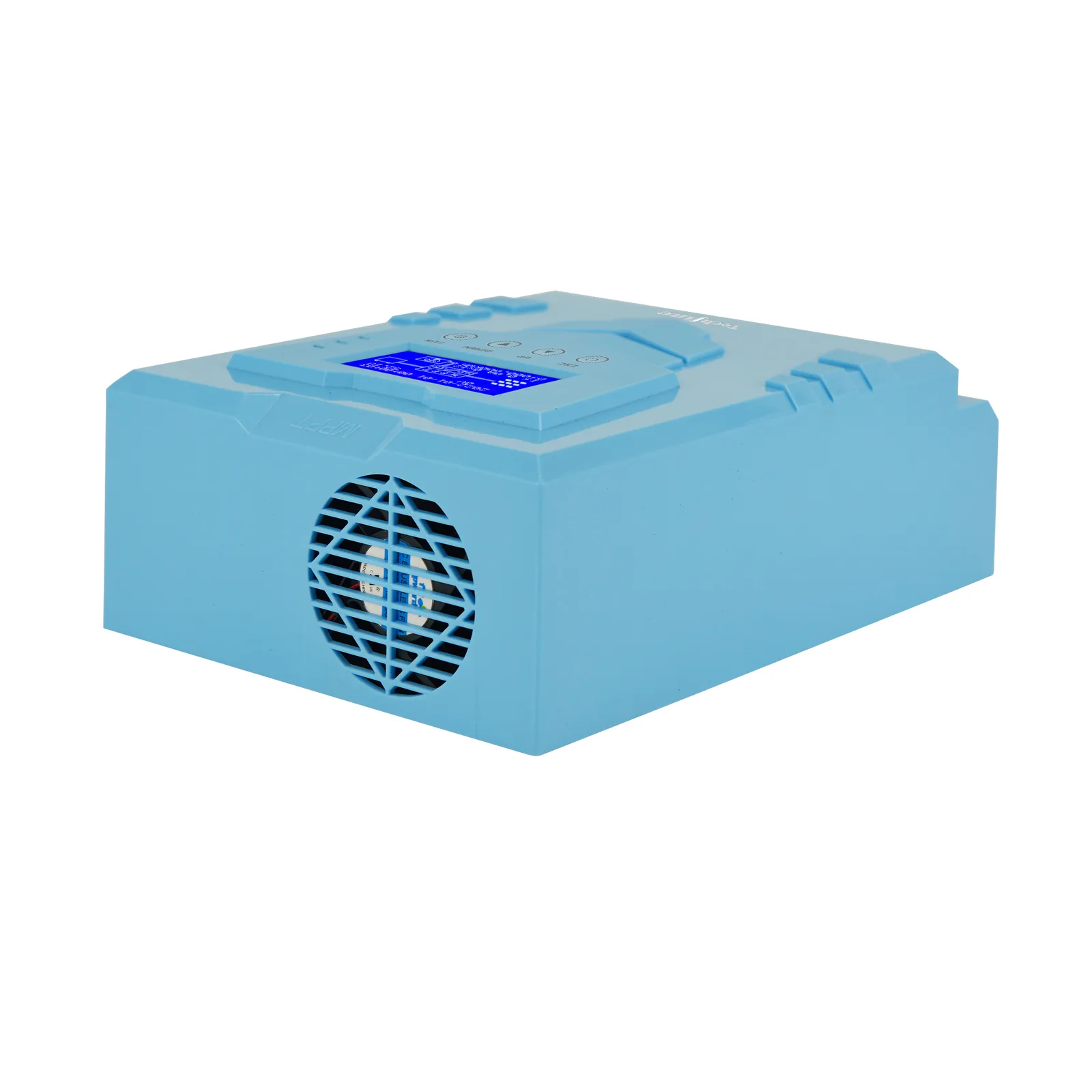

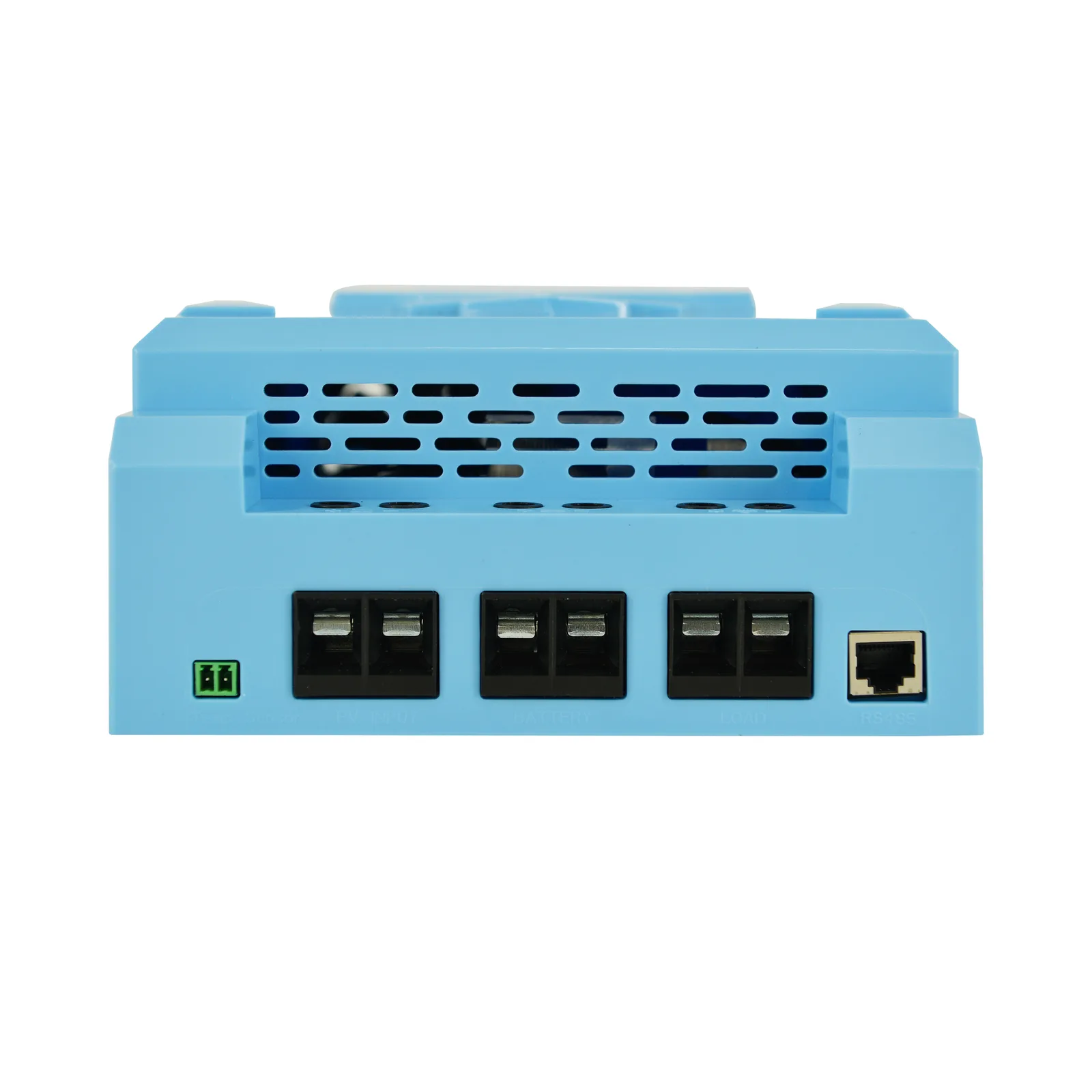

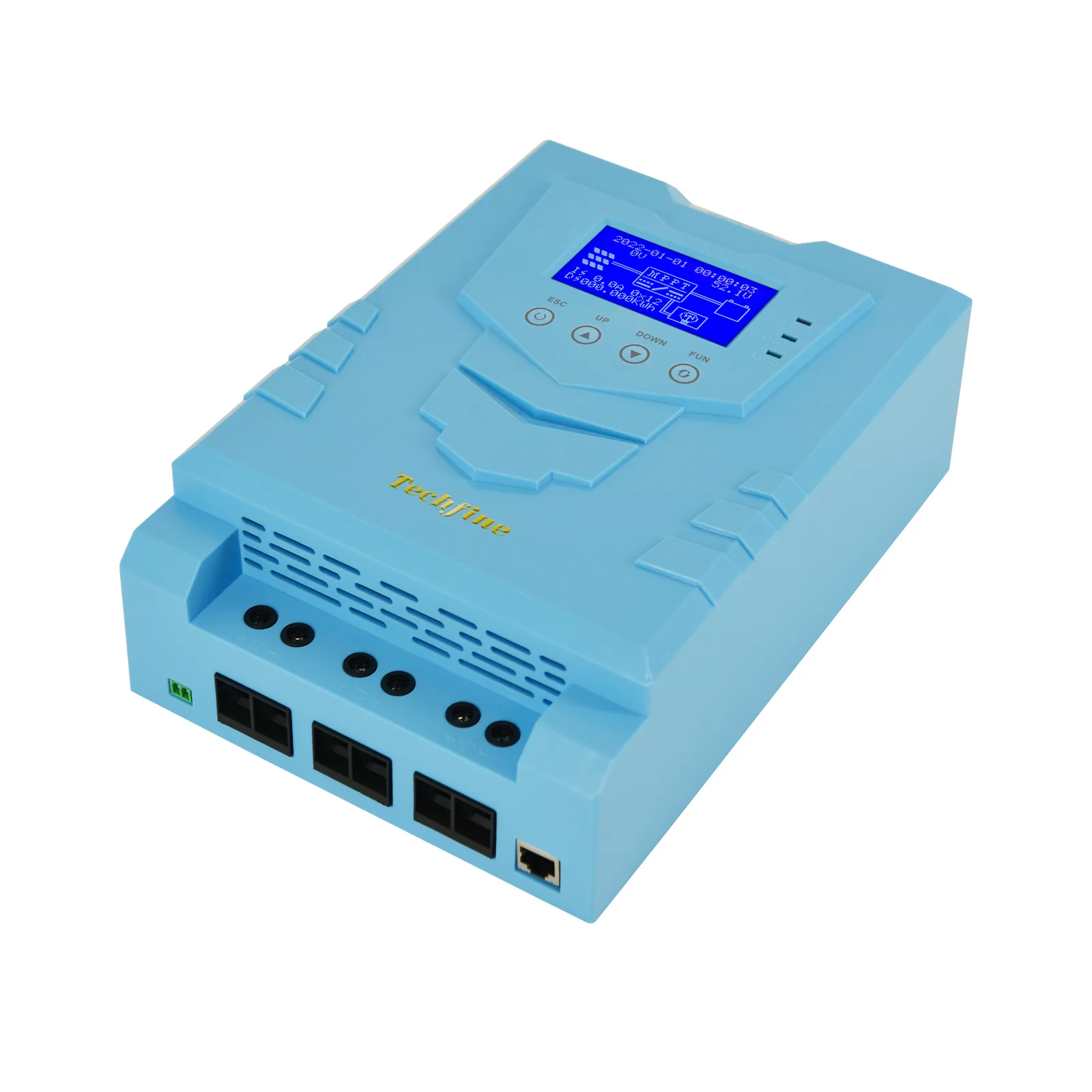

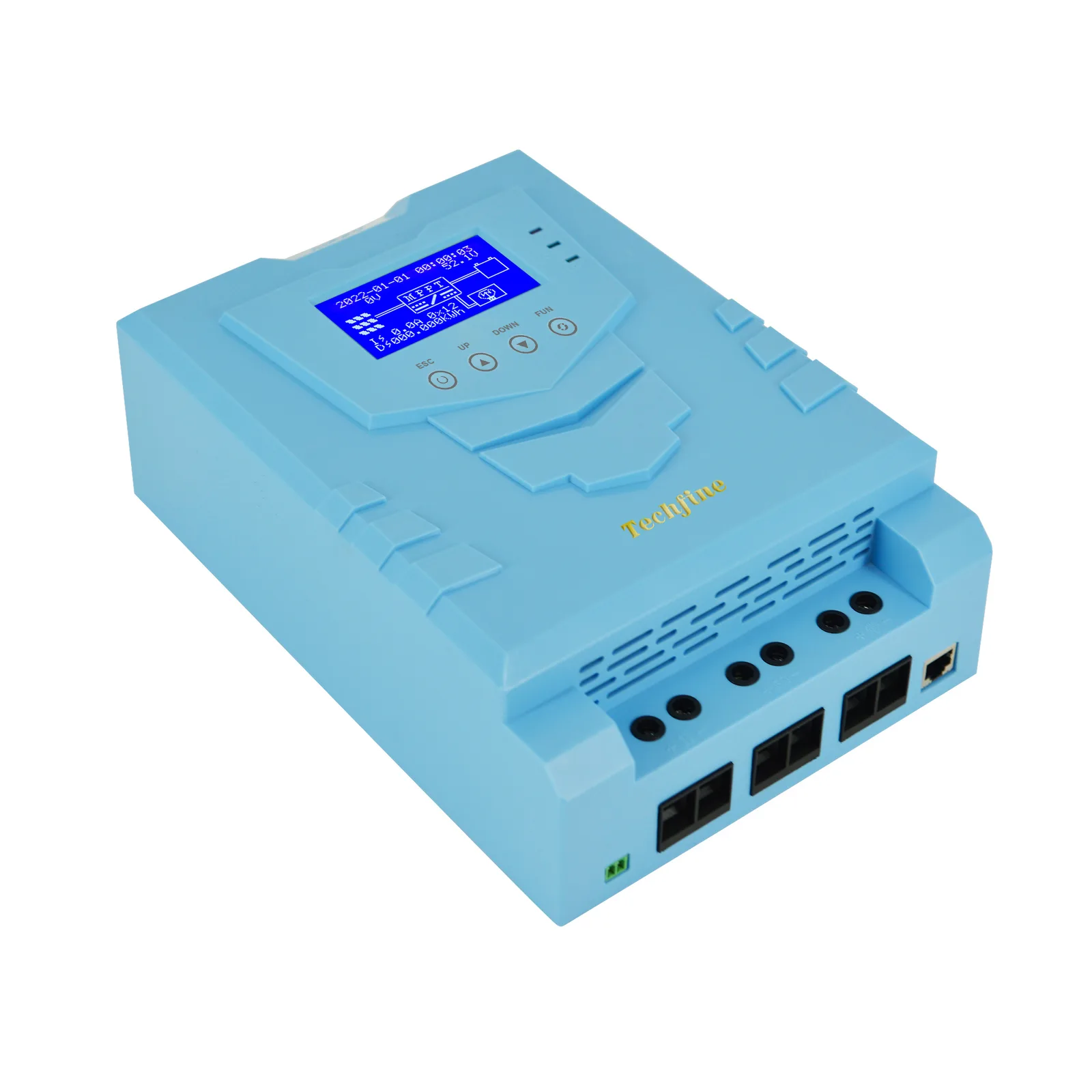

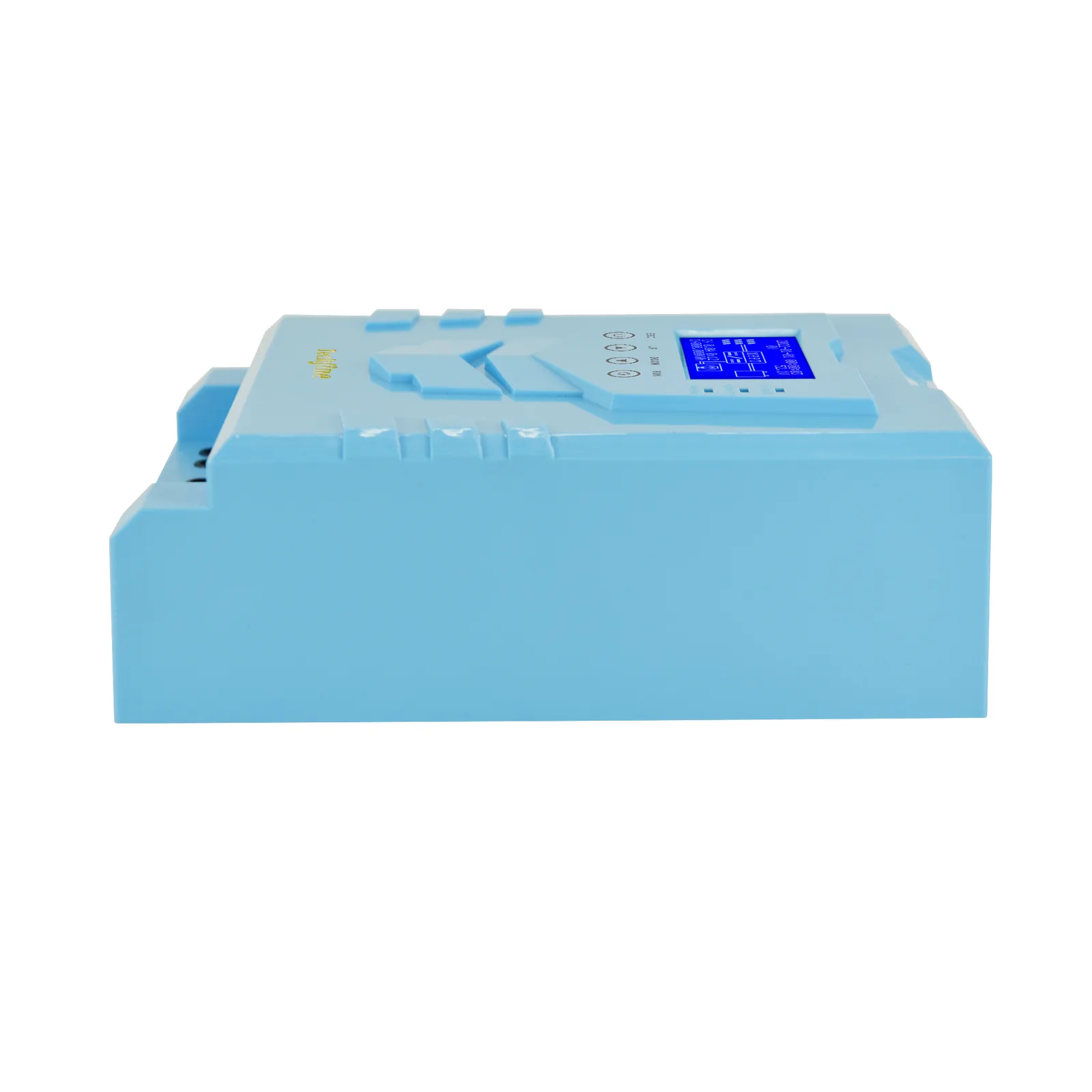

100a 12v 24v 36v 48v Mppt Smart Solar Wind Hybrid Charge Controller
Solar Charge Controller

100a 12v 24v 36v 48v Mppt Smart Solar Wind Hybrid Charge Controller

Tips:

Can support WIFI/GPRS12/24/36/48Vadaptive
Send Inquiry

Product Highlights

Key Features

Product Description
01

Product Description

Feature： Pure sine wave output MPPT Efficiency > 98% Adjustable parameters bypressing buttons Selectable charging currentbased on applications Constant current, Constantvoltage,Floating charge

Specifications

Factory modelMF100415
System voltage12V/24V/36V/48V(Adaptive)
Rated current100A
Charging modeMPPT maximum power point tracking
Applicable battery typeSealed maintention-free lead-acid battery (default), colloidal lead-acid battery, open lead-acid battery (can also customize parameters for other types of battery charging)
Charging modeThree stages: constant current, constant pressure, floating charge
Pv Input Maximum Open Circuit Voltage (VOC)DC150V(minimum temperature) DC138V (25℃ standard temperature)
Start-up time≤10s
Dynamic response recovery time≤500us
Static power consumption
Tracking efficiency≥99.5%
Maximum conversion efficiency≥98%
The controller system identifies the operating voltage range8～64V
Maximum power point operating voltage range12V system20～150VDC
24V system36～150VDC
36V system48～150VDC
48V system64～150VDC
Rated charging power12V1300W
24V2600W
36V3900W
48V5200W
96V/
Load voltageCobattery voltage
Rated load current40A
Load control modeNormally on normally off mode/time control mode/light control mode
Load undervoltage protectionThe default value is 10.5V x N (N is the number of batteries)
Heat dissipation modeAir cooling
Display modeHd LCD backlight display
Protection functionInput and output over and under voltage protection, input and output anti-reverse protection, machine over temperature protection, load over current protection
Temperature compensation coefficient一3mV/℃/2V
Communication modeRS485
Operating ambient temperature▬20℃～+50℃
Storage temperature▬40℃～+70℃
Noise≤50dB
Humidness0～90%RH
Altitude0～3000M
Body size (mm)275*348*109
Net weight (KG) is for reference only5.2KG
Recommended connection2AWG/35mm²
