String InverterThree Phase Low Voltage String Inverter23-30kW
SUN-23/25/30K-G04-LV
Three Phase | 23-30kW | 4 MPPT | Low Voltage | 127/220Vac
Three Phase23-30kW4 MPPTLow Voltage127/220Vac
Send InquiryOverview
SUN-23/25/30K-G04-LV Three Phase | 23-30kW | 4 MPPT | Low Voltage | 127/220Vac
Product Highlights
Features
01

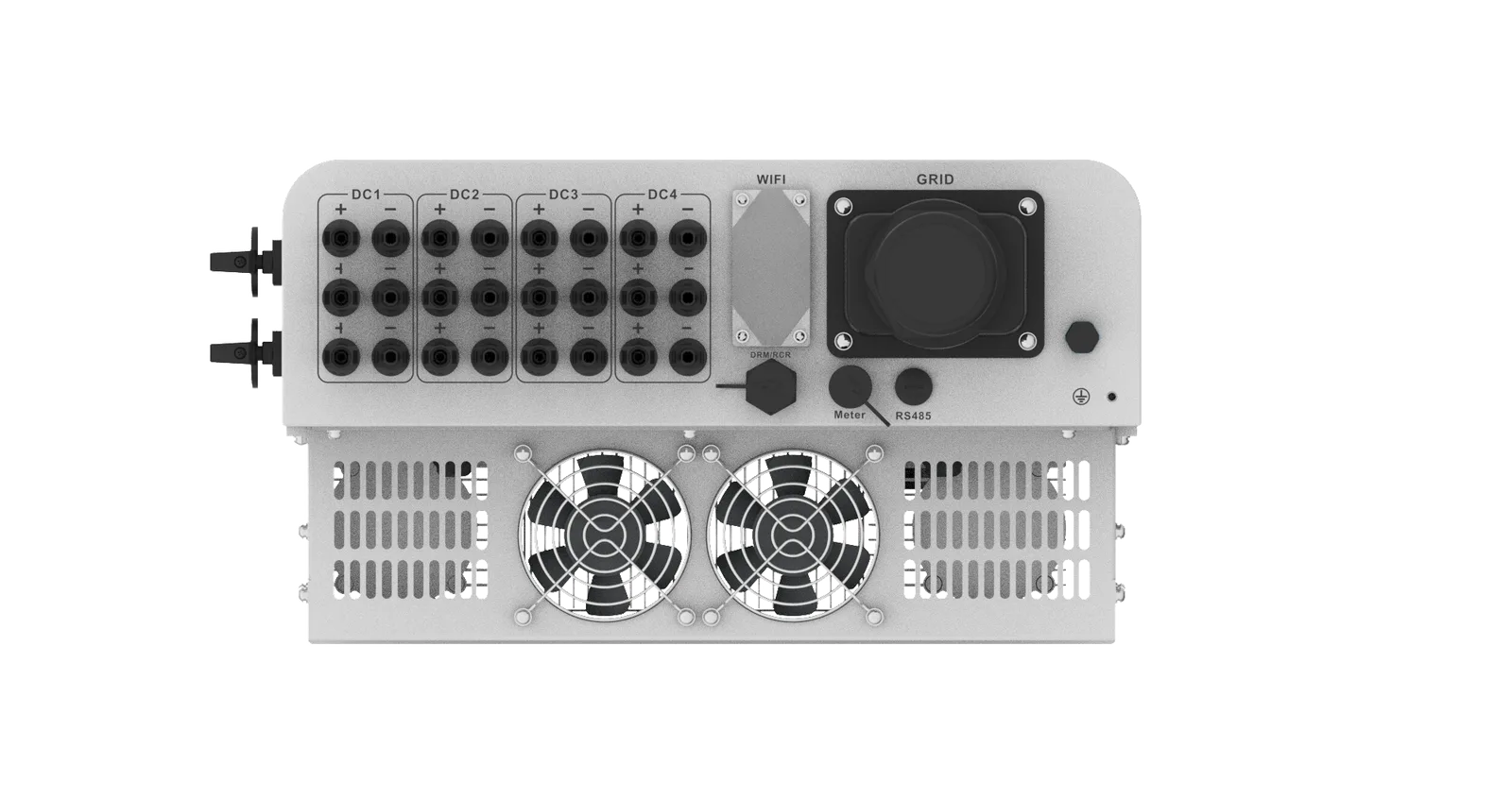

127V/220V, 133V/230V and
02

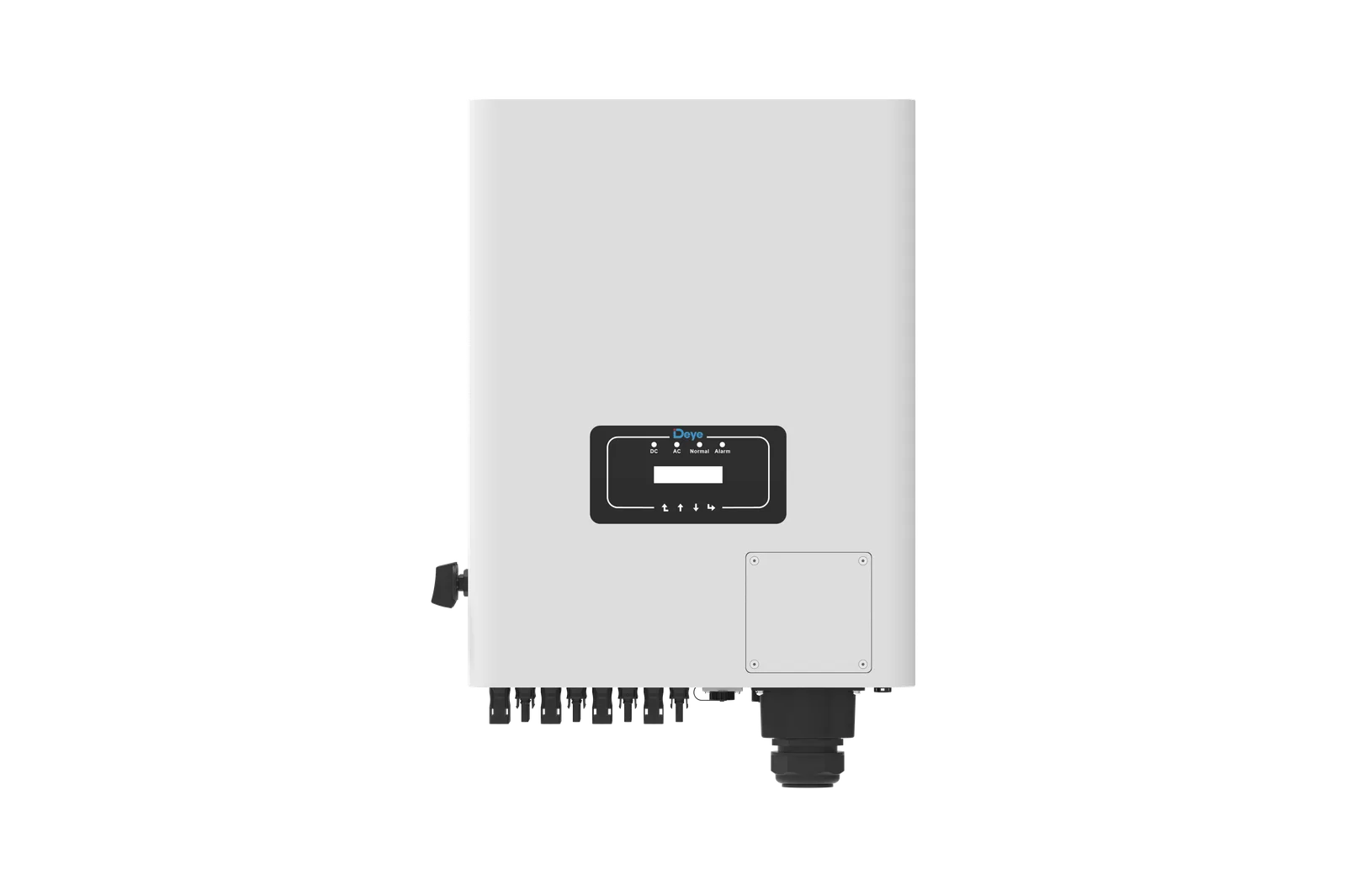

50/60Hz, Three phase system
03

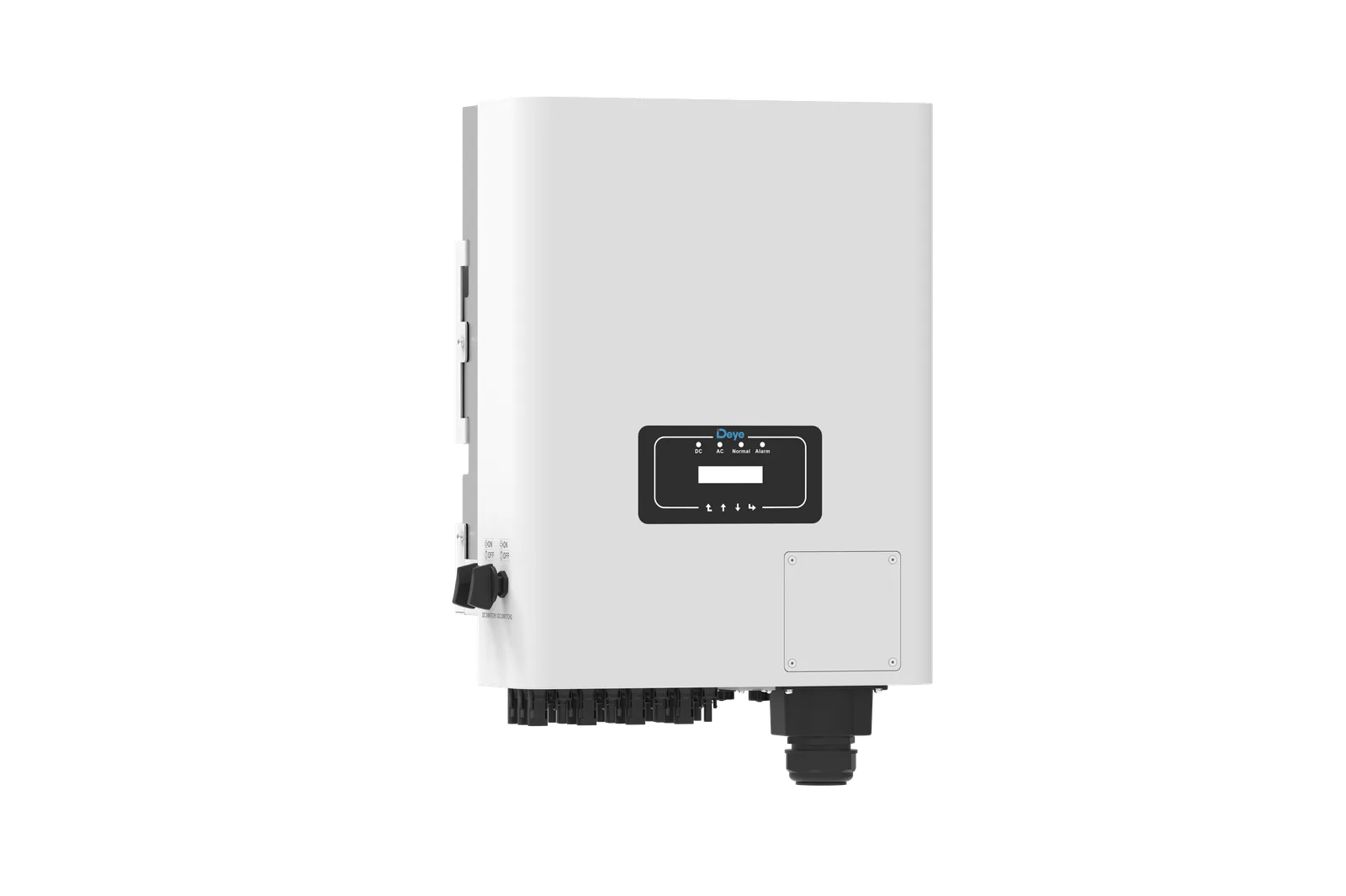

Max 4 MPP tracker, Max. efficiency up to 98.7%
04

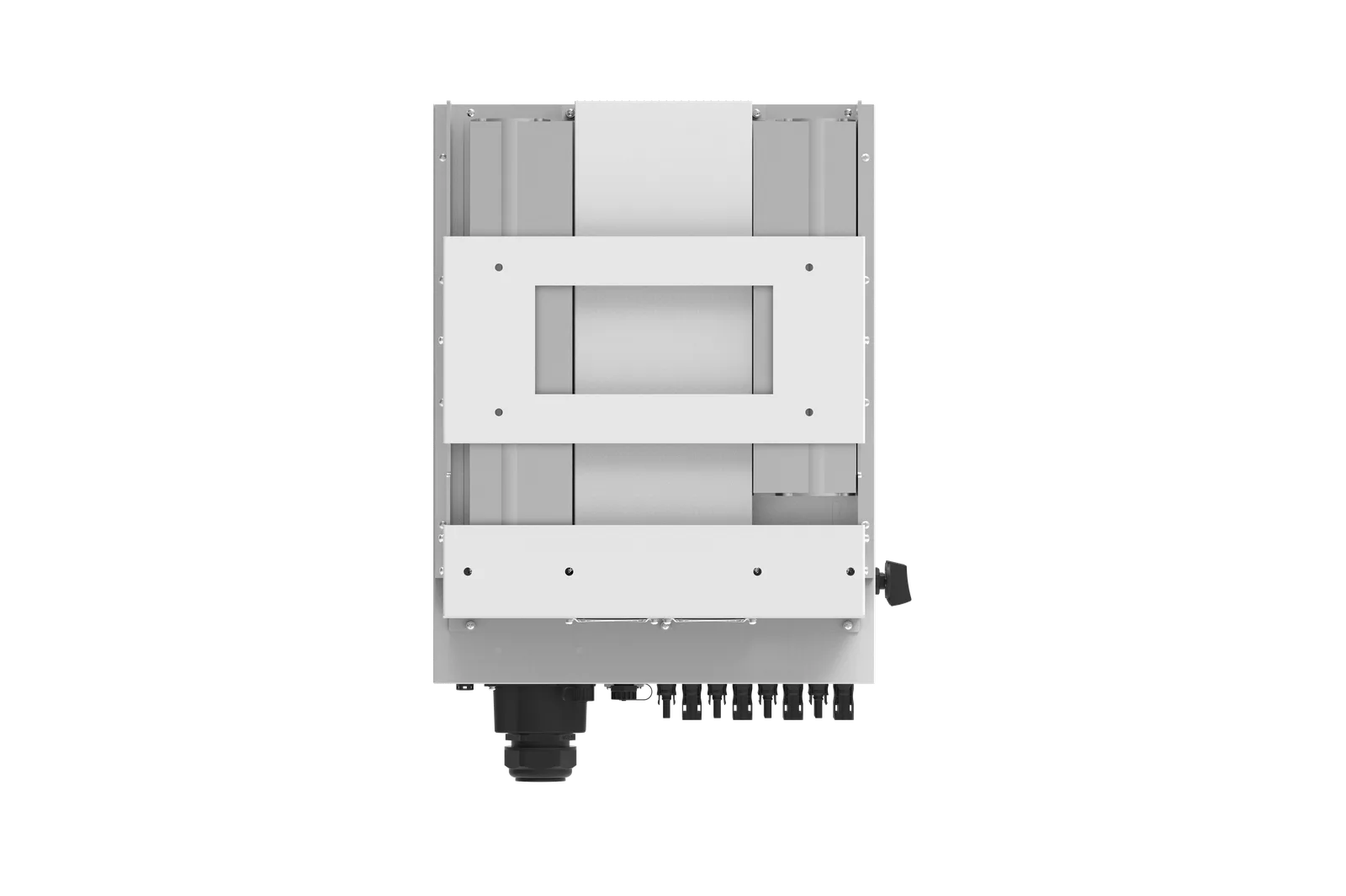

Zero export application, VSG application
05

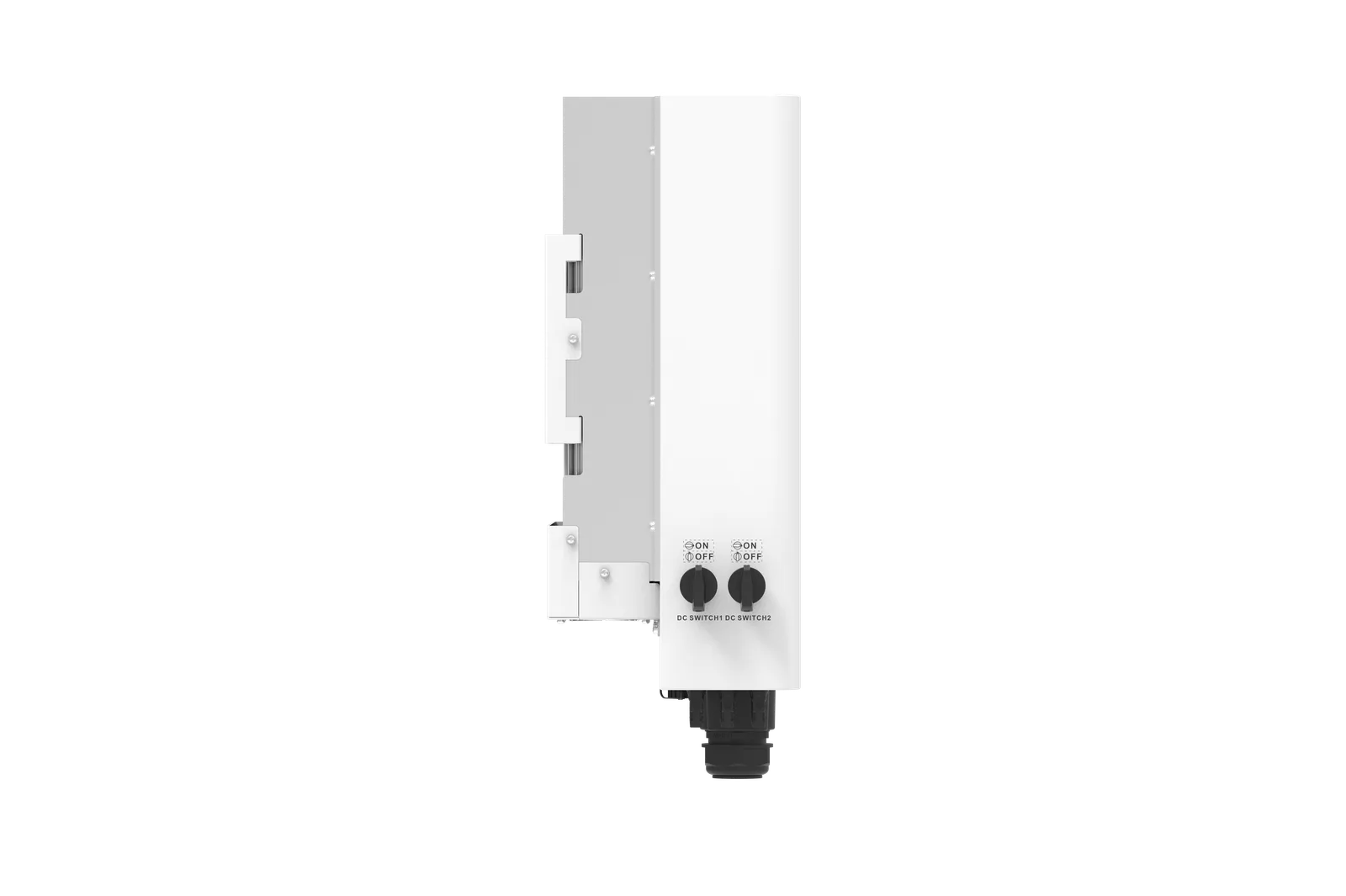

String intelligent monitoring (optional)
06
Wide output voltage range
07
Anti-PID function (Optional)
Specifications
| Model | SUN-23K-G04-LV | SUN-25K-G04-LV | SUN-30K-G04-LV |
|---|---|---|---|
| PV String Input Date | |||
| Max. PV Input Power(kW) | 29.9 | 32.5 | 39 |
| Max. PV Input Voltage(V) | 800 | ||
| Start-up Voltage(V) | 250 | ||
| MPPT voltage range(V) | 200-700 | ||
| Rated PV Input voltage(V) | 400 | ||
| Max. Operating PV Input Current (A) | 40+40+40 | 40+40+40+40 | |
| Max. Input Short Circuit Current (A) | 60+60+60 | 60+60+60+60 | |
| No. of MPP Trackers/No. of Strings per MPP Tracker | 3/3+3+3 | 4/3+3+3+3 | |
| AC Output Side | |||
| Rated AC Output Active Power(kW) | 23 | 25 | 30 |
| Max. AC Output Apparent Power(kVA) | 23 | 25 | 30 |
| Rated AC output current (A) | 60.4/57.7 | 65.7/62.7 | 78.8/75.2 |
| Max. AC Output Current(A) | 60.4/57.7 | 65.7/62.7 | 78.8/75.2 |
| Rated output voltage/range (V) | 127V/220V, 133V/230V 0.85UN-1.1UN | ||
| Grid Connection Form | 3L/N/PE | ||
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 | ||
| Power Factor Adjustment Range | 0.8 leading to 0.8lagging | ||
| Total Current Harmonic Distortion THDi | <3% | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max. Efficiency | 98.70% | ||
| MPPT Efficiency | ＞99% | ||
| Equipment Protection | |||
| DC Reverse Polarity Protection | Yes | ||
| AC Output Overcurrent Protection | Yes | ||
| AC Output Overvoltage Protection | Yes | ||
| AC Output Short Circuit Protection | Yes | ||
| Thermal Protection | Yes | ||
| Insulation Impedance Detection | Yes | ||
| DC Component Monitoring | Yes | ||
| Arc Fault Circuit Interrupter (AFCI) | Optional | ||
| Anti-islanding Protection | Yes | ||
| Residual Current Detection | Yes | ||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||
| DC Switch | Yes | ||
| Interface | |||
| Communication Interface | RS485/RS232 | ||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||
| General Data | |||
| Operating Temperature Range (°C) | -25 to +65℃, >45℃ Derating | ||
| Permissible Ambient Humidity | 0~100% | ||
| Permissible Altitude (m) | 4000m | ||
| Noise (dB) | ≤65 | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Cabinet Size (WxHxD mm) | 434×570×243 (Excluding Connectors and Brackets) | ||
| Weight [kg] | 37.1 | ||
| Warranty [year] | 5 years | ||
| Type Of Cooling | Intelligent Air Cooling | ||
| Grid Regulation | NBR 16149, NBR 16150, EN 50549, RD 140 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
| Seguridad EMC/Estándar | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
