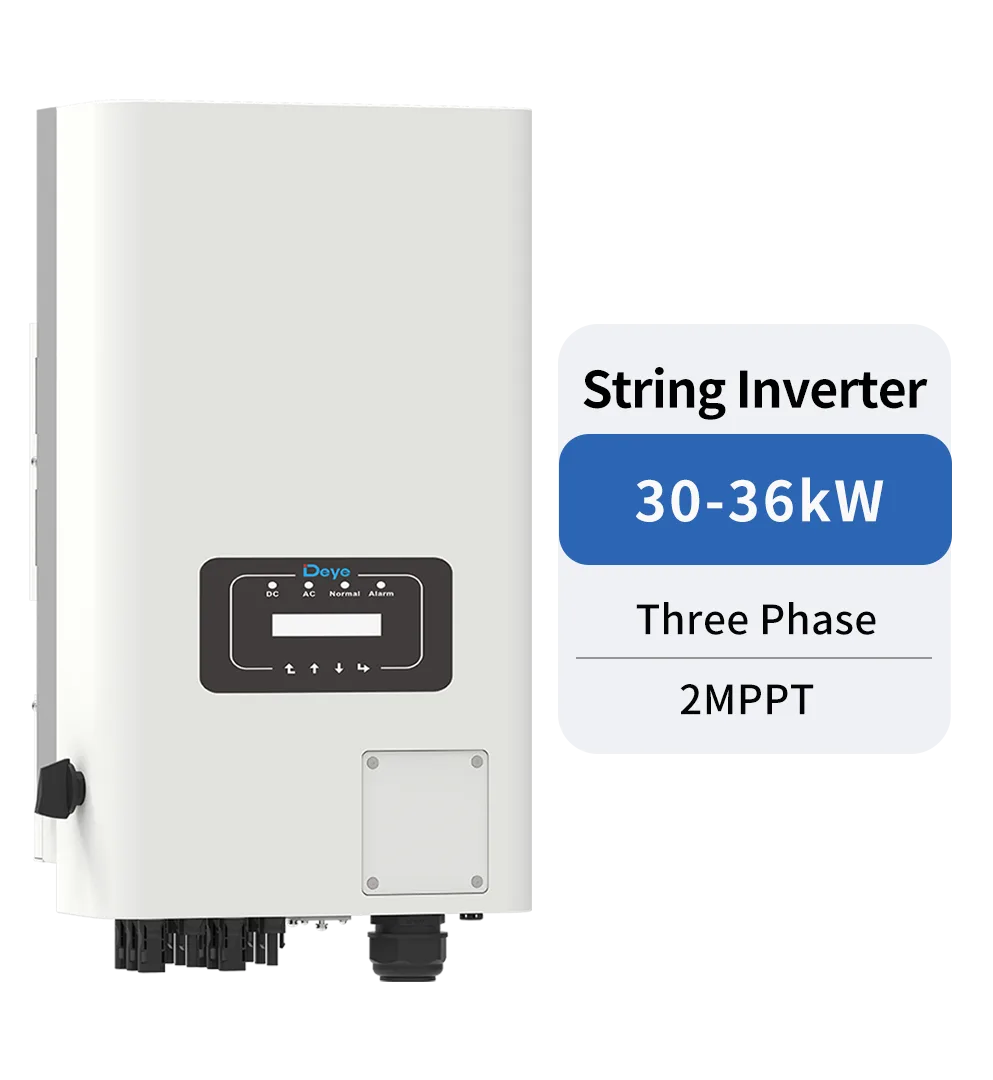

String InverterThree Phase String Inverter30-36kW
SUN-30/33/35/36K-G04
Three Phase | 30-36kW | 2 MPPT
Three Phase30-36kW2 MPPT
Downloads
Overview
SUN-30/33/35/36K-G04 Three Phase | 30-36kW | 2 MPPT
Product Highlights
Features
01
2 MPP tracker, Max. efficiency up to 98.6%
02

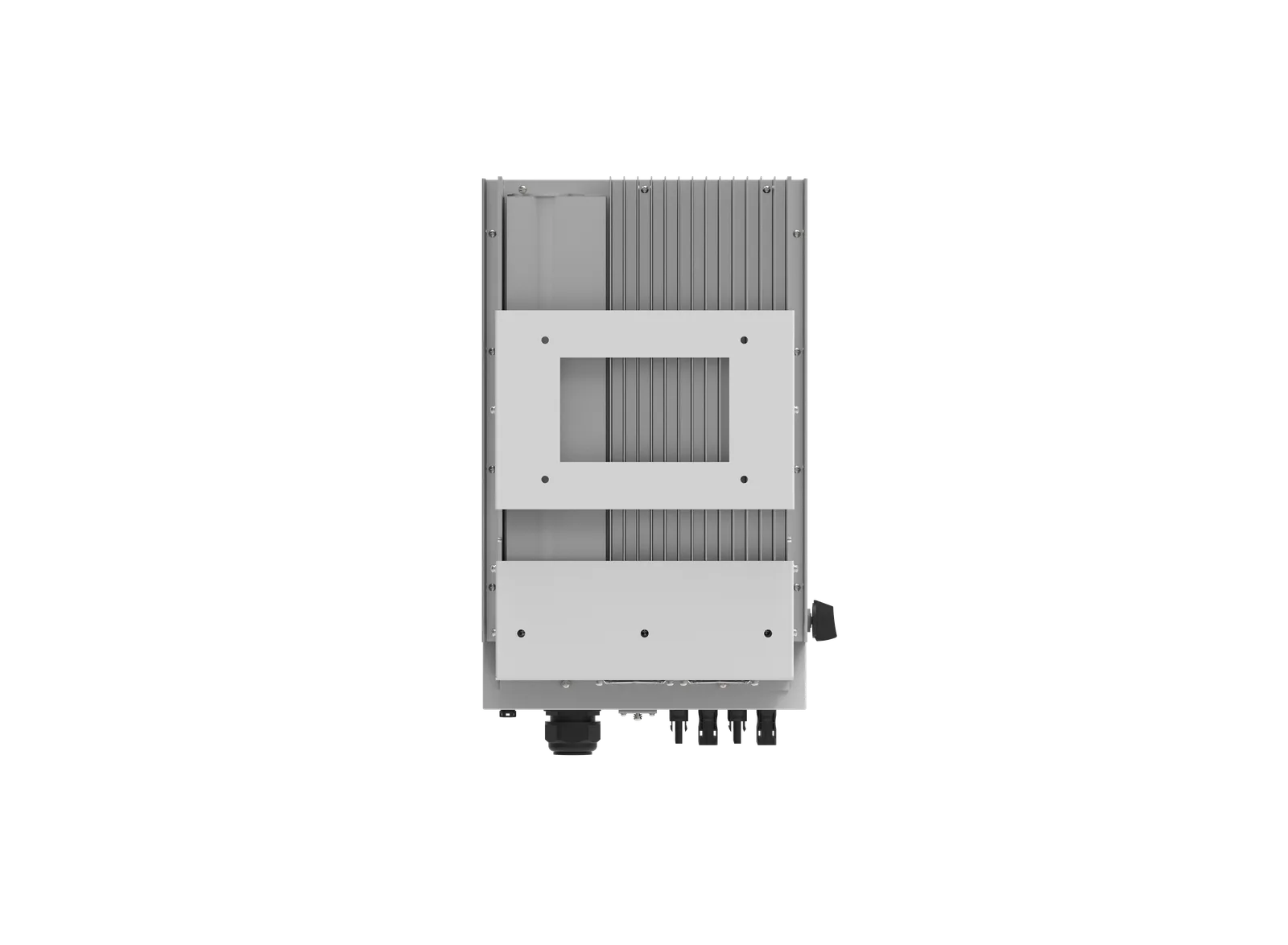

Zero export application, VSG application
03

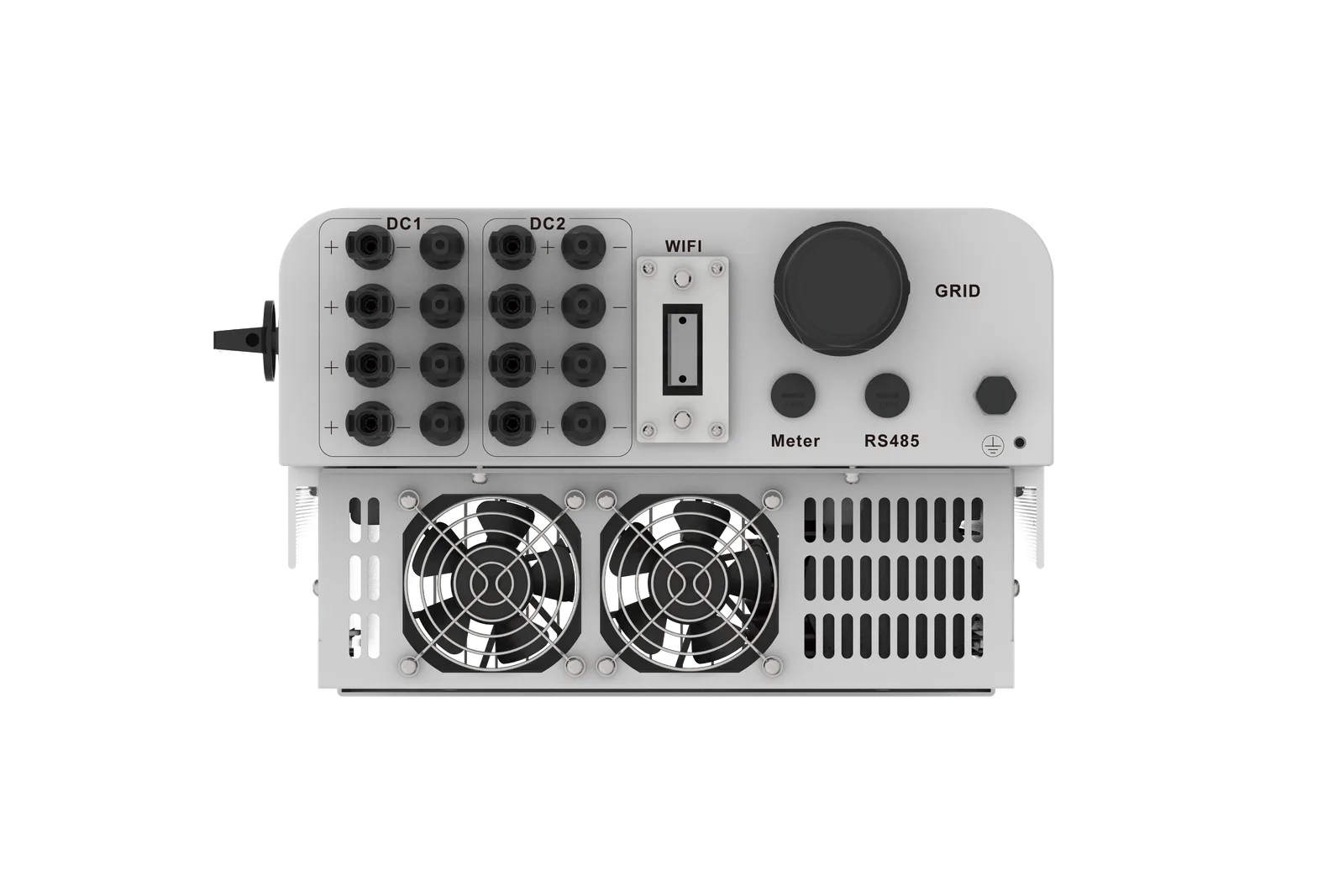

String intelligent monitoring (optional)
04

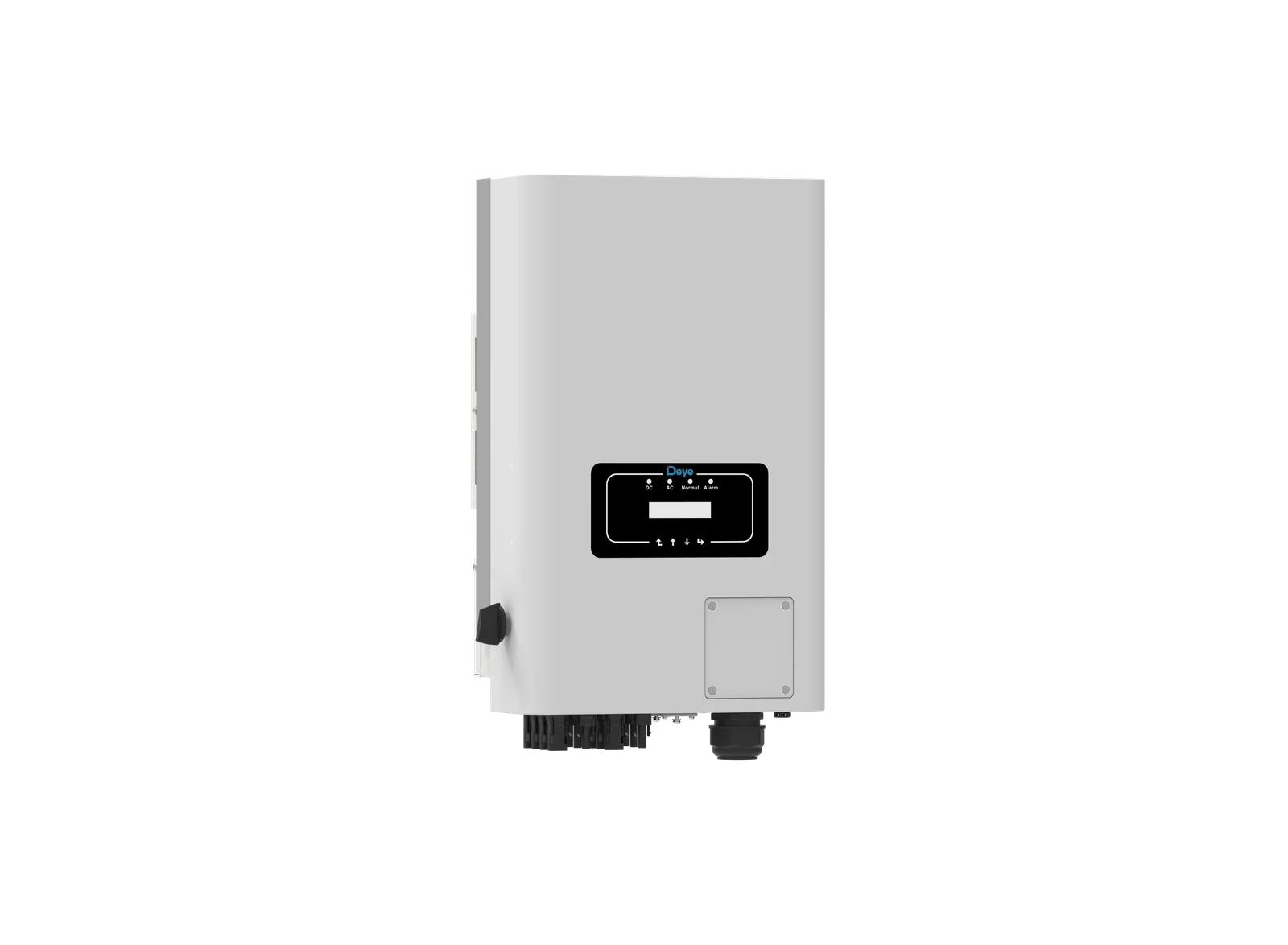

Wide output voltage range
05

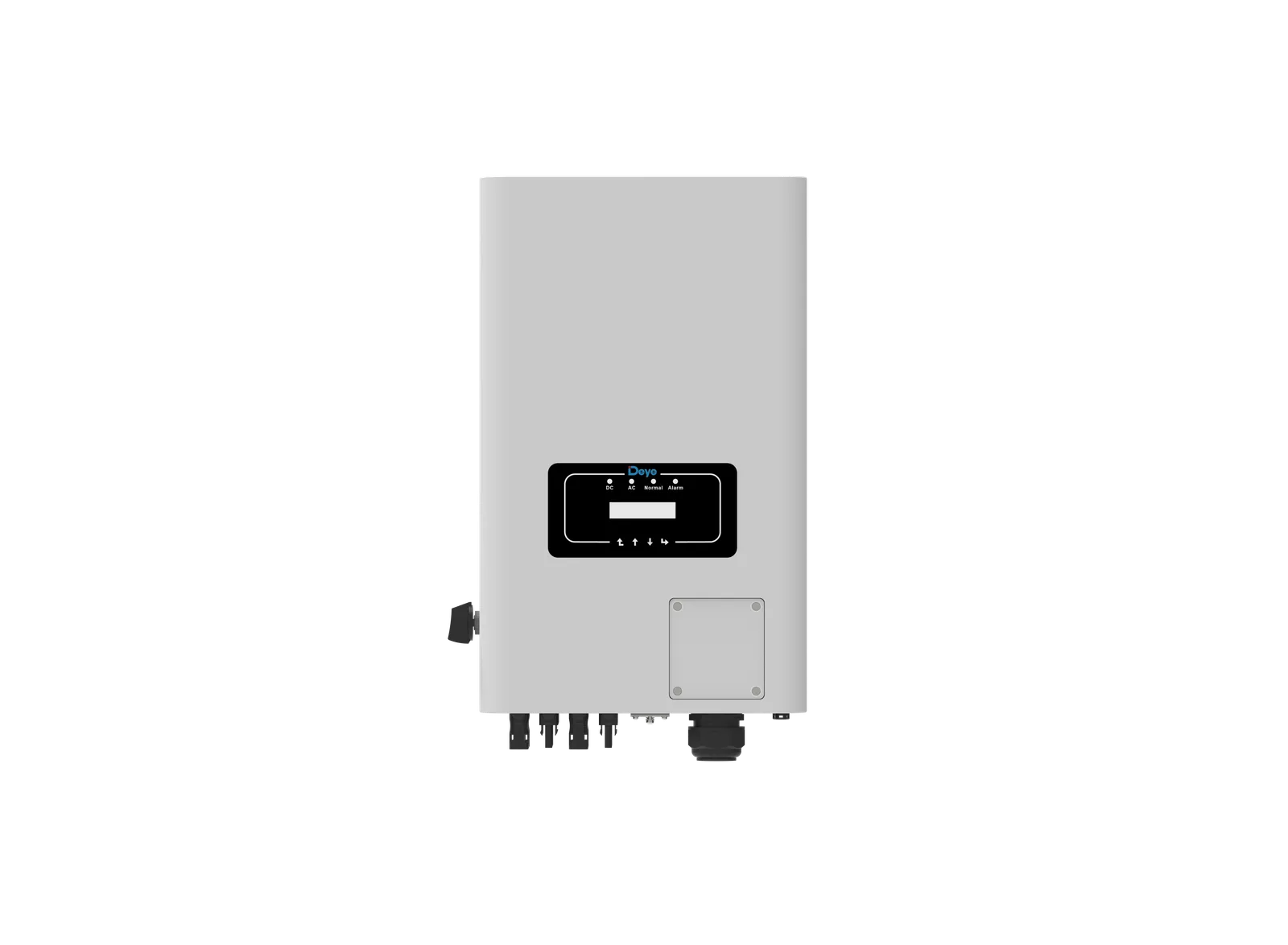

Anti-PID function (Optional)
Specifications
| Model | SUN-30K-G04 | SUN-33K-G04 | SUN-35K-G04 | SUN-36K-G04 |
|---|---|---|---|---|
| PV String Input Date | ||||
| Max. PV Input Power(kW) | 45 | 49.5 | 52.5 | 54 |
| Max. PV Input Voltage(V) | 1100 | |||
| Start-up Voltage(V) | 250 | |||
| MPPT voltage range(V) | 200-1000 | |||
| Rated PV Input voltage(V) | 600 | |||
| Max. Input Short Circuit Current (A) | 60+60 | |||
| Max. Operating PV Input Current(A) | 40+40 | |||
| No. of MPP Trackers/No. of Strings per MPP Tracker | 2/3+3 | |||
| AC Output Side | ||||
| Rated AC Output Active Power(kW) | 30 | 33 | 35 | 36 |
| Max. AC Output Apparent Power(kVA) | 33 | 36.3 | 38.5 | 39.6 |
| Rated AC output current (A) | 45.5/43.5 | 50/47.8 | 53/50.7 | 54.5/52.2 |
| Max. AC Output Current(A) | 50/47.9 | 55/52.6 | 58.3/55.8 | 60/57.4 |
| Rated output voltage/range (V) | 220/380V, 230/400V 0.85Un-1.1Un | |||
| Grid Connection Form | 3L/N/PE | |||
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 | |||
| Power Factor Adjustment Range | 0.8 leading to 0.8lagging | |||
| Total Current Harmonic Distortion THDi | <3% | |||
| DC Injection Current | <0.5%ln | |||
| Efficiency | ||||
| Max. Efficiency | 98.60% | |||
| Euro Efficiency | 98.10% | |||
| MPPT Efficiency | ＞99% | |||
| Equipment Protection | ||||
| DC Reverse Polarity Protection | Yes | |||
| AC Output Overcurrent Protection | Yes | |||
| AC Output Overvoltage Protection | Yes | |||
| AC Output Short Circuit Protection | Yes | |||
| Thermal Protection | Yes | |||
| Insulation Impedance Detection | Yes | |||
| DC Component Monitoring | Yes | |||
| Arc Fault Circuit Interrupter (AFCI) | Optional | |||
| Anti-islanding Protection | Yes | |||
| Residual Current Detection | Yes | |||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||
| DC Switch | Yes | |||
| Interface | ||||
| Communication Interface | RS485/RS232 | |||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | |||
| General Data | ||||
| Operating Temperature Range (°C) | -25 to +60℃, >45℃ Derating | |||
| Permissible Ambient Humidity | 0~100% | |||
| Permissible Altitude (m) | 4000m | |||
| Noise (dB) | ≤ 60 | |||
| Ingress Protection(IP) Rating | IP 65 | |||
| Inverter Topology | Non-Isolated | |||
| Over Voltage Category | OVC II(DC),OVC III(AC) | |||
| Cabinet Size (WxHxD mm) | 330*572*206（Excluding connectors and brackets） | |||
| Weight [kg] | 28.7 | |||
| Warranty [year] | 5 years | |||
| Type Of Cooling | Intelligent air cooling | |||
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105 | |||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||
