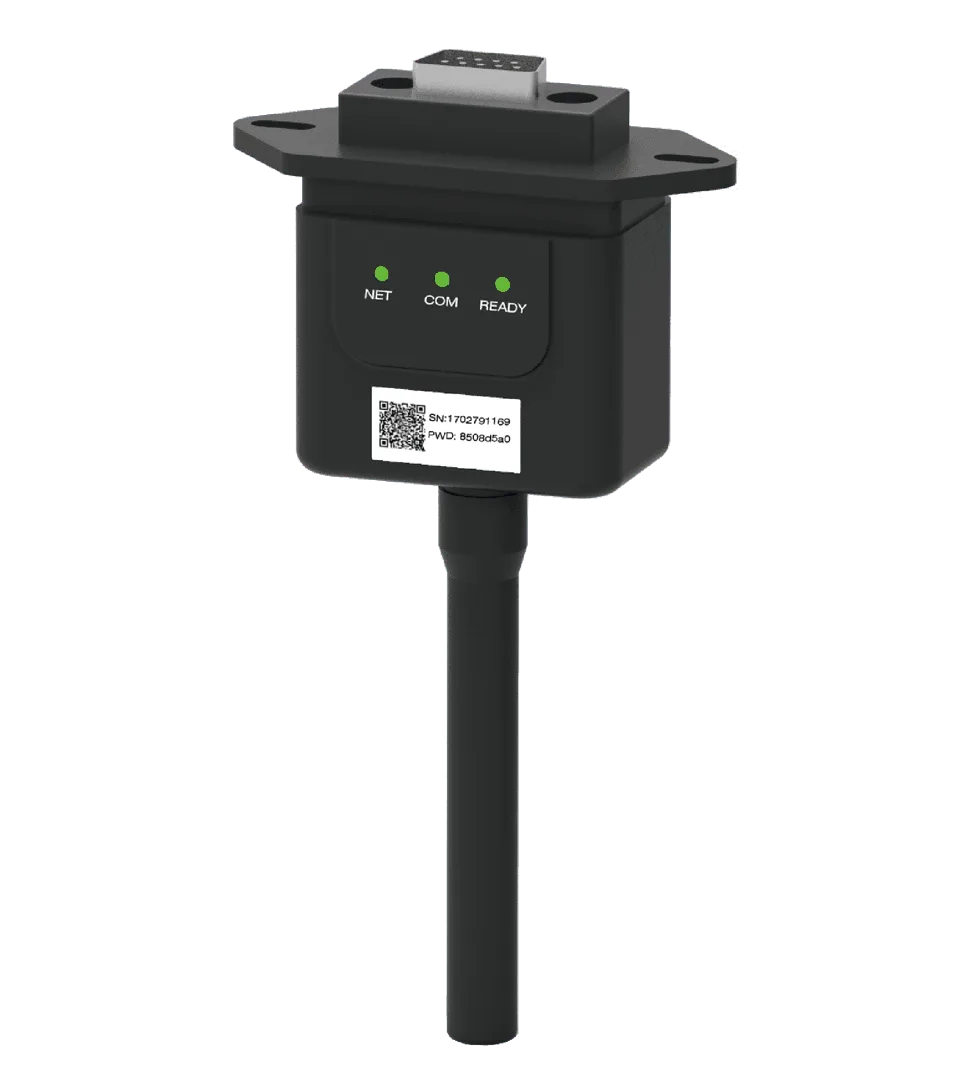

Stick Logger
Stick logger supports GPRS, WIFI, 4G, Ethernet and other communication modes. Its bluetooth function enables local debugging configuration to collect operation and power generation data from inverters.It pairs with solarman professional platform to enable remote PV system monitoring and to realize distributed power station management with lower cost and higher efficiency.
Send InquiryOverview
Stick Logger Stick logger supports GPRS, WIFI, 4G, Ethernet and other communication modes. Its bluetooth function enables local debugging configuration to collect operation and power generation data from inverters.It pairs with solarman professional platform to enable remote PV system monitoring and to realize distributed power station management with lower cost and higher efficiency.
Product Highlights
Features
Plug & Play for effortless installation
No external power required
IP65-rated for reliable outdoor use
External light indicator, logger status at a glance
Real-time yield monitoring via Deye Cloud
Independent design safeguards internal components
External design simplifies replacement
Specifications
| Model | LSW-6-A525530 | LSW-5A5253 | LSW-3A5251-C | LSE-4WA5252 |
|---|---|---|---|---|
| Remote Communication Interface | WIFI | WIFI | WiFi | Internet |
| Working Frequency | 2.400 GHz ~ 2.4835 GHz | 2.412 GHz~2.472 GHz | 2.412 GHz~2.472 GHz | 2.412GHz~2.472GHz |
| Satellite Positioning | / | / | / | / |
| Antenna | / | Integrated PCB antenna | External WiFi stick antenna | / |
| Data Interface | RS232 | RS232 | RS232 | RS232 |
| Working Voltage | DC5V-12V(±5%) | DC5V ~DC12V | DC5V~DC12V | DC 5-12V |
| Working Power | 2W | 1.5W | 1.5W | 1.5W |
| SIM Card | / | / | / | / |
| Memory | 8MB FLASH | Default configuration: 8 MB of FLASH | 2M | Default configuration: 4 MB of flash memory |
| Working Temperature | -30°C~70°C | |||
| Working Humidity | 10%~90% relative humidity, non-condensing | |||
| No.of Connections | One | |||
| Serial Communication Rate | 9600 bps (adjustable from 1200 to 115200 bps) | 9600 bp | Default setting: 9600 bps (Adjustable from 1200 to 115200 bps) | Default setting: 9600 bps (Adjustable from 1200 to 57600 bps) |
| Data Acquisition Interval | Default setting: 5 minutes | |||
| User Configuration | App Configuration | AT+ command set | AT+ command set | AT+ command set |
| Local web page configuration | Local web page configuration | Local web page configuration | ||
| Remote server | Remote server | Remote server | ||
| Bluetooth | Remote server | Bluetooth | ||
| Firmware Upgrade | Local upgrade Remote upgrade | Local web page update Remote update | Local web page update Remote update | Local web page update Remote update |
| Others | Real-time Control | Real-time control, breakpoint resume | Real-time Control Data resuming | Real-time control, breakpoint resume |
