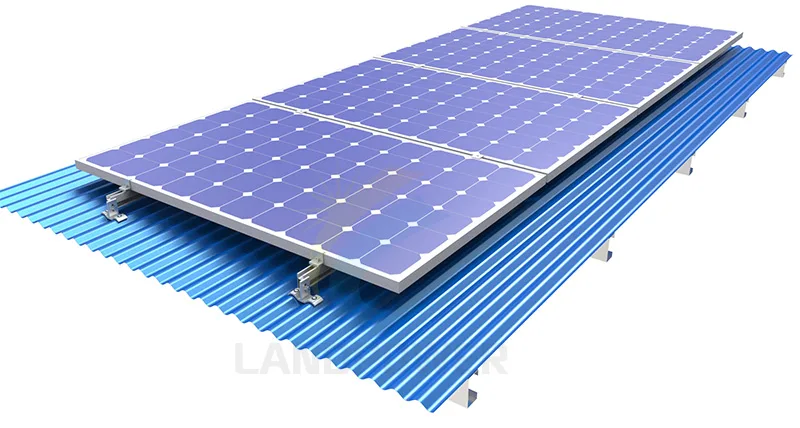

Corrugated Roof LongRail Mounting Systems
The Corrugated Roof Mounting with roof clamp is specially design for corrugated metal roof sheet,coming with long rail,it is strong metal roof structure for corrugated metal roof.
Item No
LP-CLF-01
MOQ
1
Color
Silver,Black
Lead Time
7-15 days
Weight
default
Product Details

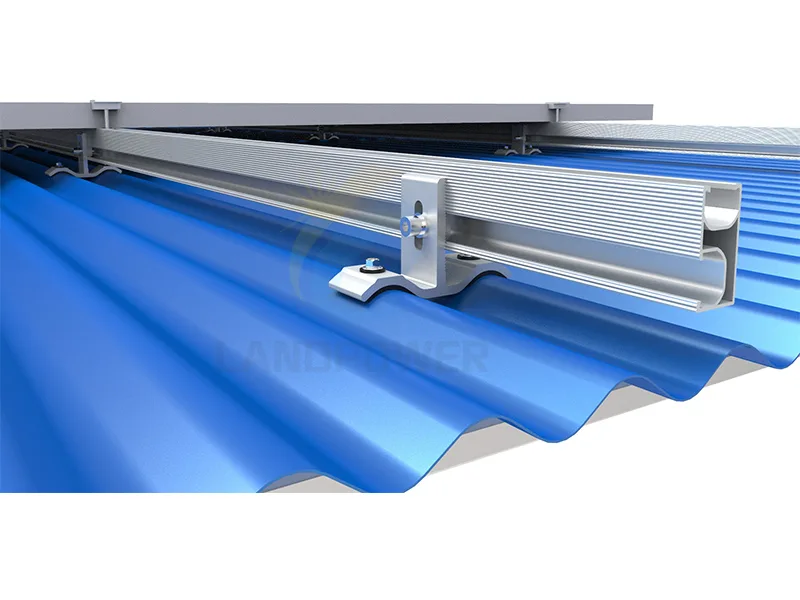

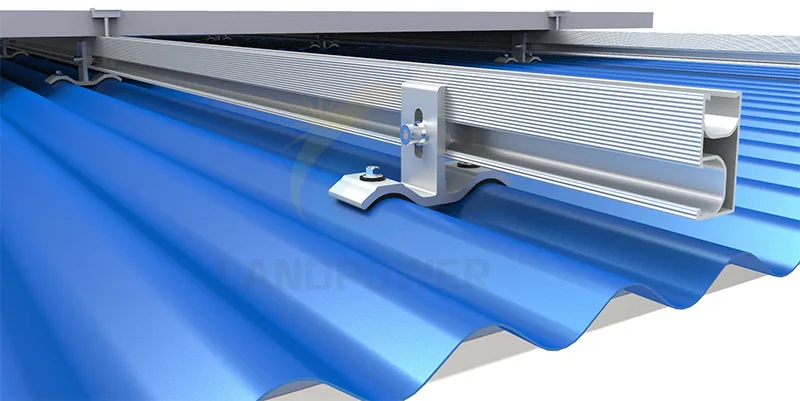

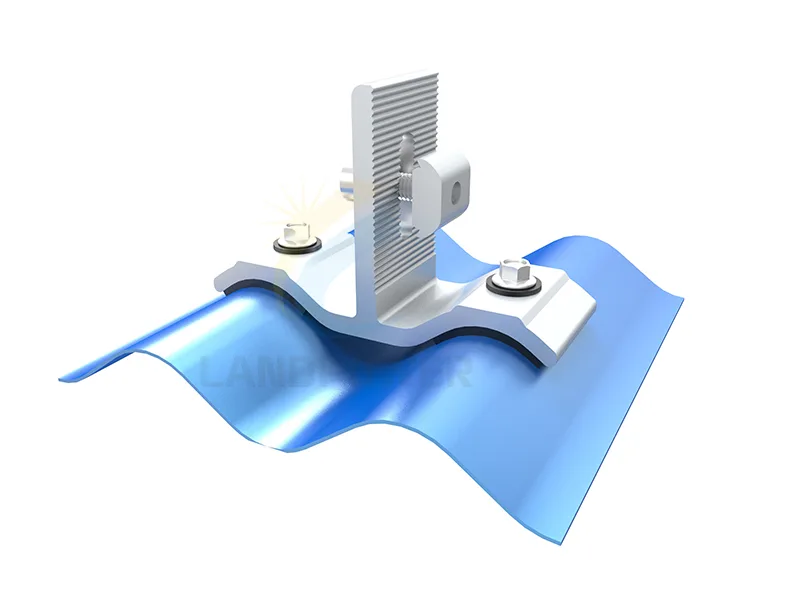

The Corrugated Roof LongRail Mounting is designed for windy zone solar panel installation on corrugated roof sheet,the mounting systems normally comes with long rail,mid clamp,end clamp,splice,and specially designed roof corrugated roof clamp and earthing components.The aluminum roof clamp are designed exactly with corrugated roof shape to firmly attached to roof sheet,it is sturdy corrugated mounting structure.

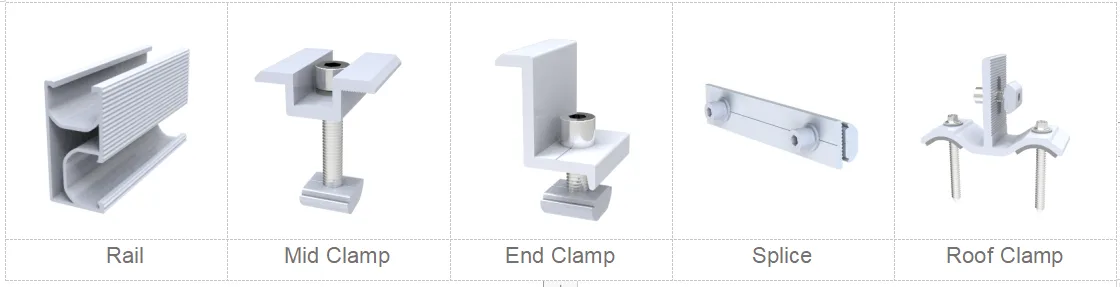

Main Typical Component for Corrugated Roof Long Rail Mounting Systems:
TECHNICAL INFORMATION Install site ： Corrugated Roof Sheet Metal Tilt Angle ： Flushed with the roof （ 10~60 deg ） Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2(304),EPDM Color: Silver,Black or Customized Anti-corrosive: Anodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life

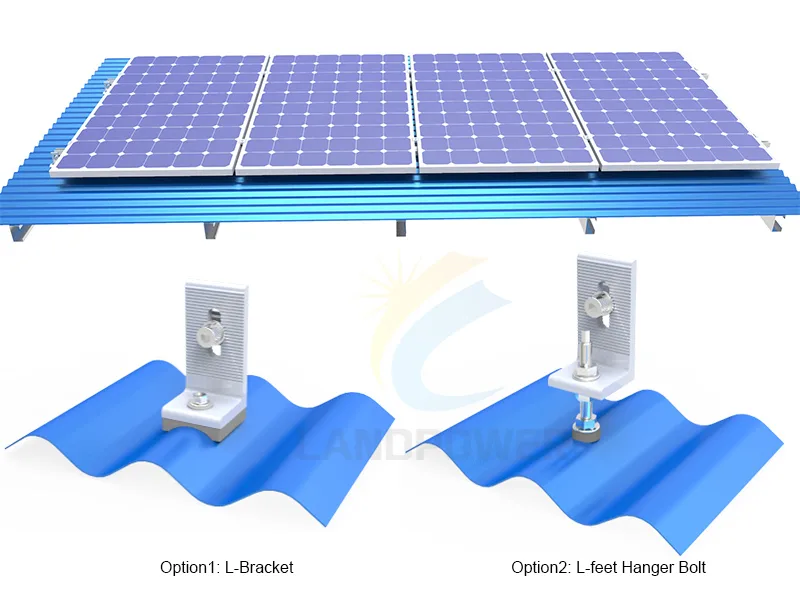

There are other mounting solutions for corrugated roof metal sheet,like L feet (option1),and L-feet with hanger bolt(Option2) showing on below image.

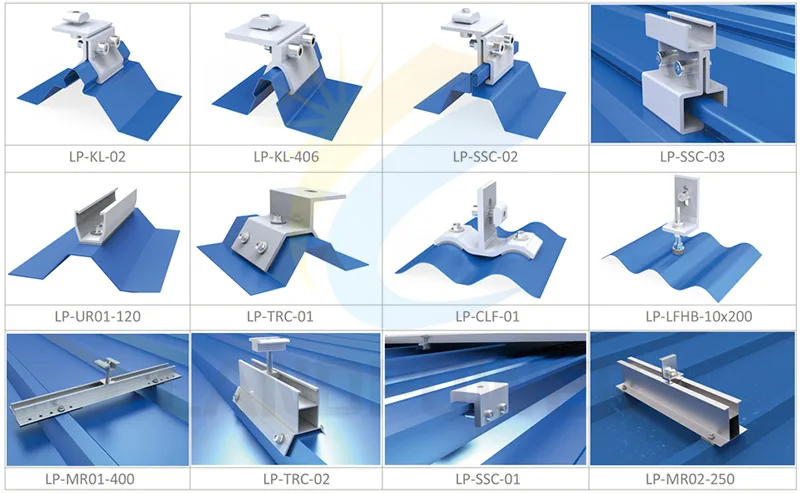

Other Metal Roof Attachment Reference

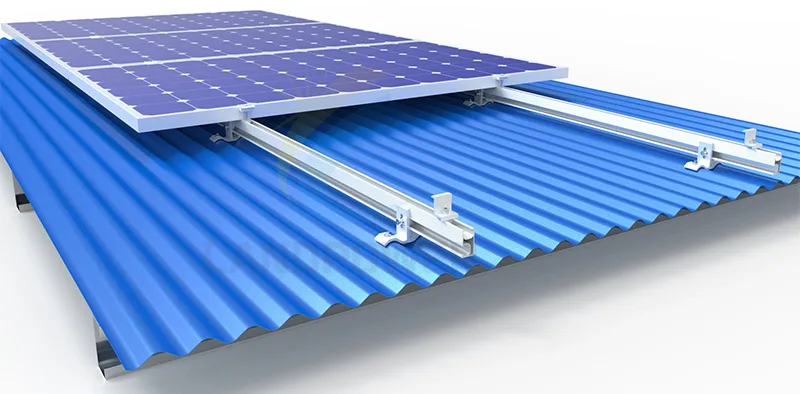

The installation Demo.
Specifications
| Install site | Corrugated Roof Sheet Metal |
|---|---|
| Tilt Angle | Flushed with the roof （ 10~60 deg ） |
| Building Height | 20 m |
| Max Wind Speed | <60m/s |
| Snow Load | <1.4KN/m2 |
| Standard | En 1090, AS/NZS 1170 and other international Standard |
| Material | Aluminum 6005-T5& Stainless steel A2(304),EPDM |
| Color | Silver,Black or Customized |
| Anti-corrosive | Anodized aluminum & stainless steel |
| Warranty | 12 years warranty and twenty- year service life |
