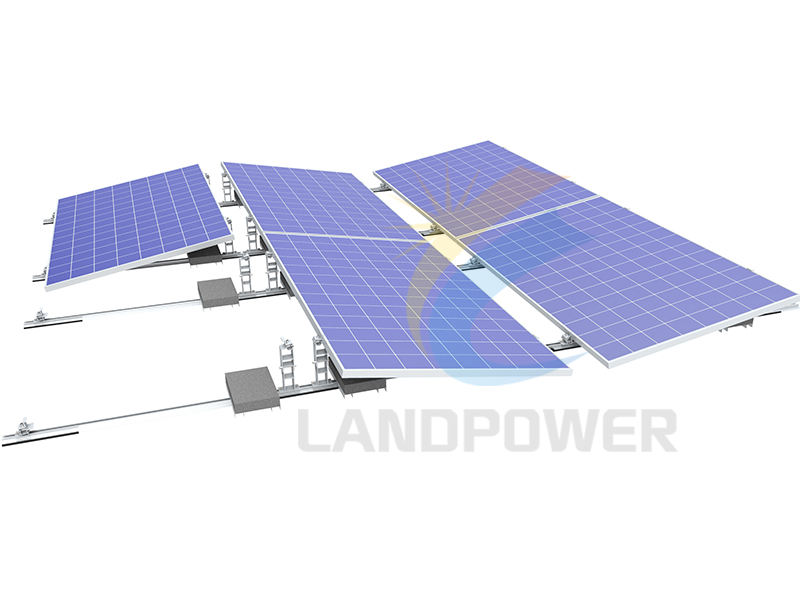

Flat Roof Solar Panel Long Side Ballast Mounting
Flat Roof Ballasted Solar Panel Long Side Mounting is the ideal solution to mount big solar panel on flat roof or trapezoidal roof, it is simple, easy and strength mounting structure for large panel.
| Item No | LP-FR-LS02 |
|---|---|
| Order(MOQ) | 1PCS |
| Payment | TT,L/C |
| Product Origin | Xiamen China |
| Color | Silver or Black |
| Shipping Port | Xiamen China |
| Lead Time | 7-10 days |
Product Details
Flat Roof Solar Panel Long Side Ballast Mounting is design for clamping big solar panel with long frame, it allows mount anywhere of long side of panel, and the mounting is with wind deflectors and EPDM mat which adjust tolerances and grid the roof surface firmly, the mounting strength is enough for large loads on panels. Easy and simple to install with few mounting components requested, come with preassembled parts, best solutions for flat roof and trapezoidal roof.
TECHNICAL INFORMATION
Install Site: Flat Roof or Metal Roof
Tilt Angle: 10 degrees
Panel Orientation: South facing or East West
Building Height: Up to 20m
Max Wind Speed: <60m/s
Snow Load:<1.4KN/m2
Standard: AS/NZS 1170, EN 1090
Material: High Class Aluminum alloy Al 6005 T5 and Stainless Steel 304
Color: Natural and Customized
Warranty: 12 years and 25 years lifespan

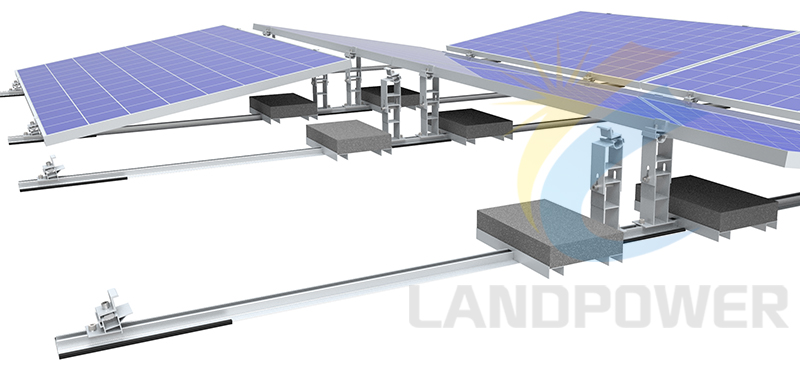

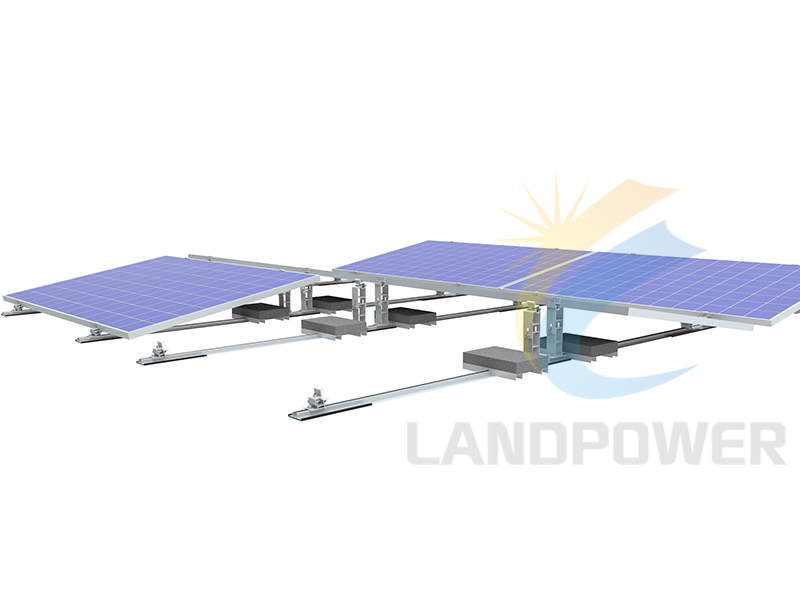

The Mounting System Overview

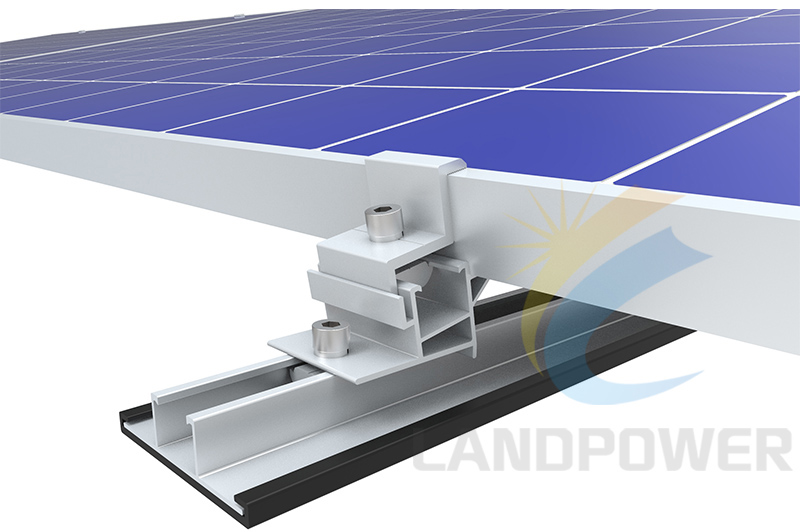

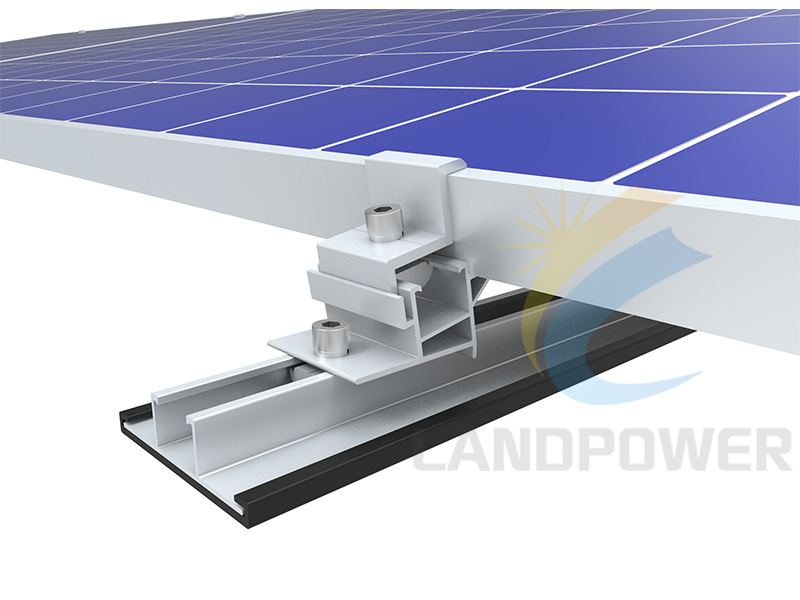

The mounting rail is with EPDM mat to increase friction on roof and compensates for tolerances

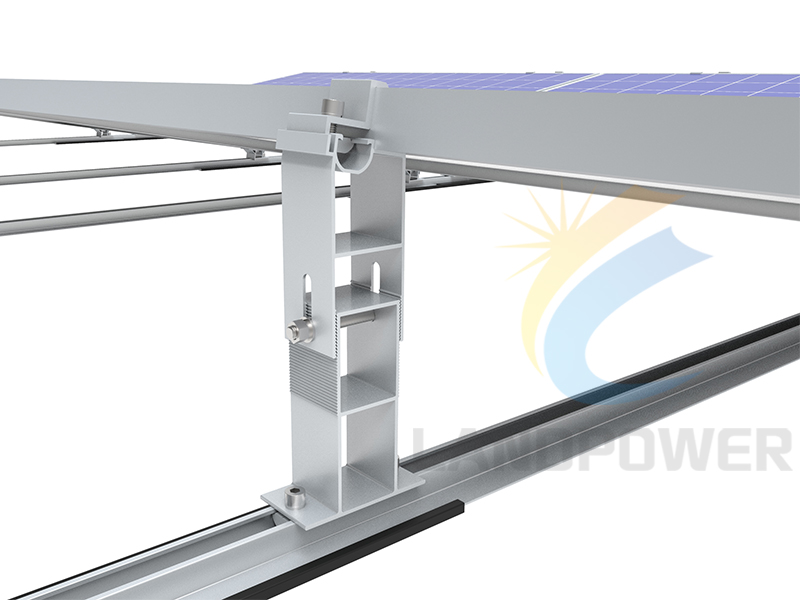

Adjustable design for rear supports which allows adjustable room for different side of panels and compensateds tolerances.
We are design many types of flat roof mouting for long side and short side fixing,please contact us if you have specific projects.
