East West Flat Roof Ballasted Solar Mounting

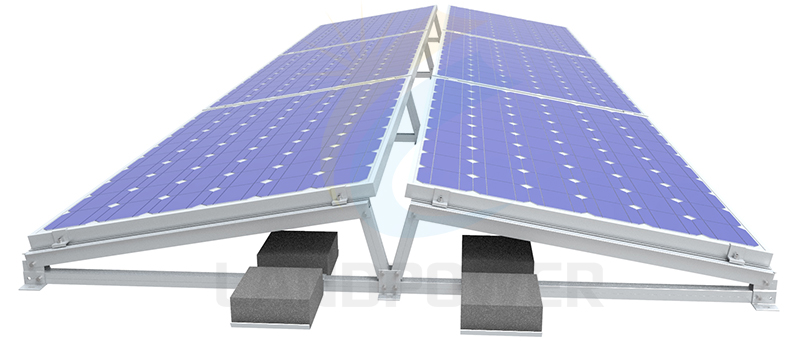

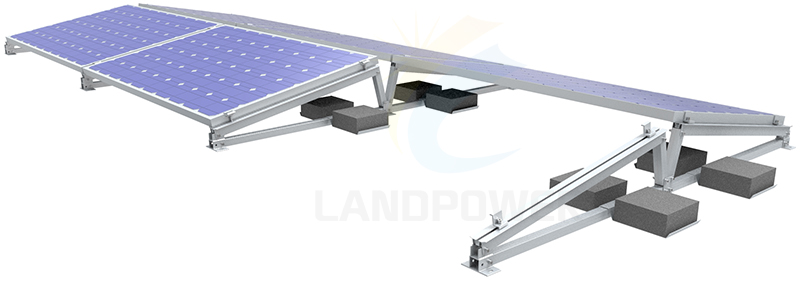

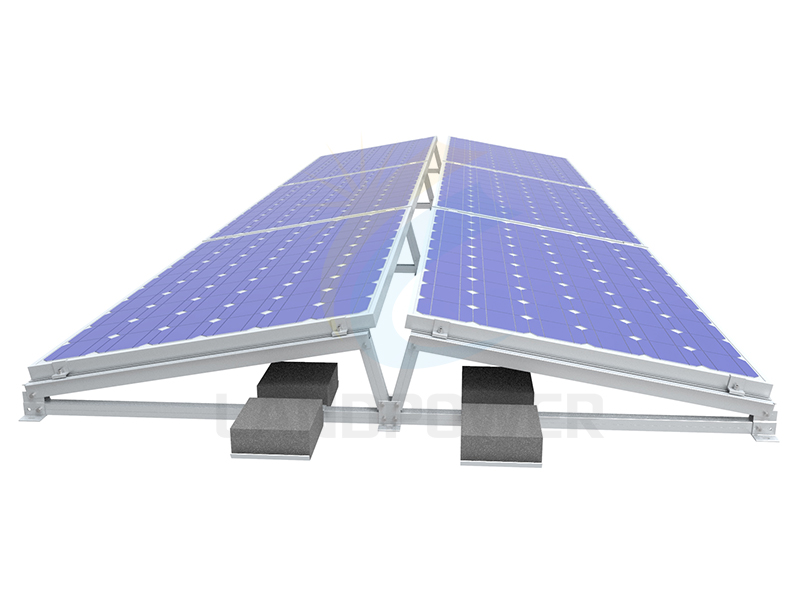

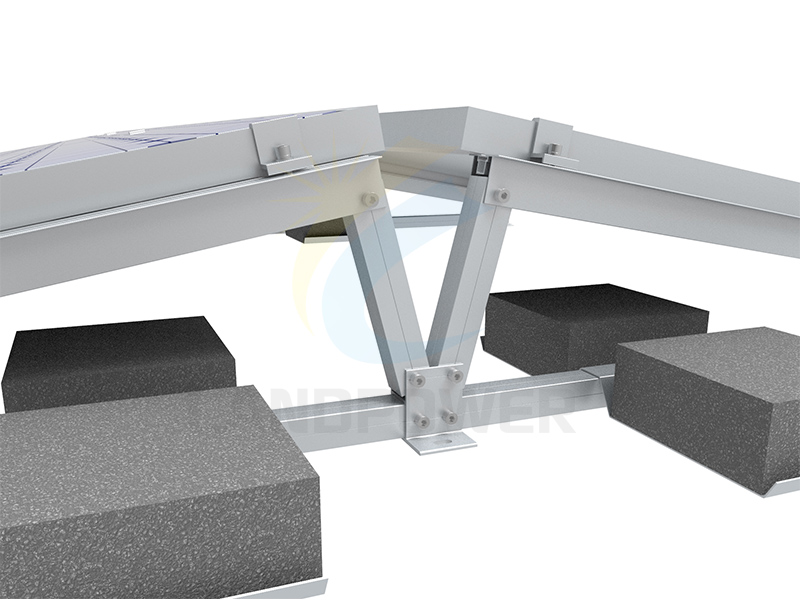

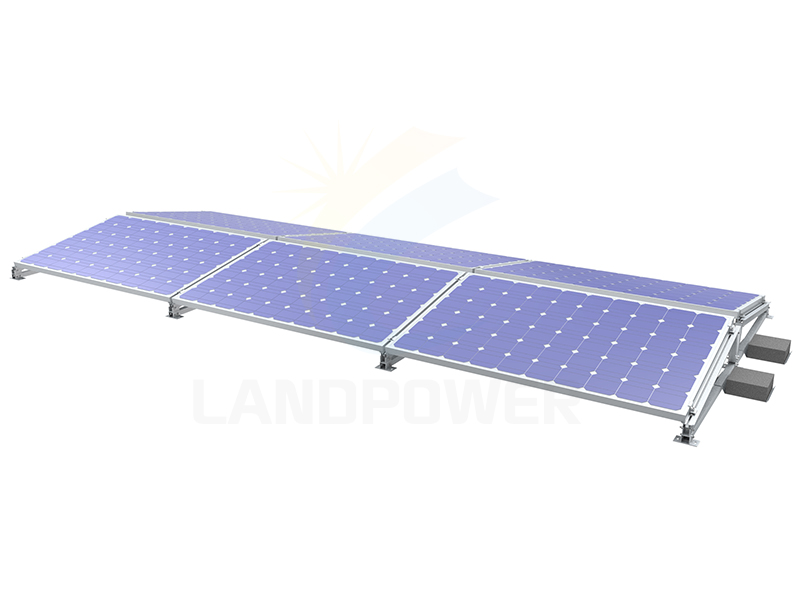

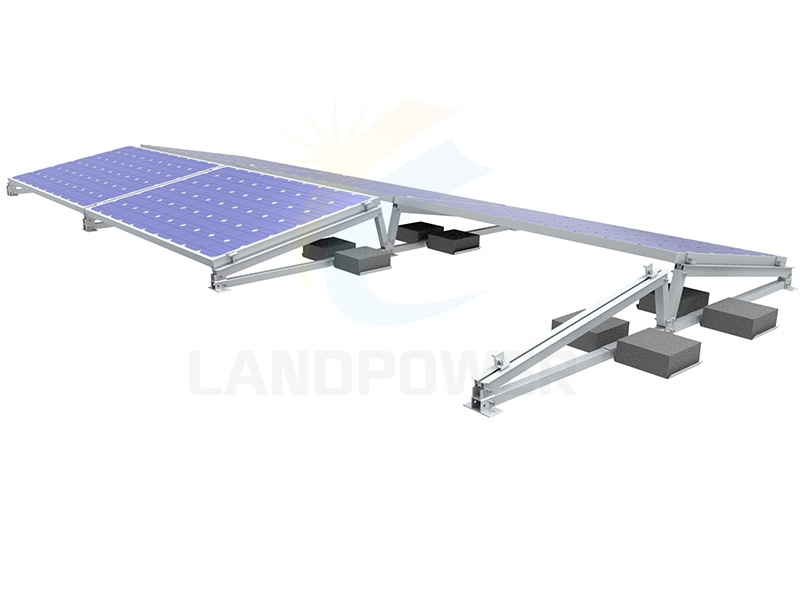

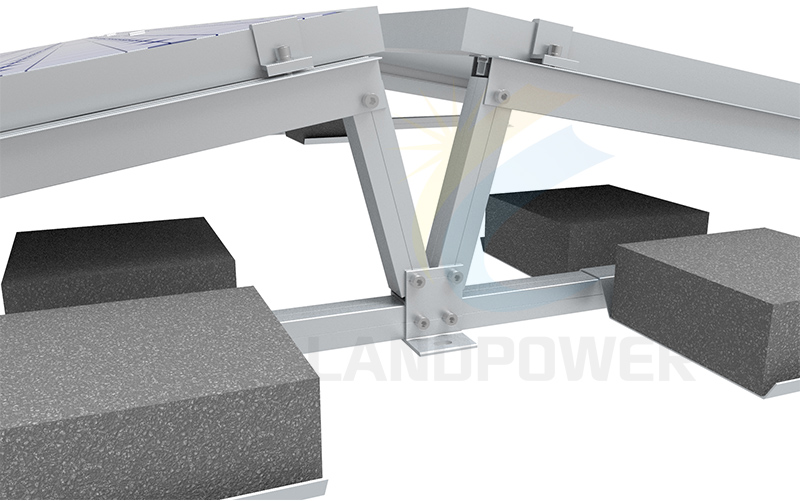

The East and West Ballasted Flat Roof Mounting is easy and quick solution for flat roof and low pitched roof solar installation. The simple mounting structure just coming with pre-assembled triangle,min clamp,end clamp, wind shield and ballasted plate,by adding a inner tube,the tilt up angle can be adjustable. There are various connections to roof,such by ballasted plate,ballasted concrete,or directly fixed by concrete anchor.

TECHNICAL INFORMATION

Install site ： Flat Roof ,Low Pitched Roof

Tilt Angle ： Flushed with the roof （ 10~ 45 deg ）

Building Height ： Up to 20 m

Max Wind Speed ： <60m/s

Snow Load ： <1.4KN/m2

Standard ： EN 1090, AS/NZS 1170 and other international Standard

Material ： Aluminum alloy Al6005-T5& Stainless steel 304 (A2),EPDM

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty ： 12 years warranty and twenty- year service life

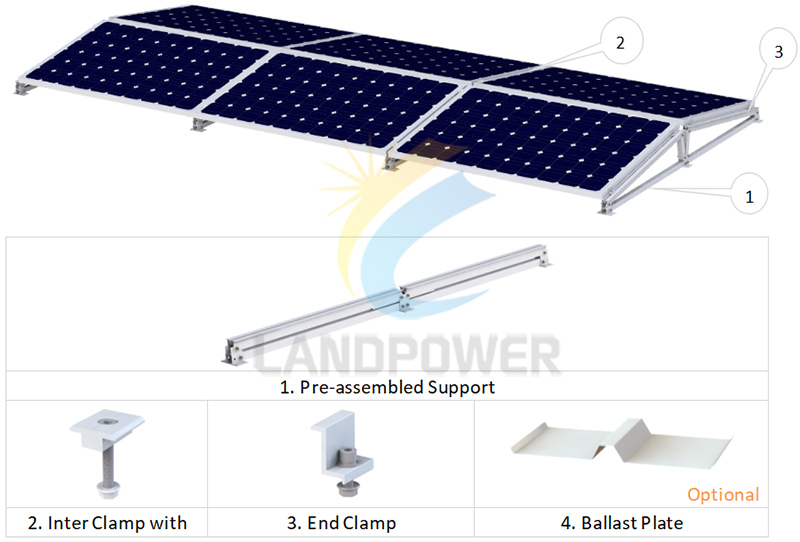

Main parts for the Landscape Flat Roof Mounting Structure:

Installation video for reference

For the Flat Roof Ballasted Mounting,we are engineering various solutions for different conditions,like south facing flat roof ballasted mounting, east west facing mounting structure and more simple flat roof mounting,feel free to contact us for special projects.
