Smart EV Charger
Deye Smart EV Charger can be directly connected to any AC port of the inverter and is controlled by the inverter via LoRa communication. It offers flexible options to take advantage of low-cost electricity, with modes such as Plug and Play, Time of Charge, or Solar Energy Only.
| Subcategory | EV Charger |
|---|---|
| Product Page | https://www.deyeinverter.com/product/ev-charger/ev-charger.html |
| Listing Page | https://www.deyeinverter.com/product/ev-charger/ |
| Category Page | https://www.deyeinverter.com/product/ev-charger/ |
Overview
Smart EV Charger Deye Smart EV Charger can be directly connected to any AC port of the inverter and is controlled by the inverter via LoRa communication. It offers flexible options to take advantage of low-cost electricity, with modes such as Plug and Play, Time of Charge, or Solar Energy Only.
Feature

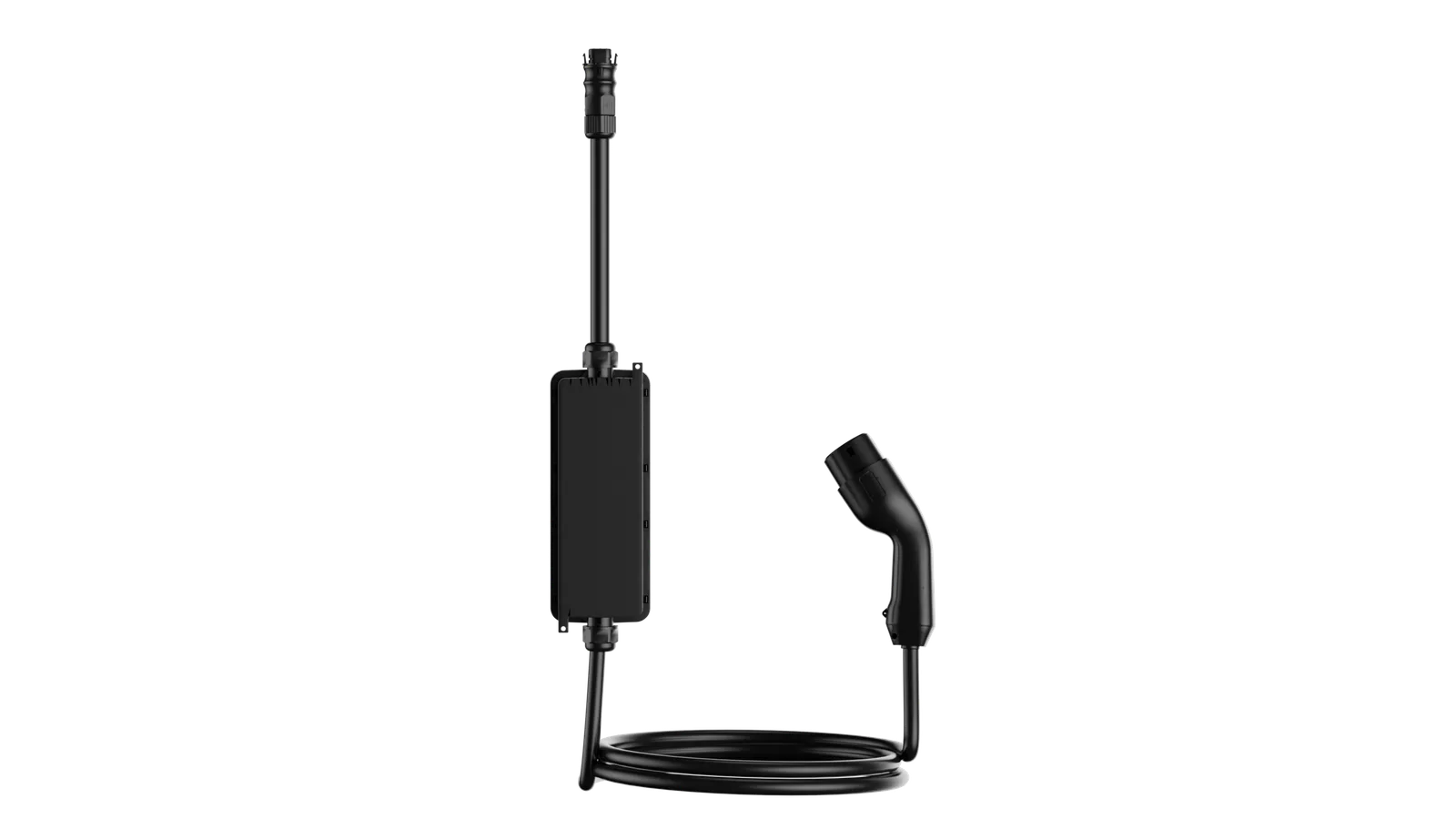

Type B leakage & 6mA DC fault protection
Feature

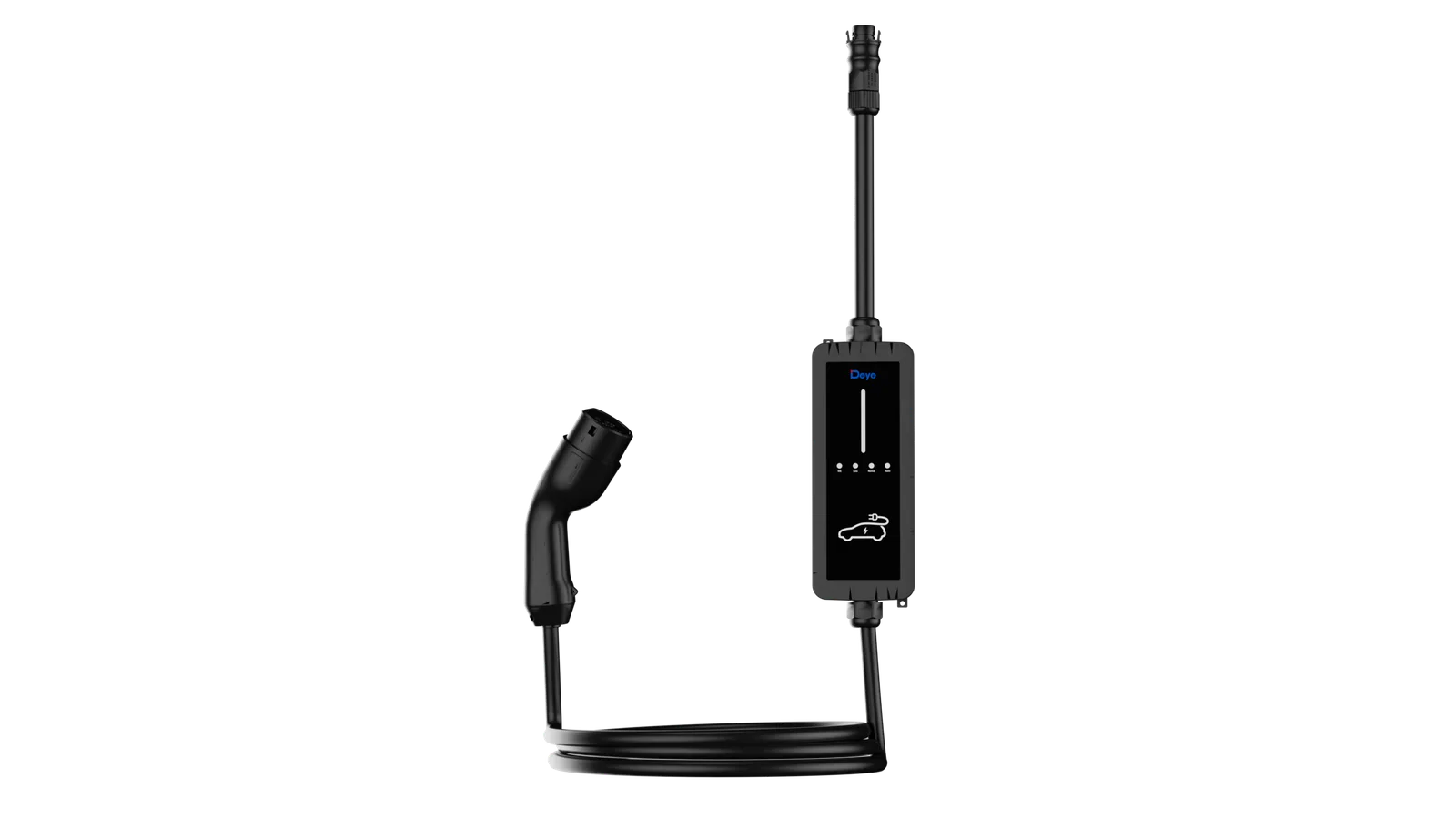

IP66 rated for outdoor use
Feature
Auto charging via time and solar-only mode
Feature
Real-time power monitoring and control via Deye Cloud
Feature
Supports 7/11/22kW multi-power charging
Feature
Supports single-phase & three-phase power charging
Feature
Low latency
Feature
Long-range communication
Feature
Offline operation
Specifications
| Model | SUN-EVSE11K01-EU-AC | SUN-EVSE22K01-EU-AC |
|---|---|---|
| Product Parameter | ||
| Input Voltage/Range (V) | 230/400 | 230(single phase), 230/400(three phase) |
| Connection Mode | 3L+N+PE | L+N+PE,3L+N+PE |
| Input Current (A) | 16 | 32 |
| Input Frequency/Range | 50Hz (45Hz-55Hz)/60Hz (55Hz-65Hz) | |
| Maximum Output Power (kW) | 11 | 7(single phase)/ 22(three phase) |
| Starting Method | Plug and Play /Scheduled Charging | |
| Equipment Protection | ||
| Over Temperature Protection | Yes | |
| Low Temperature Protection | Yes | |
| Over Voltage Protection | Yes | |
| Under Voltage Protection | Yes | |
| Short Circuit Protection | Yes | |
| Over Load Protection | Yes | |
| Earth Fault Protection | Yes | |
| Leakage Current Protection | DC 6mA | |
| Surge Protection Level | TYPE II | |
| General Data | ||
| Operating Temperature Range (°C) | -40 to +55℃ | |
| Permissible Ambient Humidity | 5%~95% No condensation | |
| Permissible Altitude (m) | <3000 | |
| Noise (dB) | ≤25 | |
| Ingress Protection(IP) Rating | IP 66 | |
| Cabinet Size (WxHxD mm) | 104x264x57.5 | |
| Weight (kg) | 3.7 | |
| Gun Cable Length (m) | 4.2 | |
| Number Of Charging Guns | 1 | |
| MTBF | 100,000h | |
| Safety EMC/Standard | EN IEC 61851-1:2019, IEC 61851-1:2017, EN 300 220-2 V3.1.1:2017, EN 300 328 V2.2.2:2019, EN IEC 62311:2020, EN 301 489-1 V2.2.3:2019, EN 301 489-3 V2.3.2:2023, EN 301 489-17 V3.3.1:2024, EN IEC 61000-6-1:2019 EN IEC 61000-6-3:2021, EN IEC 61851-21-2:2021 | |
| Interface | ||
| Communication Mode | LoRa/Wi-Fi/BLE | |
