Hybrid InverterSplit Phase Hybrid Inverter5-8kW
SUN-5/6/7.6/8K-SG01LP1-US
Split Phase Hybrid Inverter | 5-8kW | 2 MPPT | LV Battery Supported
Split Phase Hybrid Inverter5-8kW2 MPPTLV Battery Supported
Send InquiryOverview
SUN-5/6/7.6/8K-SG01LP1-US Split Phase Hybrid Inverter | 5-8kW | 2 MPPT | LV Battery Supported
Product Highlights
Features
01

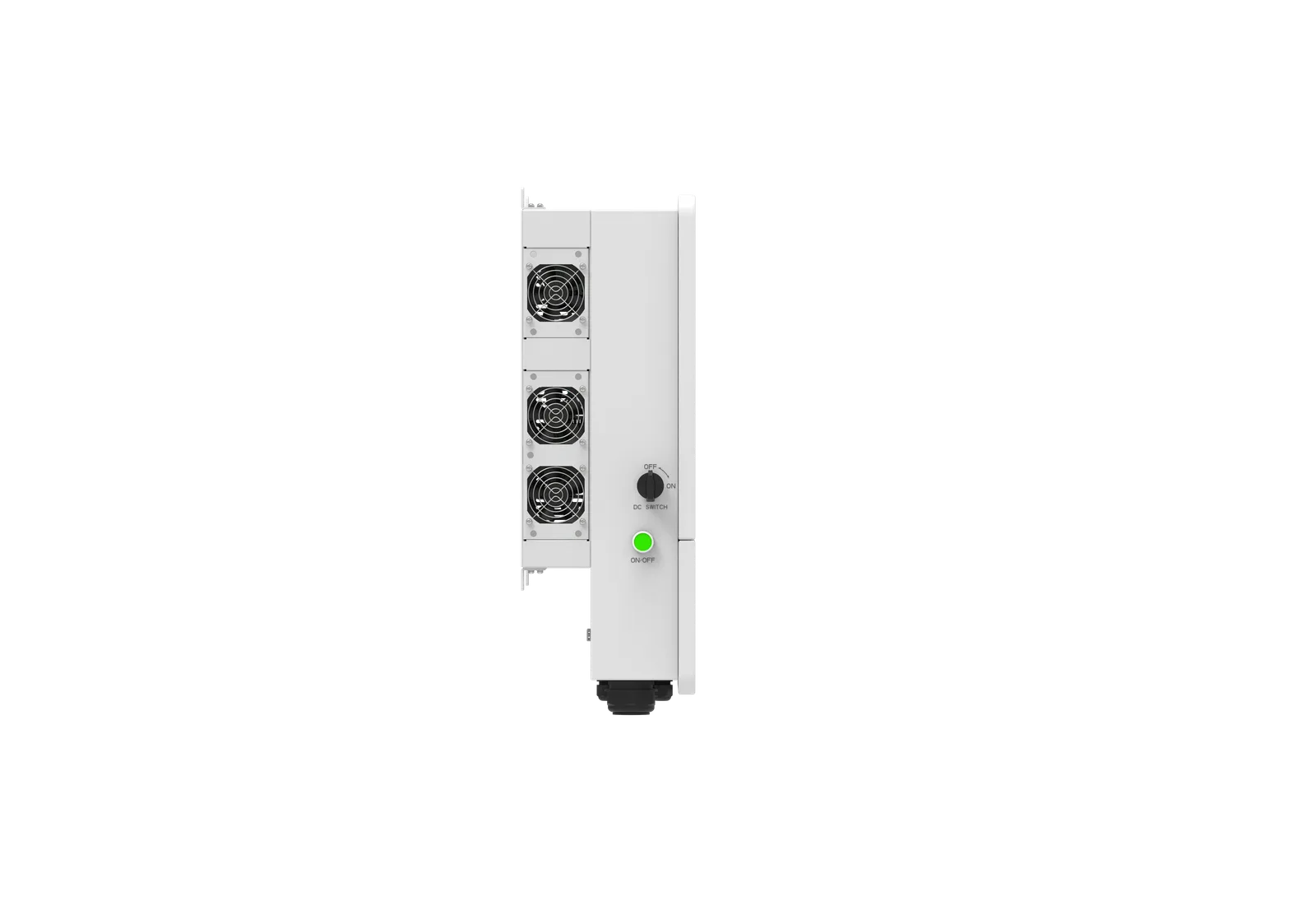

Colorful touch LCD, IP65 protection degree
02

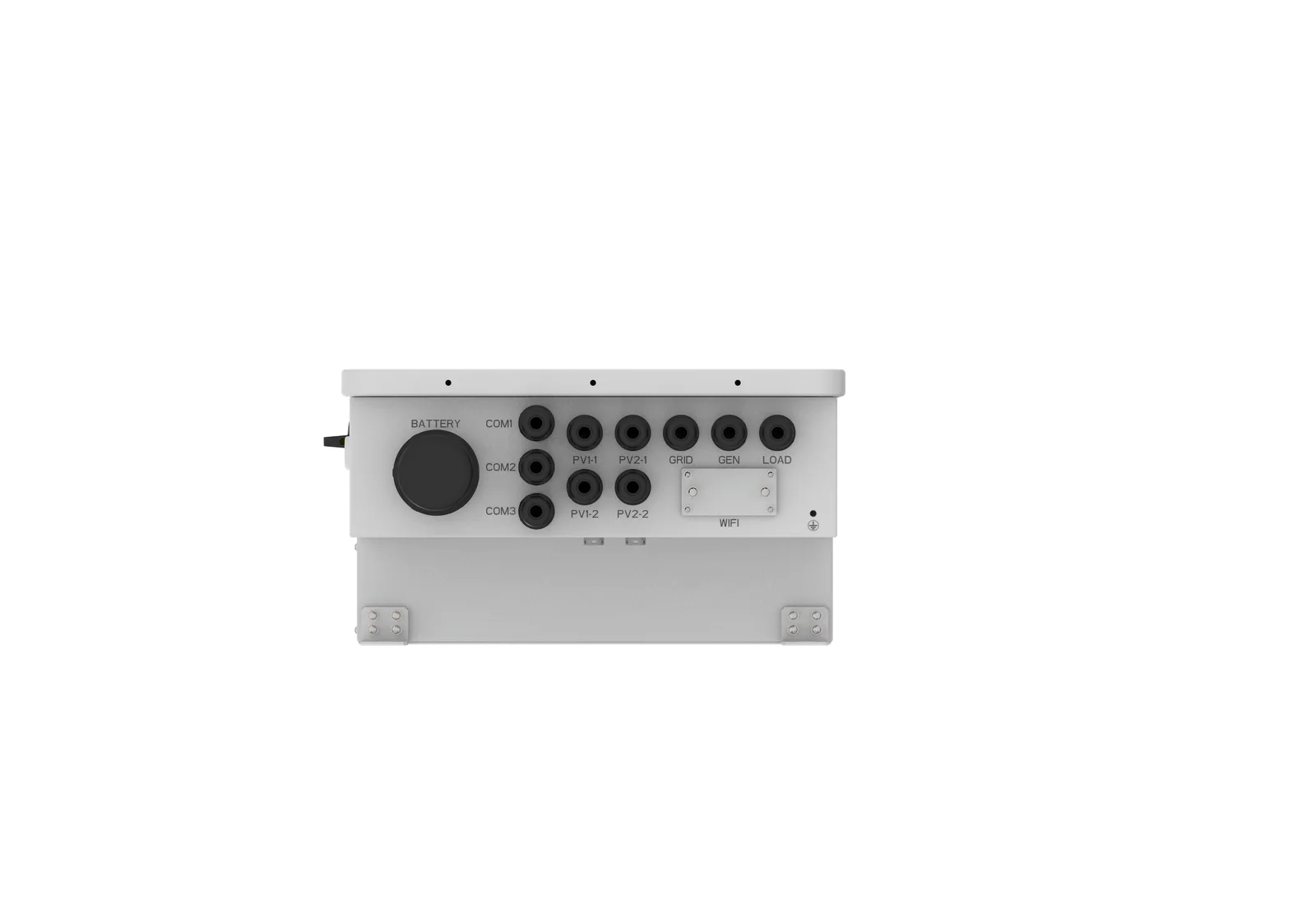

6 time periods for battery charging/discharging
03

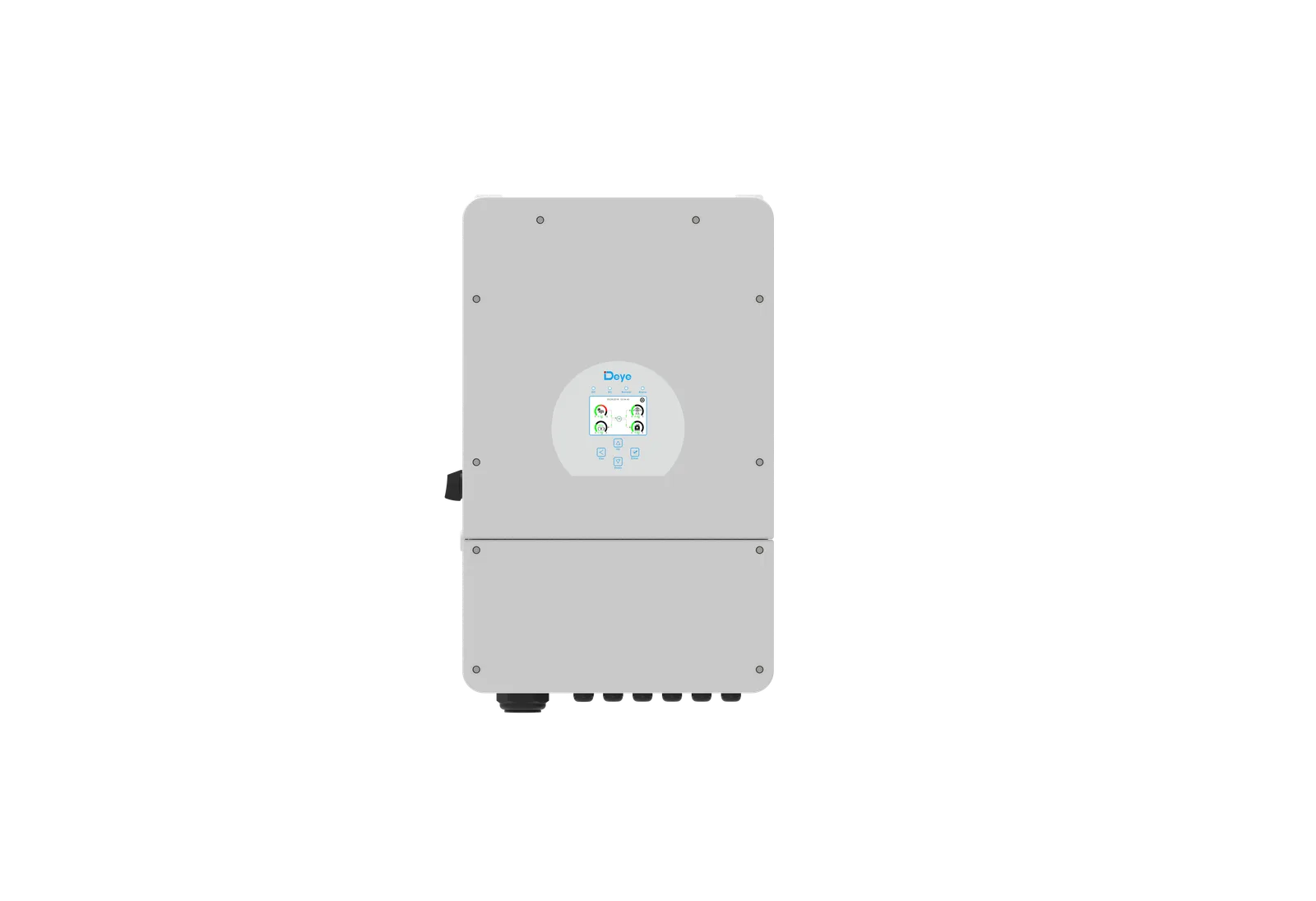

Max. charging/discharging current of 190A
04

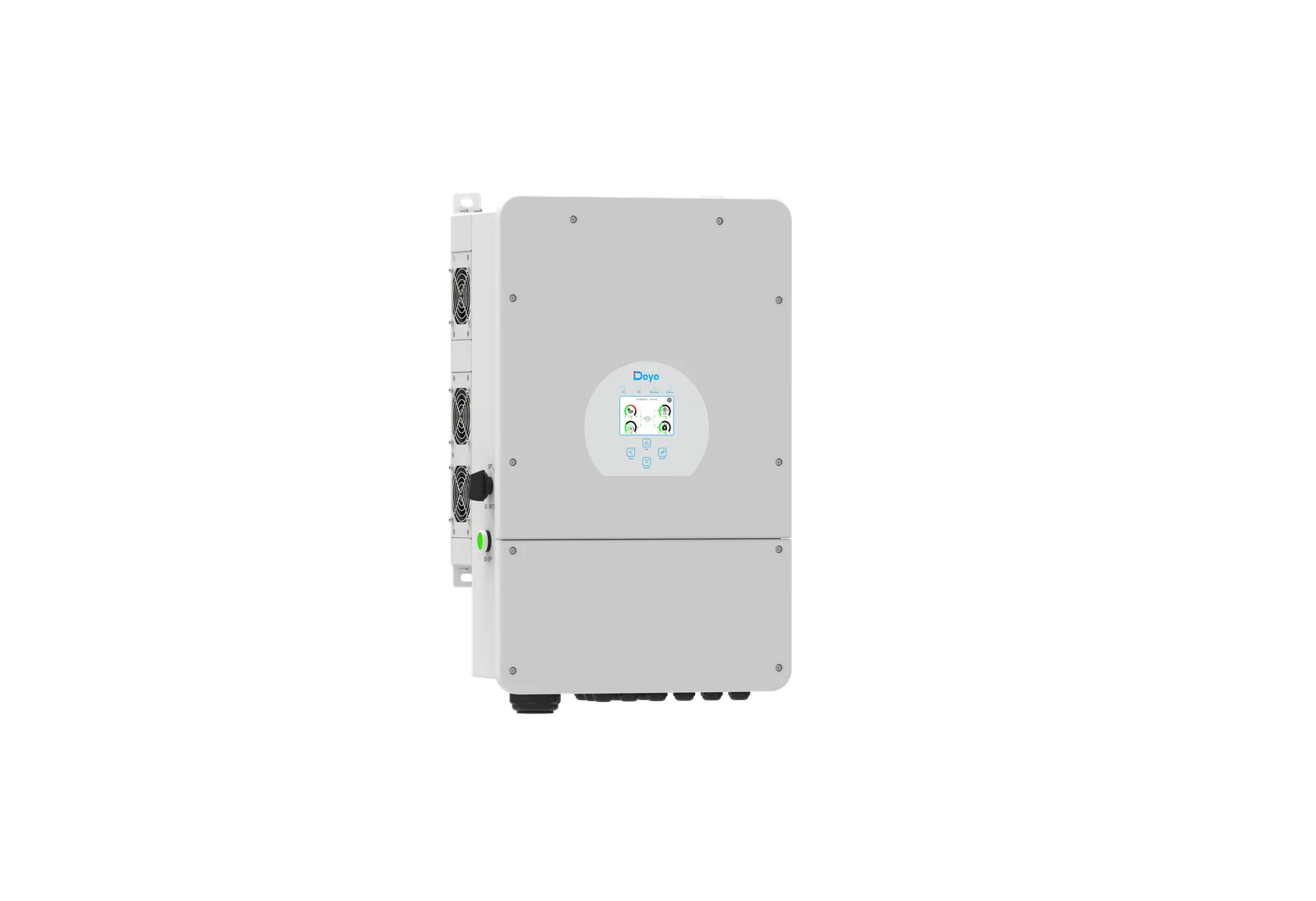

AC couple to retrofit existing solar system
05

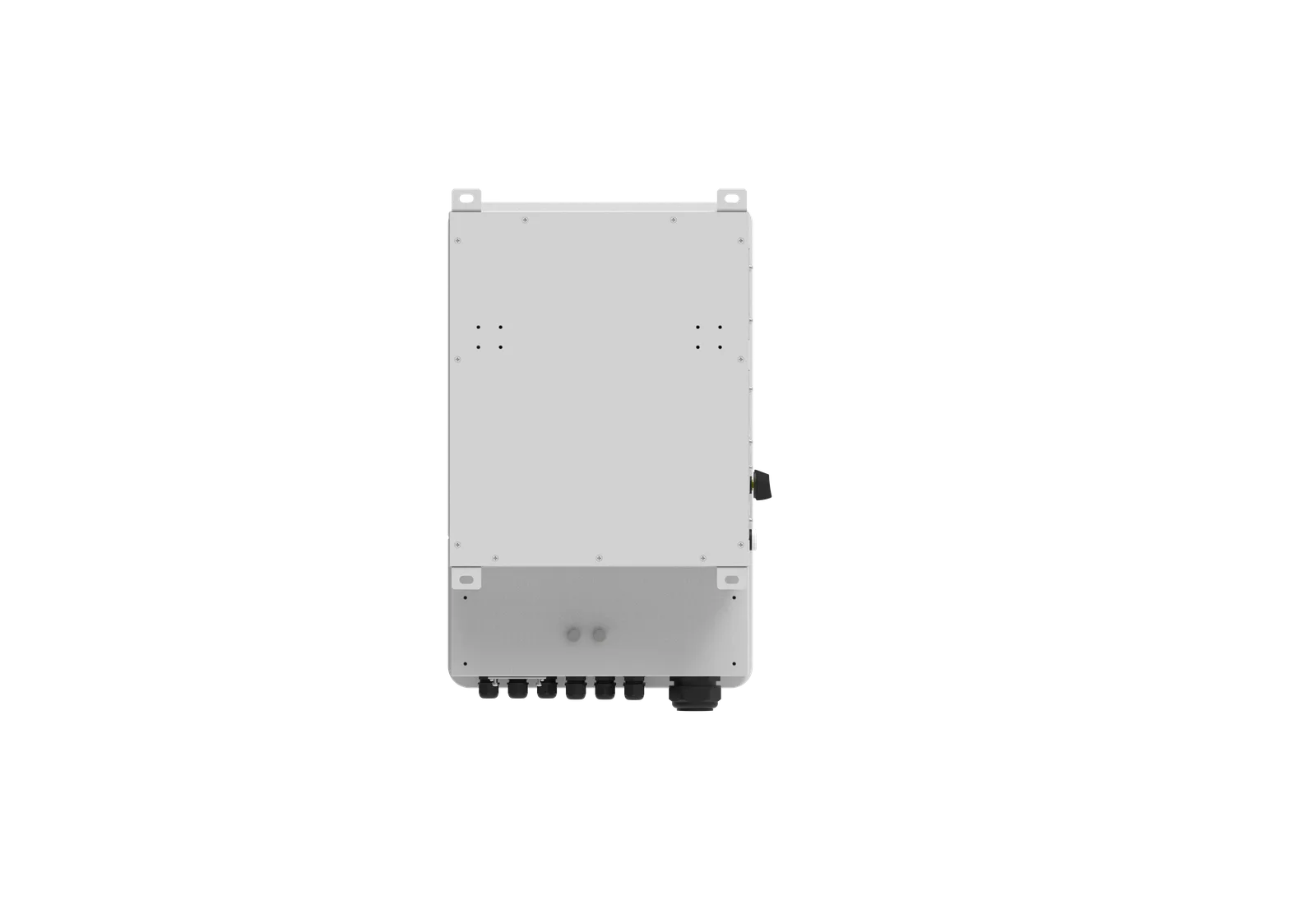

Support storing energy from diesel generator
06
Max. 16 pcs parallel for on-grid and off-grid
07
operation; Support multiple batteries parallel
Specifications
| Model | SUN-5K-SG01LP1-US | SUN-6K-SG01LP1-US | SUN-7.6K-SG01LP1-US | SUN-8K-SG01LP1-US |
|---|---|---|---|---|
| Battery Input Data | ||||
| Battery Type | Lead-acid or Lithium-ion | |||
| Battery Voltage Range(V) | 40-60 | |||
| Max.Charging/Discharging Current(A) | 120 | 135 | 190 | 190 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||
| Number of battery input | 1 | |||
| PV String Input Data | ||||
| Max. PV Input Power（W） | 6500 | 7800 | 9880 | 10400 |
| Max. PV Input Voltage（V） | 500 | |||
| Start-up Voltage（V） | 125 | |||
| MPPT Voltage Range（V） | 150-425 | |||
| Rated PV Input Voltage(V) | 370 | |||
| Max. Operating PV Input Current（A） | 13+13 | 26+13 | 26+26 | |
| Max. Input Short-Circuit Current（A） | 22+22 | 44+22 | 44+44 | |
| No.of MPP Trackers/No.of Strings MPP Tracker | 2/1+1 | 2/2+1 | 2/2+2 | |
| AC Input/Output Data | ||||
| Rated AC Input/Output Active Power（W） | 5000 | 6000 | 7600 | 8000 |
| Max. AC Input/Output Apparent Power （VA） | 5500 | 6600 | 8360 | 8800 |
| Rated AC Input/Output Current（A） | 20.8 | 25 | 31.7 | 33.3 |
| Max. AC Input/Output Current（A） | 22.9 | 27.5 | 34.8 | 36.7 |
| Max Continuous AC Passthrough (grid to load)（A） | 40 | 50 | ||
| Peak Power (off-grid)（W） | 2 times of rated power,10s | |||
| Power Factor Adjustment Range | 0.8 leading to 0.8lagging | |||
| Rated Input/Output Voltage | 120/240; 208 0.88Un＜ U＜ 1.1Un 2L+N+PE | |||
| Rated Input/Output Grid Frequency/Range | 60Hz/55Hz-65Hz | |||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||
| DC Injection Current | <0.5%ln | |||
| Efficiency | ||||
| Max. Efficiency | 97.6% | |||
| Euro Efficiency | 96.5% | |||
| MPPT Efficiency | ＞99% | |||
| Equipment Protection | ||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | |||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||
| Interface | ||||
| LCD/LED Display | LCD | |||
| Communication Interface | WIFI,RS485 | |||
| General Data | ||||
| Operating Temperature Range(℃) | -40 to +60℃, >45℃ Derating | |||
| Permissible Ambient Humidity | 0~100% | |||
| Permissible Altitude | 2000m | |||
| Noise(dB) | ＜30 | |||
| Ingress Protection(IP) Rating | TYPE3R | |||
| Inverter Topology | Non-Isolated (solar), Isolated (battery) | |||
| Over Voltage Category | OVC II(DC),OVC IV(AC) | |||
| Cabinet size（W*H*D）[mm] | 420×670×233（Excluding connectors and brackets） | |||
| Weight[kg] | 30 | |||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||
| Type Of Cooling | Intelligent air cooling | |||
| Grid Regulation | EN 50549,UNE 217002,NRS 097,IEEE 1547.1,SRD V2.0 | |||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||
