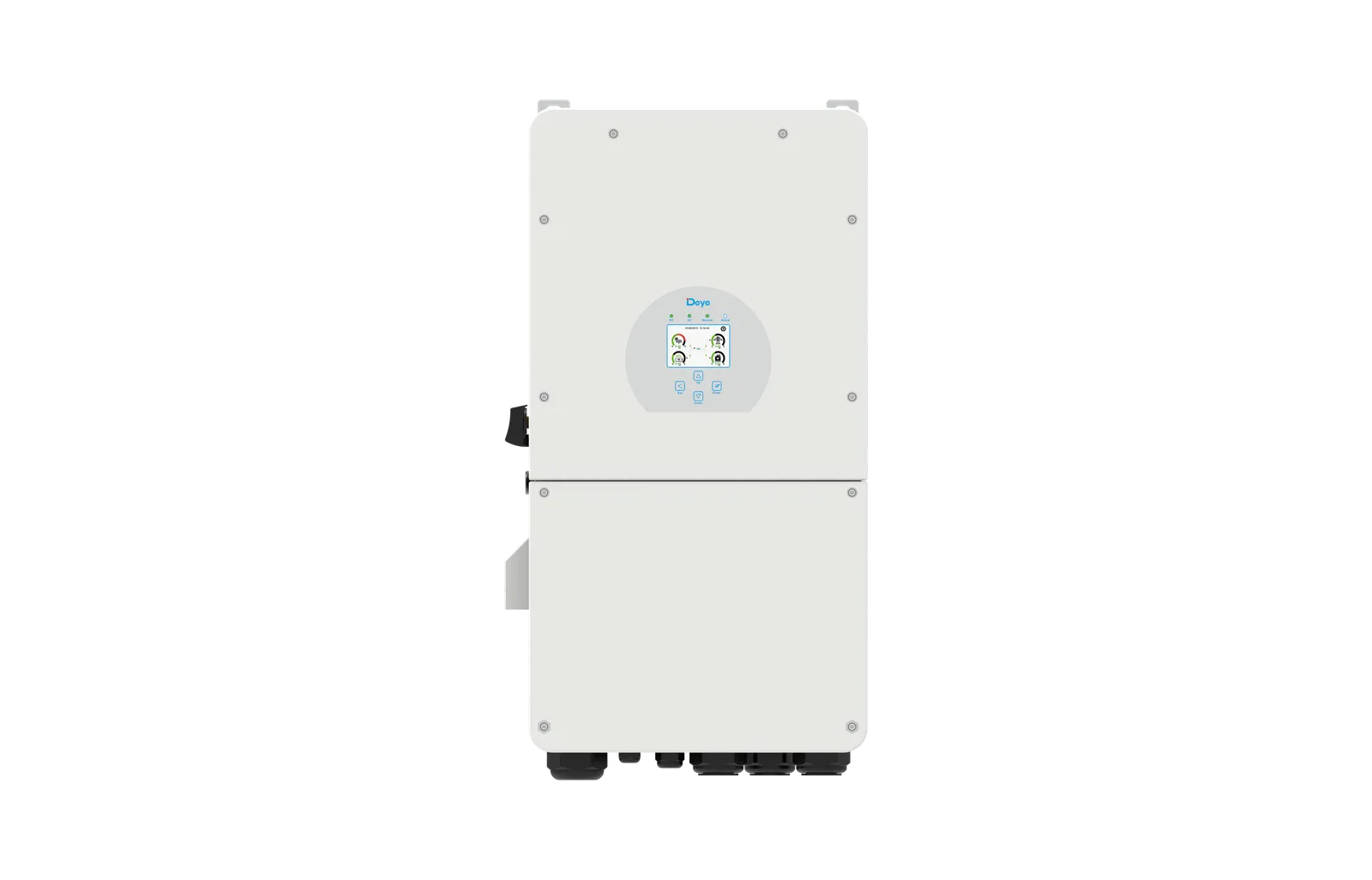

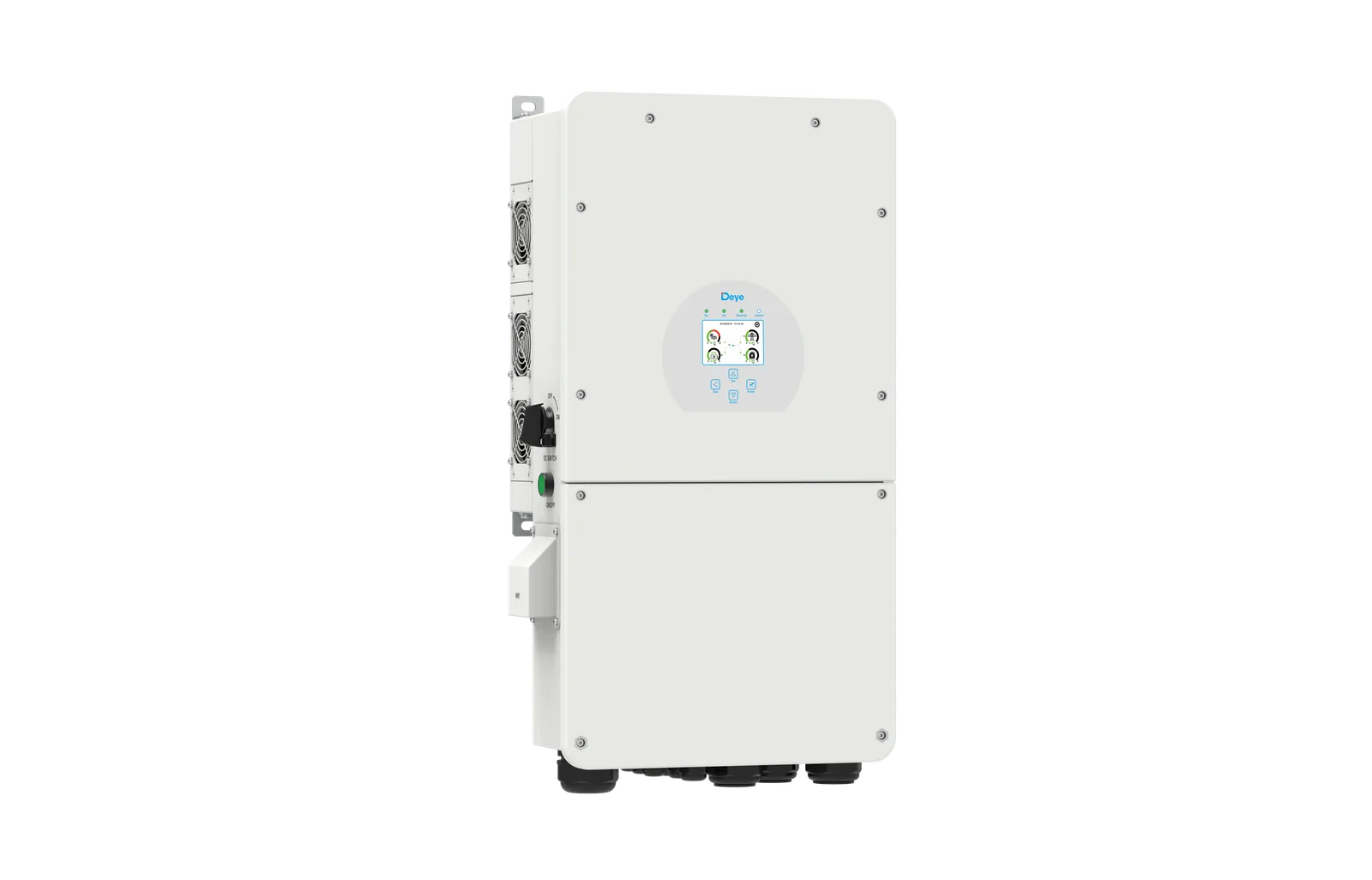

Hybrid InverterSplit Phase Hybrid Inverter7.6-12kW
SUN-7.6/8/10/12K-SG02LP2-US-AM2/AM3-P
Split Phase Hybrid Inverter | 7.6-12kW | 2/3 MPPT | LV Battery Supported
Split Phase Hybrid Inverter7.6-12kW2/3 MPPTLV Battery Supported
Send InquiryOverview
SUN-7.6/8/10/12K-SG02LP2-US-AM2/AM3-P Split Phase Hybrid Inverter | 7.6-12kW | 2/3 MPPT | LV Battery Supported
Product Highlights
Features
01
Colorful touch LCD, IP65 protection degree
02
AC couple to retrofifit existing solar system
03
Max. 16 pcs parallel for on-grid and off-grid
04
operation; Support multiple batteries parallel
05
Max. charging/discharging current of 250A
06
Support storing energy from diesel generator
07
6 time periods for battery charging/discharging
Specifications
| Model | SUN-7.6K-SG02LP2-US-AM2-P | SUN-8K-SG02LP2-US-AM2-P | SUN-10K-SG02LP2-US-AM3-P | SUN-12K-SG02LP2-US-AM3-P |
|---|---|---|---|---|
| Battery Input Data | ||||
| Battery Type | Lead-acid or Lithium-ion | |||
| Battery Voltage Range(V) | 40-60 | |||
| Max.Charging Current(A) | 190 | 190 | 220 | 250 |
| Max.Discharging Current(A) | 190 | 190 | 220 | 250 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||
| Number of battery input | 1 | |||
| PV String Input Data | ||||
| Max DC Input Power（W） | 11400 | 12000 | 15000 | 18000 |
| Max DC Input Voltage（V） | 500 | |||
| Start-up Voltage（V） | 125 | |||
| MPPT Voltage Range（V） | 150-425 | |||
| Rated DC Input Voltage(V) | 370 | |||
| Max. Operating PV Input Current (A) | 32+32 | 32+32+32 | ||
| Max. Input Short-Circuit Current (A) | 60+60 | 60+60+60 | ||
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/2+2 | 3/2+2+2 | ||
| AC Input/Output Data | ||||
| Rated AC Input/Output Active Power（W） | 7600 | 8000 | 10000 | 12000 |
| Max AC Input/Output Apparent Power （VA） | 8630 | 8000 | 10000 | 12000 |
| Peak Power (off-grid)（W） | 2 times of rated power, 10s | |||
| Rated AC Input/Output Current（A） | 31.7 | 33.4 | 41.7 | 50 |
| Max AC Input/Output Current（A） | 31.7 | 33.4 | 41.7 | 50 |
| Max. Continuous AC Passthrough (grid to load) (A) | 200 | |||
| Rated Input/Output Voltage/Range(V) | 120/240, 120/208 0.88Un-1.1Un | |||
| Grid Connection Form | 2L+N+PE | |||
| Rated Input/Output Grid Frequency/Range | 60/55-65 | |||
| Power Factor Adjustment Range | 0.8 leading to 0.8lagging | |||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||
| DC Injection Current | <0.5%ln | |||
| Efficiency | ||||
| Max Efficiency | 97.6% | |||
| Euro Efficiency | 96.5% | |||
| MPPT Efficiency | ＞99% | |||
| Equipment Protection | ||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | |||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | |||
| Interface | ||||
| LCD/LED display | LCD | |||
| Communication Interface | WIFI,RS485 | |||
| General Data | ||||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | |||
| Permissible Ambient Humidity | 0-100% | |||
| Permissible Altitude | 2000m | |||
| Noise | ≤ 45 | |||
| Ingress Protection(IP) Rating | TYPE 3R | |||
| Inverter Topology | Non-Isolated | |||
| Over Voltage Category | OVC II(DC),OVC IV(AC) | |||
| Cabinet size（W*H*D）[mm] | 450×800×243（Excluding connectors and brackets） | |||
| Weight[kg] | 40 | |||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||
| Type Of Cooling | Intelligent air cooling | |||
| Grid Regulation | IEEE 1547.1, SRD V2.0 | |||
| Safety EMC/Standard | FCC, UL 1741 | |||
