Hybrid InverterSplit Phase Hybrid Inverter4.95-8kW
SUN-4.95/5.5/8K-SG02HP2-JP-FM4
Single Phase Hybrid Inverter | 4.95-8kW | 4 MPPT | HV Battery Supported
Single Phase Hybrid Inverter4.95-8kW4 MPPTHV Battery Supported
Downloads
Overview
SUN-4.95/5.5/8K-SG02HP2-JP-FM4 Single Phase Hybrid Inverter | 4.95-8kW | 4 MPPT | HV Battery Supported
Product Highlights
Features
01
Equipped with stand-alone operation and grid-connected operation functions
02

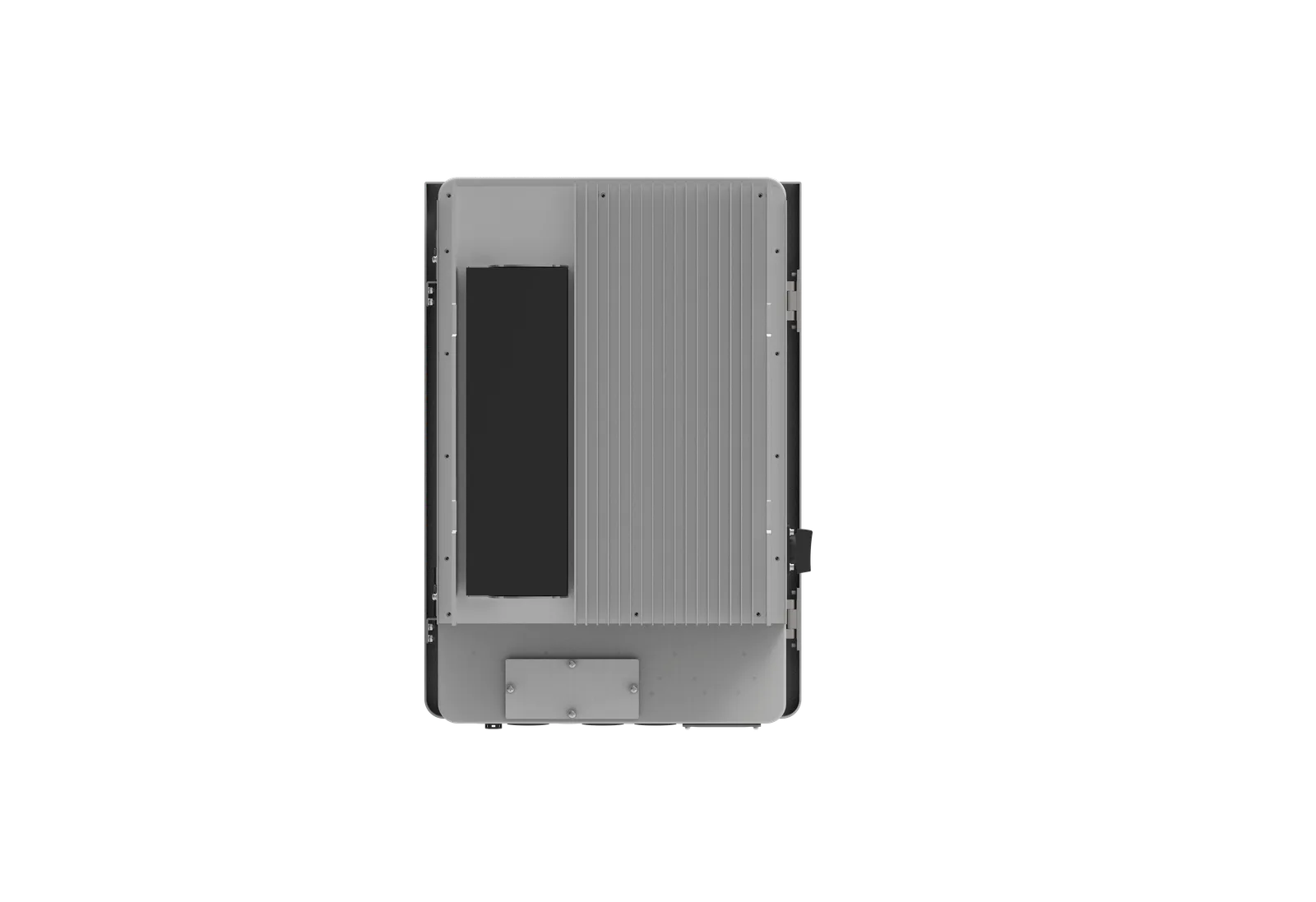

Anti-reverse power flow function measures
03

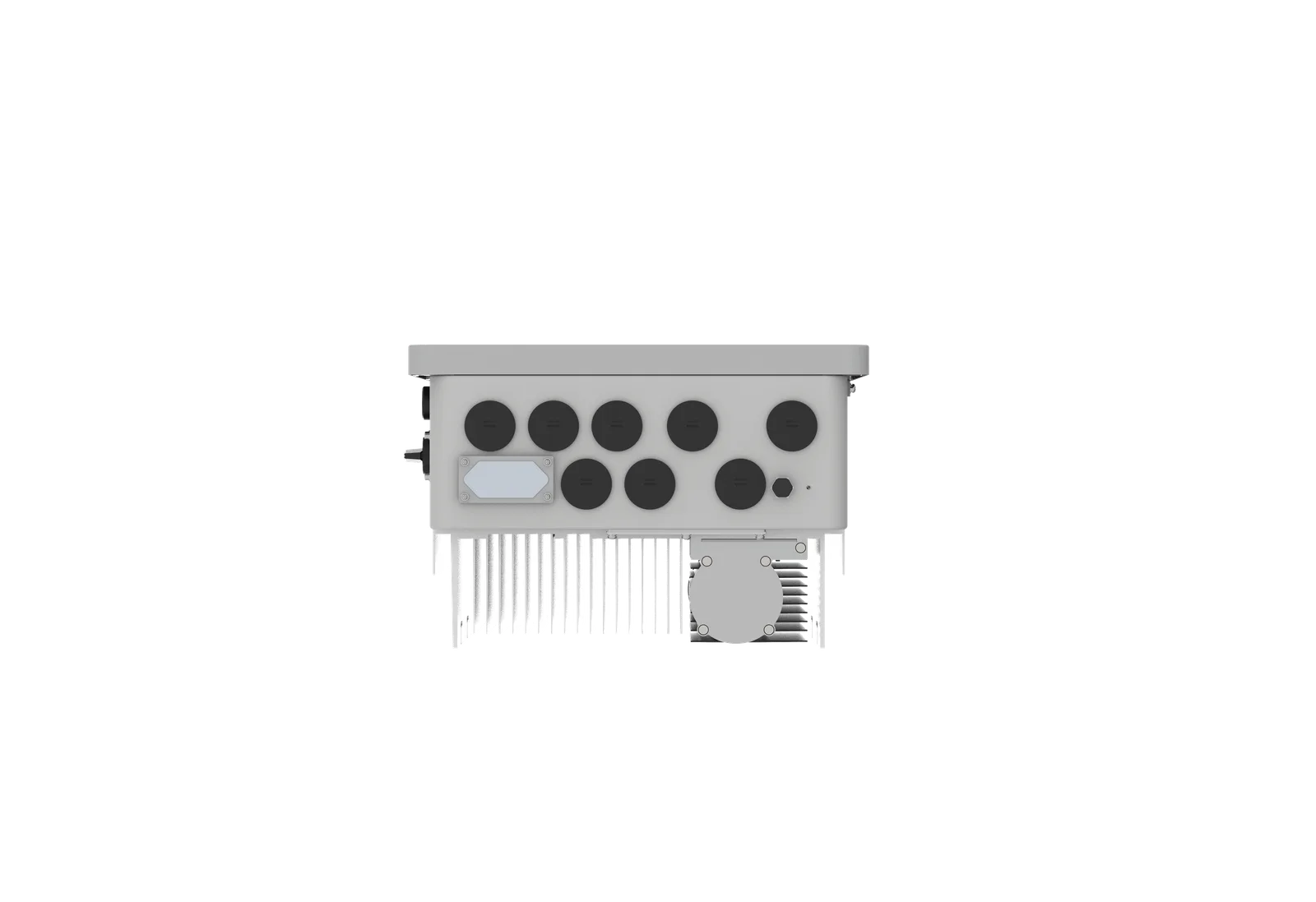

Supports 101V/202V loads
04

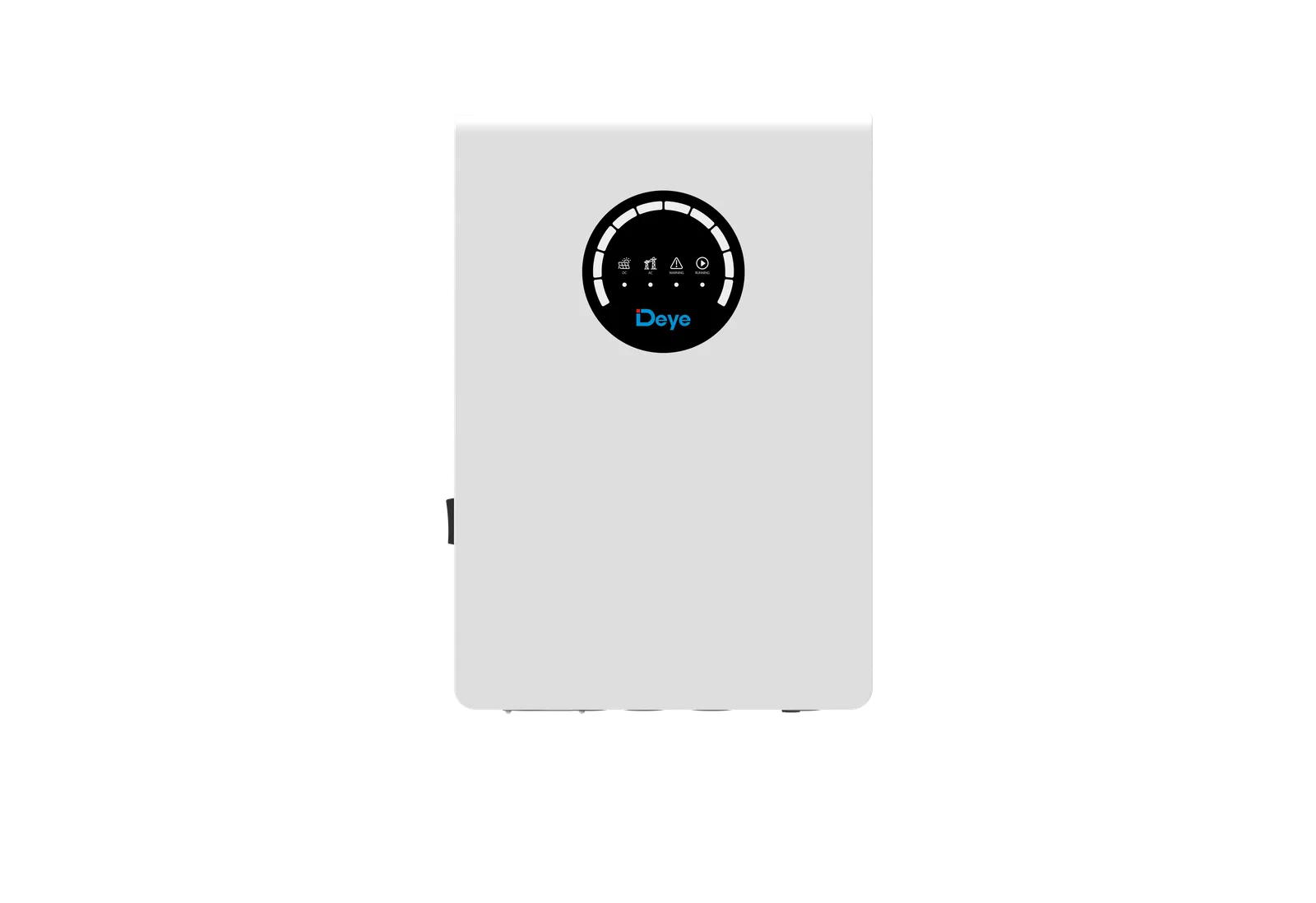

Supports single-function and full-load operation
Specifications
| Model | SUN-4.95K-SG02HP2-JP-FM4 | SUN-5.5K-SG02HP2-JP-FM4 | SUN-8K-SG02HP2-JP-FM4 |
|---|---|---|---|
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range (V) | 80-500 | ||
| Max. Charging Current (A) | 50 | ||
| Max. Discharging Current (A) | 50 | ||
| Battery Charging Method | Self-adaptation to BMS | ||
| Number of Battery Inputs | 1 | ||
| PV Input Data | |||
| Max. DC Allowable Connected Power (W) | 10000 | 11000 | 16000 |
| Max. DC Input Power (W) | 8000 | 8800 | 12600 |
| Max. DC Input Voltage (V) | 500 | ||
| Start-up Voltage (V) | 70 | ||
| MPPT Voltage Range (V) | 50-450 | ||
| Rated DC Input Voltage (V) | 350 | ||
| Full Load MPPT Voltage Range (V) | 250-450 | ||
| Max. Input Short Circuit Current (A) | 30+30+30+30 | ||
| PV Input Current (A) | 20+20+20+20 | ||
| Number of MPPT Circuits Number of Strings per MPPT | 4/1+1+1+1 | ||
| AC Output Data | |||
| Rated AC Output Active Power (W) | 4950 | 5500 | 8000 |
| Max. AC Output Apparent Power (VA) | 5440 | 6050 | 8800 |
| Rated AC Output Current (A) | 24.6 | 27.3 | 39.7 |
| Max. AC Output Current (A) | 27 | 30 | 43.6 |
| Max. Continuous AC Bus Pass-Through Current (Grid to Load) (A) | 80 | ||
| Peak Power (Off-Grid) (W) | 1.5times of rated power,10s | ||
| Power Factor Adjustment Range | 0.8 leading – 0.8 lagging | ||
| Rated Output Voltage / Range (V) | 101/202V, 0.85Un - 1.1Un | ||
| Rated Frequency / Range | 50Hz / 45Hz-55Hz, 60Hz / 55Hz-65Hz | ||
| Electrical System | Split Phase three-wire (supports 101V and 202V) | ||
| Current Harmonic Distortion (THDi) | <3% | ||
| Grid DC Component | <0.5% In | ||
| Protection Functions | |||
| Integrated | Integrated DC reverse polarity protection, AC output overcurrent protection, overheat protection, AC output overvoltage protection, AC output short circuit protection, DC component detection, overvoltage load reduction protection, ground fault current detection, arc fault circuit interrupter (optional), power system monitoring and control, islanding detection, ground fault detection, DC input switch, DC terminal insulation resistance detection, residual current (RCD) detection, surge protection | ||
| General Data | |||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | ||
| Allowable Humidity | 0~100% (no condensation, no icing) | ||
| Altitude | 3000m | ||
| Noise (dB) | ≤50 | ||
| Dust and Water Protection Rating | IP 65 | ||
| Inverter Topology | Non-isolated | ||
| Overvoltage Category | OVC II (DC), OVC II (AC) | ||
| Surge Protection Level | TYPE III | ||
| Dimensions (W×H×D) [mm] | 423 * 570 * 256.5 (excluding connectors and bracket) | ||
| Weight (kg) | 32 | ||
| Warranty Period | Standard warranty 10 years, extended warranty available | ||
| Cooling Method | Natural air cooling | ||
| Certification | S-JET | ||
