Hybrid InverterThree Phase Hybrid Inverter14-20kW
SUN-14/15/16/18/20K-SG05LP3-EU-SM2
Three Phase Hybrid Inverter | 14-20kW | 2 MPPT | LV Battery Supported
Three Phase Hybrid Inverter14-20kW2 MPPTLV Battery Supported
Downloads
Overview
SUN-14/15/16/18/20K-SG05LP3-EU-SM2 Three Phase Hybrid Inverter | 14-20kW | 2 MPPT | LV Battery Supported
Product Highlights
Features
01

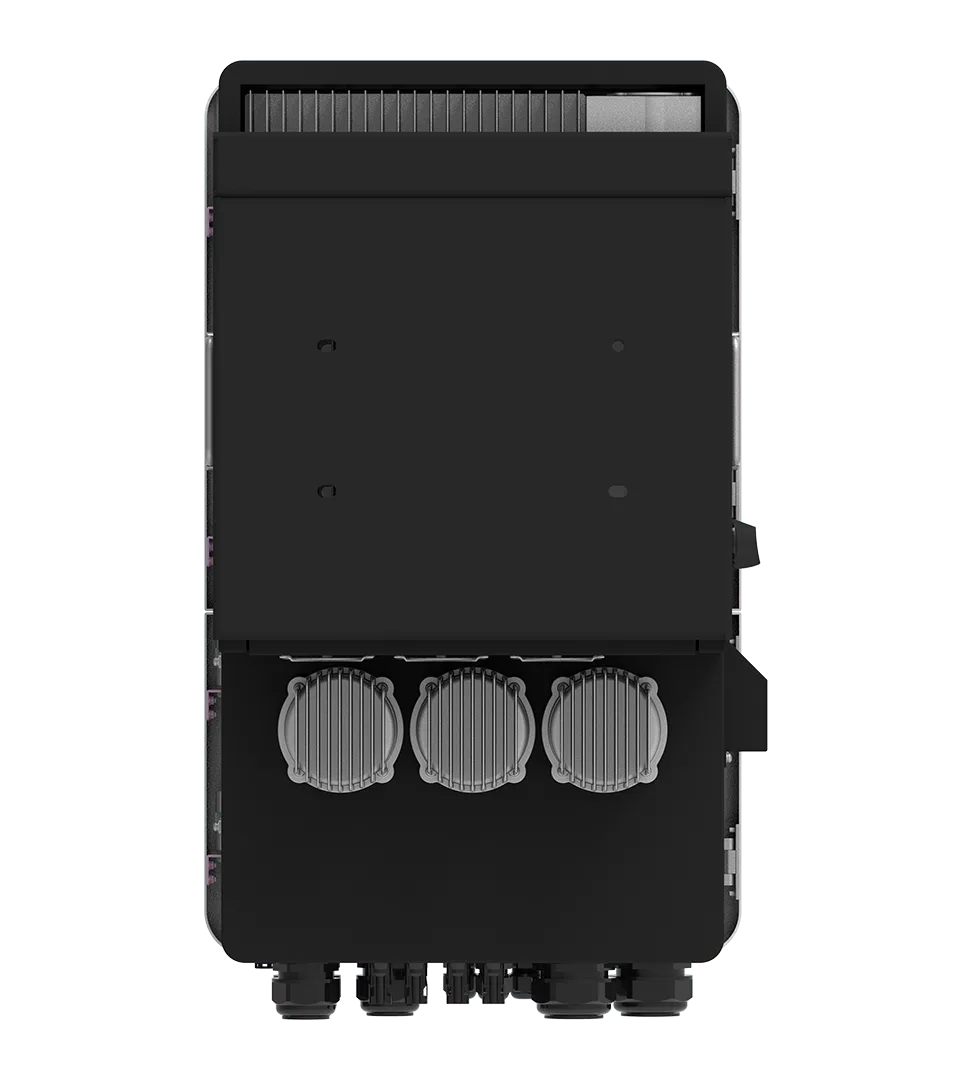

100% unbalanced output, max. output up to 50% rated power for each phase
02
AC couple to retrofit existing solar system
03

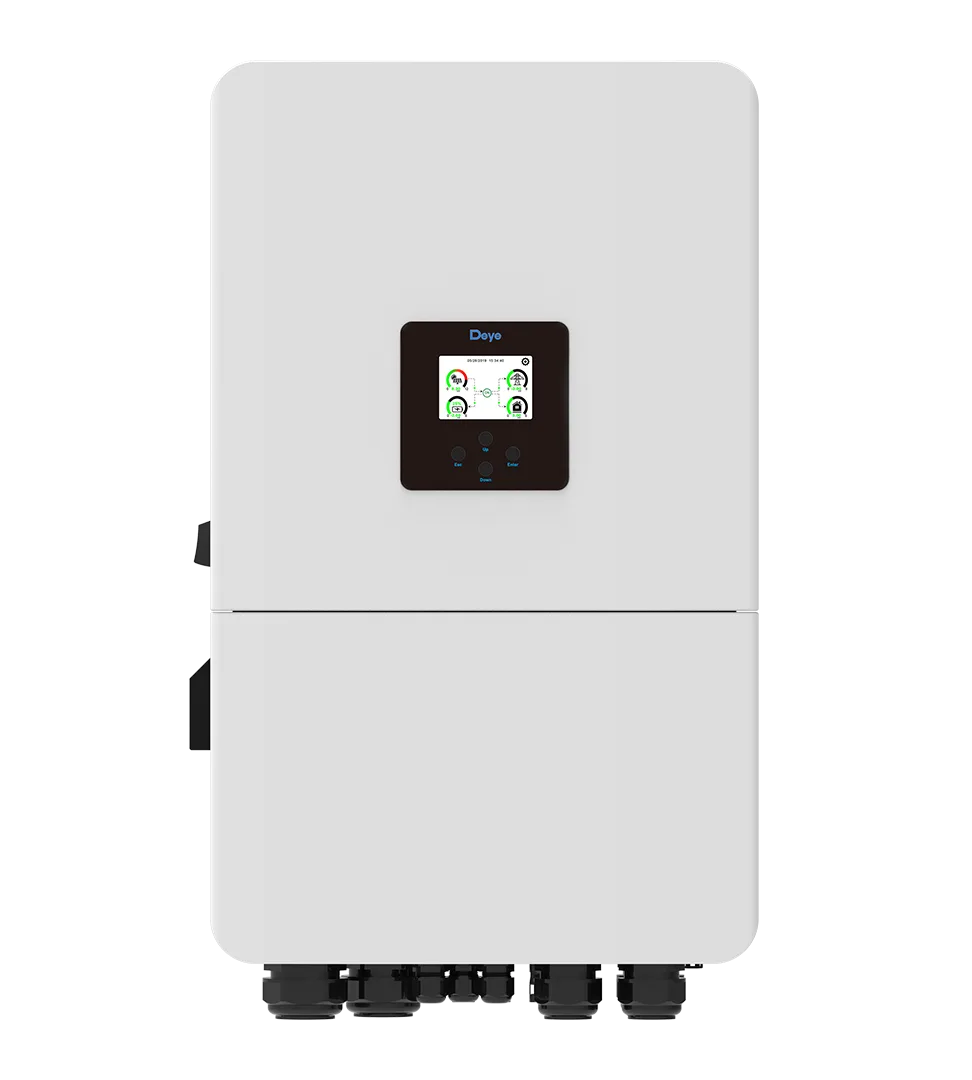

Max. 10 pcs parallel for on-grid and off-grid
04

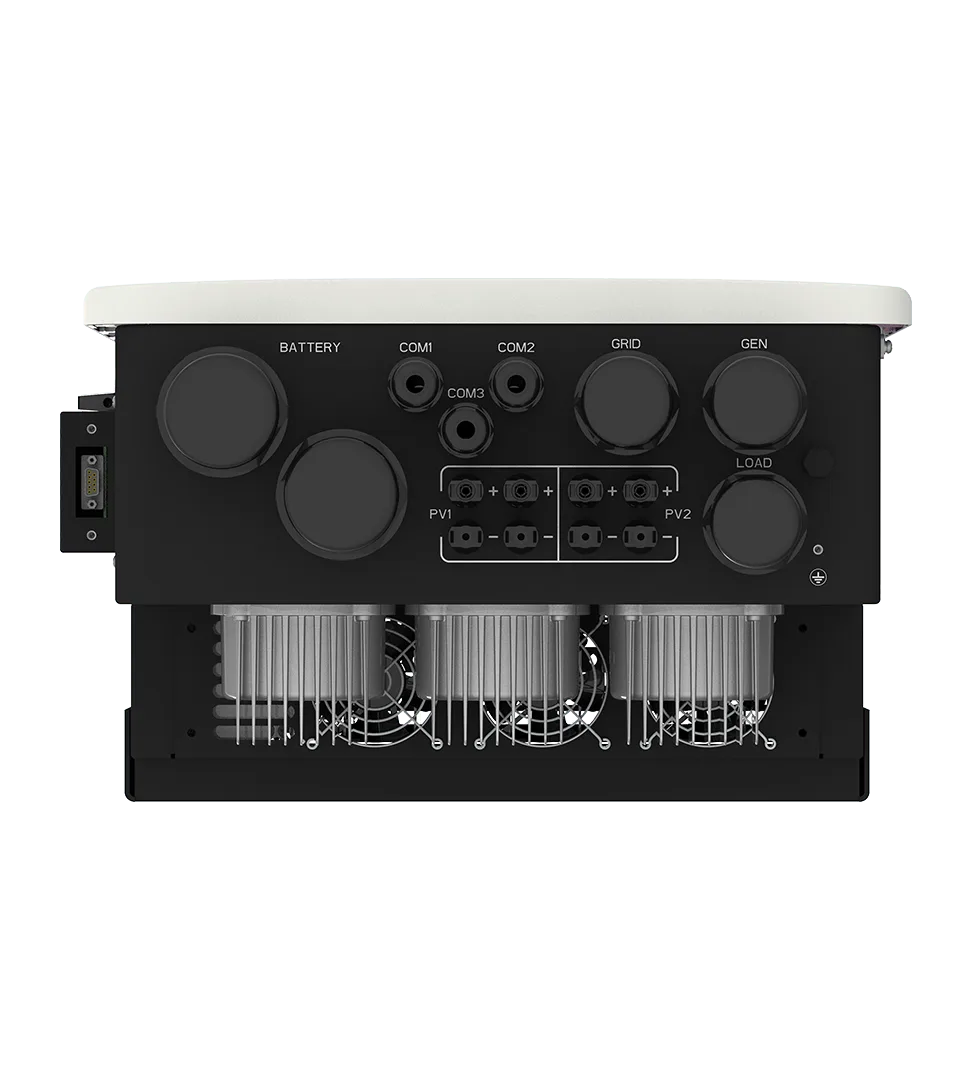

operation; support multiple batteries parallel
05
Max. charging/discharging current of 350A
06
Support storing energy from diesel generator
07
48V low voltage battery, transformer isolation design
08
6 time periods for battery charging/discharging
Specifications
Modell SUN-14K-SG05LP3
| Modell | SUN-14K-SG05LP3 -EU-SM2 | SUN-15K-SG05LP3 -EU-SM2 | SUN-16K-SG05LP3 -EU-SM2 | SUN-18K-SG05LP3 -EU-SM2 | SUN-20K-SG05LP3 -EU-SM2 |
|---|---|---|---|---|---|
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range (V) | 40-60 | ||||
| Max. Charging/Discharging Current (A) | 260 | 280 | 300 | 330 | 350 |
| Charging Strategy forLi-ion Battery | Self-adaption to BMS | ||||
| Number of Battery Input | 2 | ||||
| PV String Input Data | |||||
| Max. PV Access Power (W) | 28000 | 30000 | 32000 | 36000 | 40000 |
| Max. PV Input Power (W) | 22400 | 24000 | 25600 | 28800 | 32000 |
| Max. PV Input Voltage (V) | 800 | ||||
| Start-up Voltage (V) | 160 | ||||
| MPPT Voltage Range (V) | 160-650 | ||||
| Rated PV Input Voltage (V) | 550 | ||||
| Max. Operating PV Input Current (A) | 36+36 | ||||
| Max. Input Short-Circuit Current (A) | 54+54 | ||||
| No.of MPPT Trackers/ No.of Strings MPP Tracker | 2/2+2 | ||||
| AC Input/Output Data | |||||
| Rated AC Input/Output Active Power (W) | 14000 | 15000 | 16000 | 18000 | 20000 |
| Max. AC Input/Output Apparent Power (VA) | 15400 | 16500 | 17600 | 19800 | 22000 |
| Rated AC Input/Output Current (A) | 21.3/20.3 | 22.8/21.8 | 24.3/23.2 | 27.3/26.1 | 30.4/29 |
| Max. AC Input/Output Current (A) | 23.4/22.4 | 25/24 | 26.7/25.6 | 30/28.7 | 33.4/31.9 |
| Max. Continuous AC Passthrough (grid to load) (A) | 70 | ||||
| Peak Power (off-grid) (W) | 2 times of rated power, 10s | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Rated Input/Output Voltage | 220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE | ||||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | ||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
| DC Component of Grid | <0.5% In | ||||
| Efficiency | |||||
| Max. Efficiency | 97.6% | ||||
| Euro Efficiency | 97.0% | ||||
| MPPTEfficiency | >99% | ||||
| Equipment Protection | |||||
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level | ||||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||||
| Interface | |||||
| LCD/LED Display | LCD | ||||
| Communication Interface | WIFI, RS485, CAN | ||||
| General Data | |||||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 3000m | ||||
| Noise(dB) | ＜60 | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Inverter Topology | Non-Isolated (solar), Isolated (battery) | ||||
| Over Voltage Category | OVC II(DC), OVC III(AC) | ||||
| Cabinet Size (WxHxD mm) | 456×750×268.5 (Excluding Connectors and Brackets) | ||||
| Weight (kg) | 51.9 | ||||
| Type of Cooling | Intelligent Air Cooling | ||||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||||
| Grid Regulation | IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99,VDE-AR-N 4105 | ||||
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
