Hybrid InverterSingle Phase Low Voltage Hybrid Inverter12-18kW
SUN-12/14/16/18K-SG01LP1-EU-AM3-P
Single Phase Hybrid Inverter | 12-18kW | 3 MPPT | LV Battery Supported
Single Phase Hybrid Inverter12-18kW3 MPPTLV Battery Supported
Downloads
Overview
SUN-12/14/16/18K-SG01LP1-EU-AM3-P Single Phase Hybrid Inverter | 12-18kW | 3 MPPT | LV Battery Supported
Product Highlights
Features
01

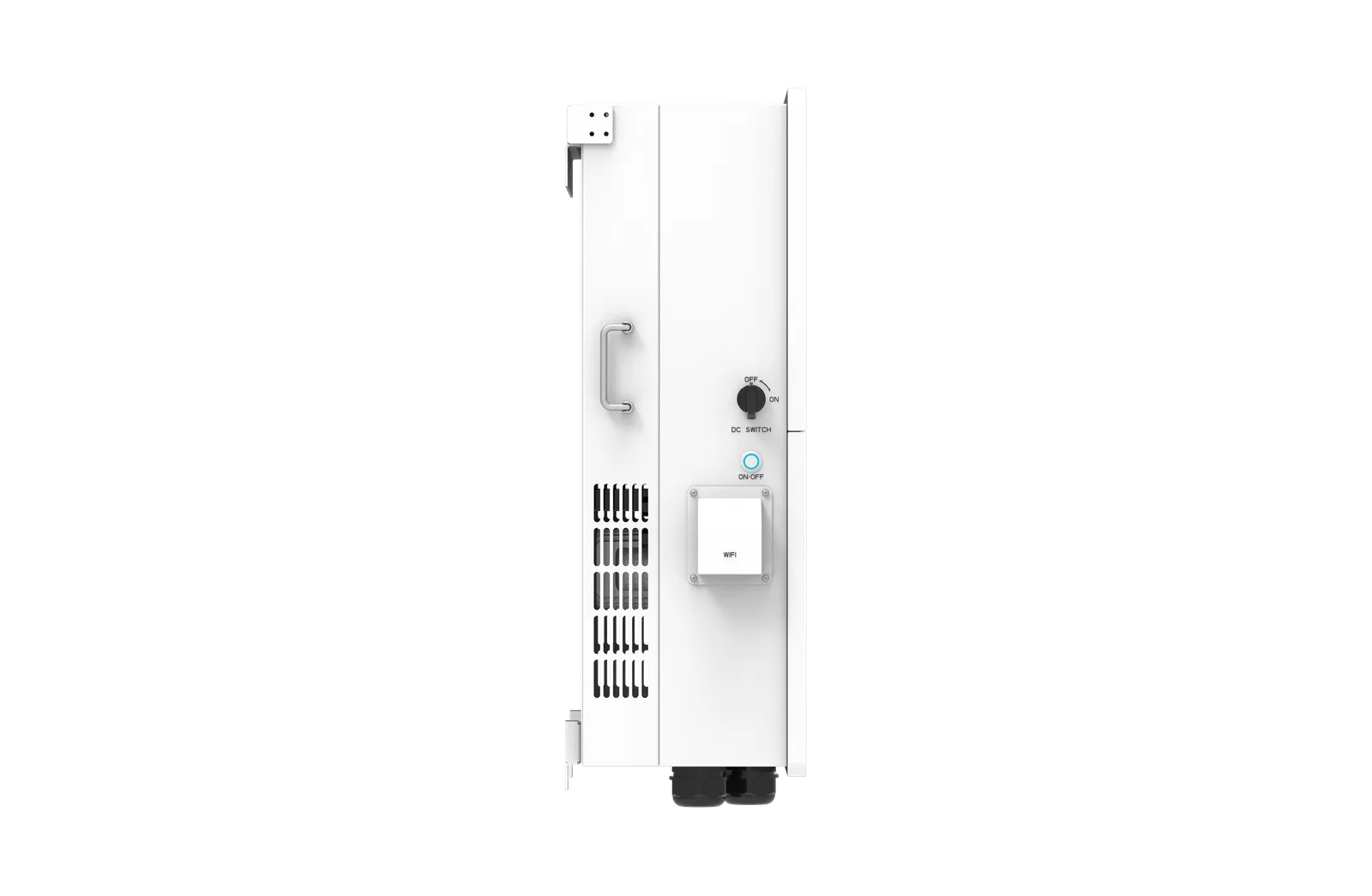

Colorful touch LCD, IP65 protection degree
02

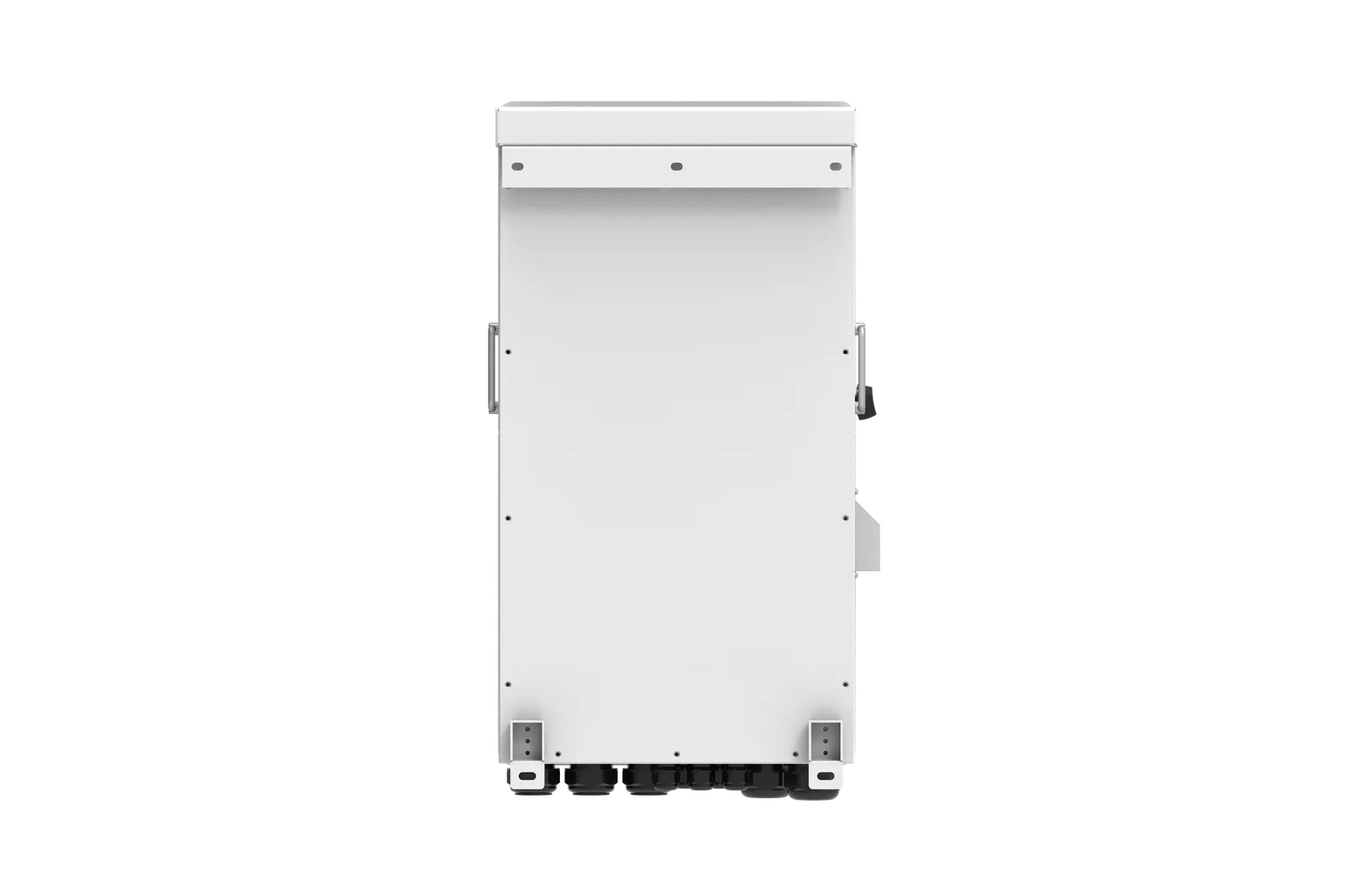

AC couple to retrofit existing solar system
03

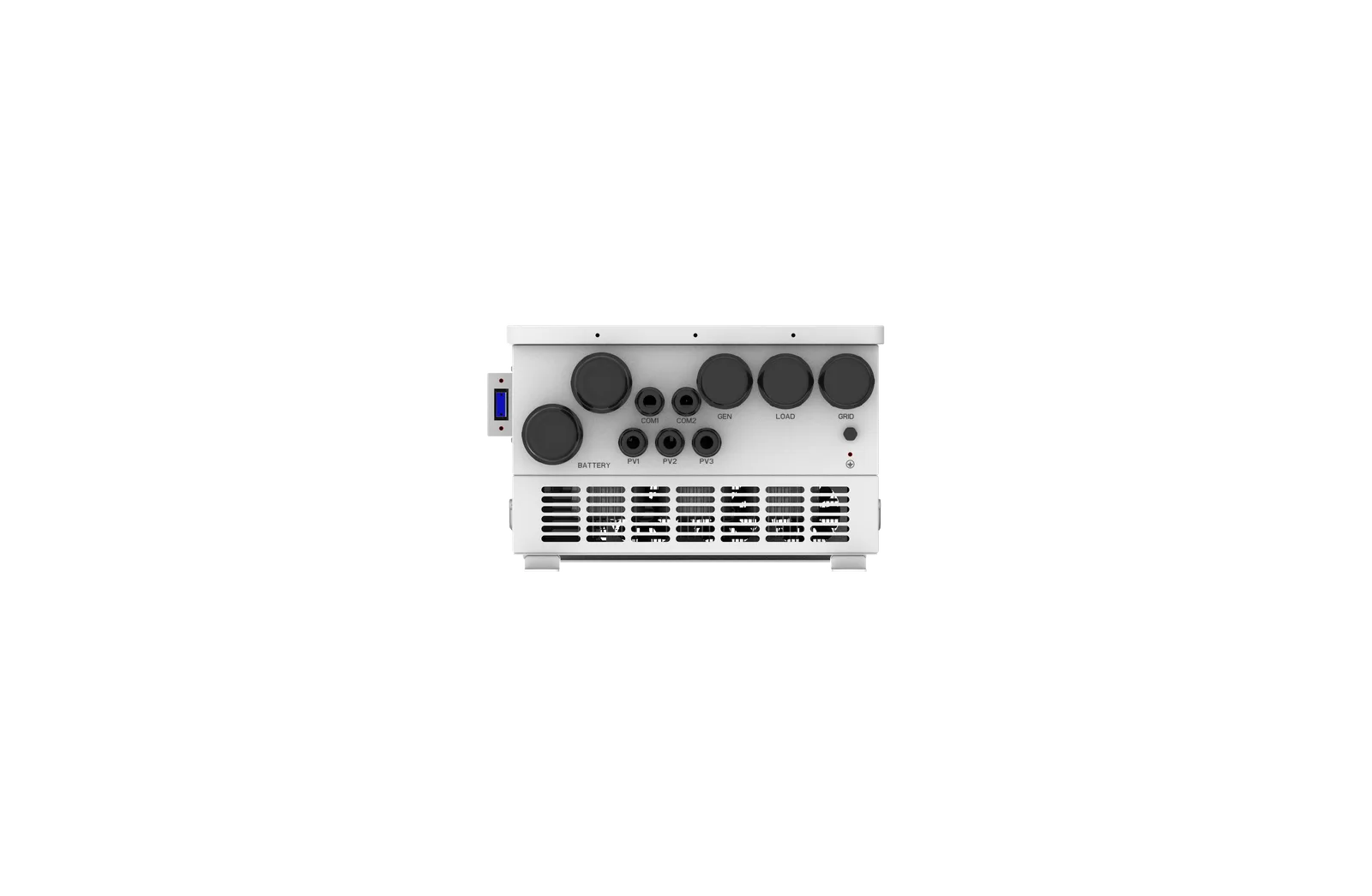

Max. charging/discharging current of380A
04

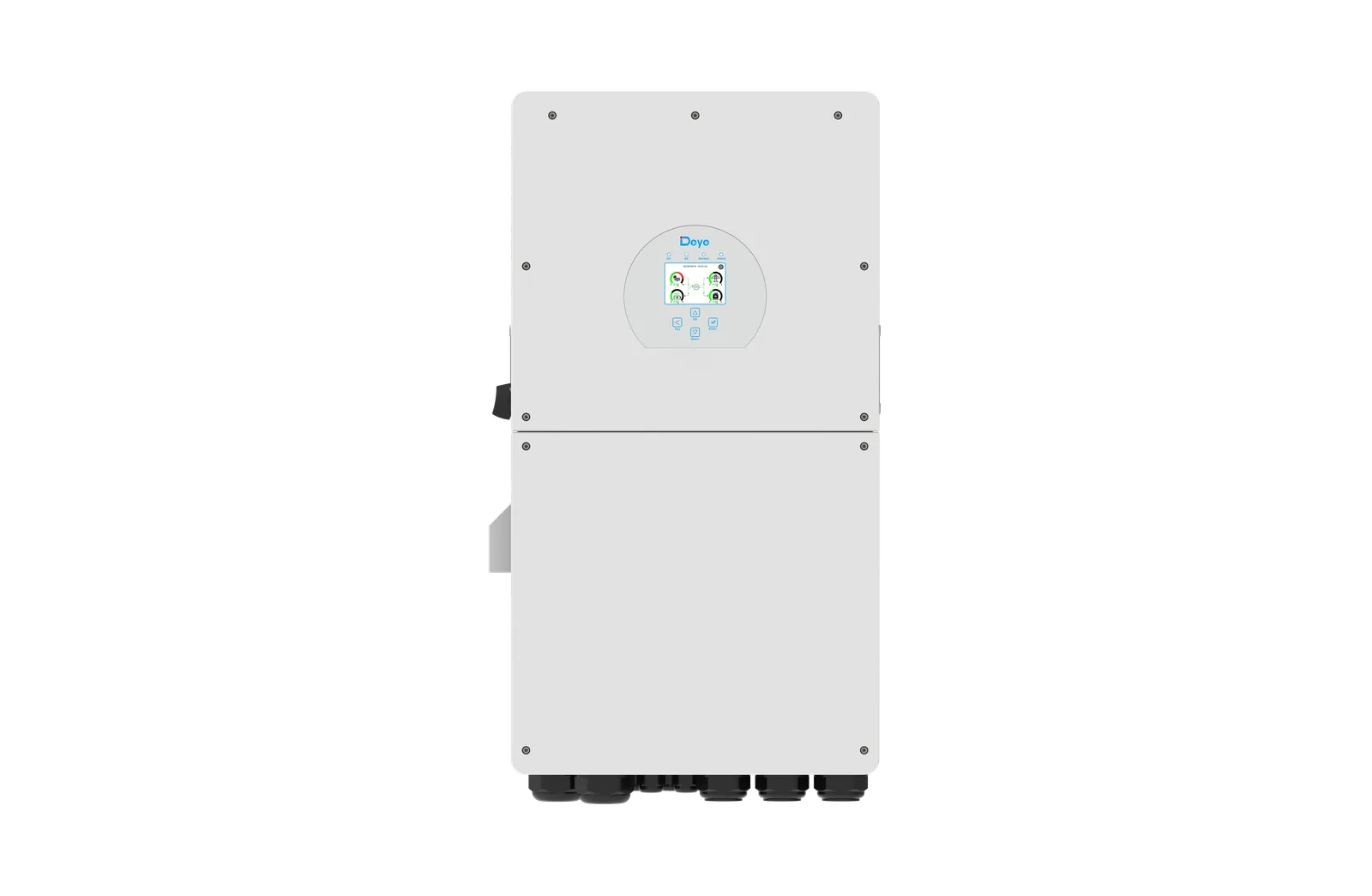

6 time periods for battery charging/discharging
05
Support storing energy from diesel generator
06
Max. 16 pcs parallel for on-grid and off-grid
07
operation; Support multiple batteries parallel
Specifications
| Model | SUN-12K-SG01LP1-EU-AM3-P | SUN-14K-SG01LP1-EU-AM3-P | SUN-16K-SG01LP1-EU-AM3-P | SUN-18K-SG01LP1-EU-AM3-P |
|---|---|---|---|---|
| Battery Input Data | ||||
| Battery Type | Lead-acid or Lithium-ion | |||
| Battery Voltage Range(V) | 40-60 | |||
| Max.Charging/Discharging Current(A) | 220 | 250 | 290 | 380 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||
| Number of battery input | 1 | |||
| PV String Input Data | ||||
| Max. PV Access Power (W) | 24000 | 28000 | 32000 | 36000 |
| Max. PV Input Power（W） | 19200 | 22400 | 25600 | 28800 |
| Max. PV Input Voltage（V） | 500 | |||
| Start-up Voltage（V） | 125 | |||
| MPPT Voltage Range（V） | 150-425 | |||
| Rated PV Input Voltage(V) | 370 | |||
| Max. Operating PV Input Current (A) | 36+36+36 | |||
| Max. Input Short-Circuit Current (A) | 54+54+54 | |||
| No.of MPP Trackers/No.of Strings MPP Tracker | 3/2+2+2 | |||
| AC Input/Output Data | ||||
| Rated AC Input/Output Active Power（W） | 12000 | 14000 | 18000 | 18000 |
| Max. AC Input/Output Apparent Power （VA） | 13200 | 15400 | 17600 | 19800 |
| Rated AC Input/Output Current（A） | 54.6/52.2 | 63.7/60.9 | 72.8/69.6 | 81.9/78.3 |
| Max. AC Input/Output Current（A） | 60/57.4 | 70/67 | 80/76.6 | 90/86.1 |
| Max. Continuous AC Passthrough (grid to load)（A） | 100 | 200 | ||
| Peak Power (off-grid)（W） | 2 times of rated power,10s | |||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||
| Rated input/output voltage | 220/230V 0.85Un-1.1Un L+N+PE | |||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | |||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||
| DC Injection Current | <0.5%ln | |||
| Efficiency | ||||
| Max. Efficiency | 97.6% | |||
| Euro Efficiency | 96.5% | |||
| MPPT Efficiency | ＞99% | |||
| Equipment Protection | ||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | |||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||
| Interface | ||||
| LCD/LED Display | LCD | |||
| Communication Interface | WIFI, RS485, CAN | |||
| General Data | ||||
| Operating Temperature Range(℃) | -40 to +60℃, >45℃ Derating | |||
| Permissible Ambient Humidity | 0~100% | |||
| Permissible Altitude | 3000m | |||
| Noise(dB) | ＜55 | |||
| Ingress Protection(IP) Rating | IP 65 | |||
| Inverter Topology | Non-Isolated (solar), Isolated (battery) | |||
| Over Voltage Category | OVC II(DC),OVC III(AC) | |||
| Cabinet size（W*H*D）[mm] | 464×763×282 (Excluding Connectors and Brackets) | 464×863×282 | ||
| Weight[kg] | 54.1 | 59.8 | ||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||
| Type Of Cooling | Intelligent air cooling | |||
| Grid Regulation | IEC 61727, IEC 62116, AS 4777.2, NRS 097 | |||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||
