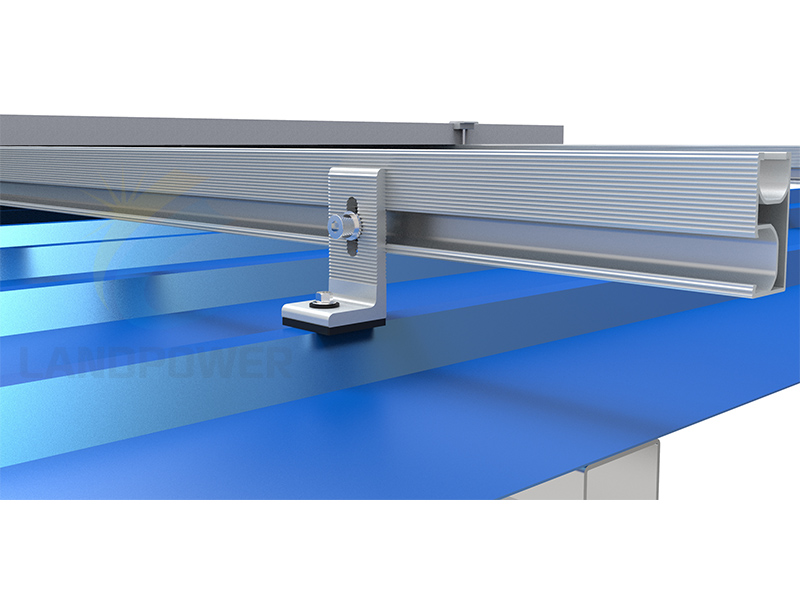

Trapezoidal Roof Hanger Bolt and L Feet Solar Mounting
Hanger Bolt and L-feet LongRail metal roof mounting bracket is common and sturdy mounting solution for trapezoidal roof or corrugated roof.They are with standard stainless steel A2 hanger bolt,aluminum L bracket,and mid/end clamp.
| Item No | LP-MR-HL |
|---|---|
| Order(MOQ) | 1PCS |
| Payment | TT, L/C |
| Product Origin | China |
| Color | Black,Silver |
| Shipping Port | Xiamen China |
| Lead Time | 7-15 days |
Product Details

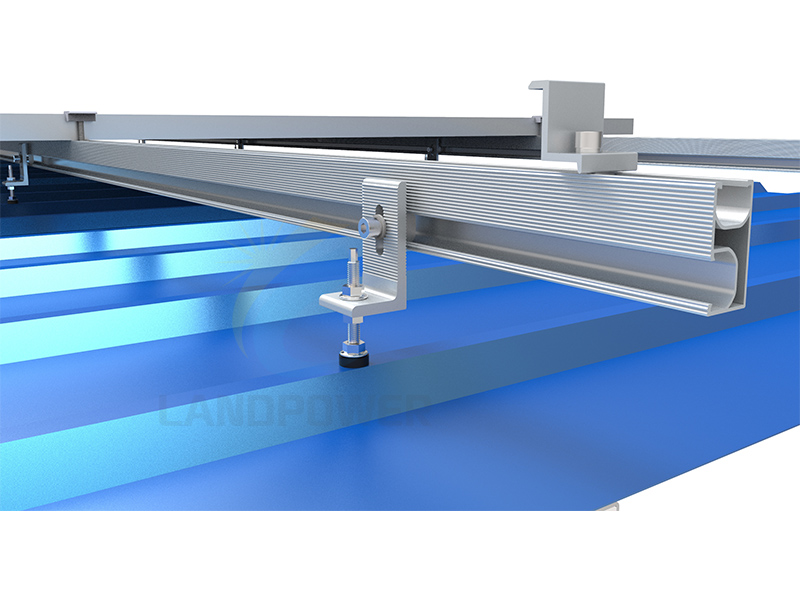

Landpower Hanger Bolt and L-feet LongRail Metal Roof Mounting is common mounting solution for metal roof,coming with hanger bot and L-feet,Landpower long rail, earthing components,they are flexible for both trapezoidal and corrugated roof solar panel installation.The hanger bolt with fiber cement seal for fixing trapezoidal and corrugated metal roof. High quality stainless steel A2,6005 T5 aluminium,EPDM,ensure better mounting hardware.
TECHNICAL INFORMATION Install site ： Corrugated / Trapezoidal Roof Sheet Metal Tilt Angle ： Flushed with the roof （ 10~60 deg ） Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2( 304 ),EPDM Color: Silver,Black or Customized Anti-corrosive : A nodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life

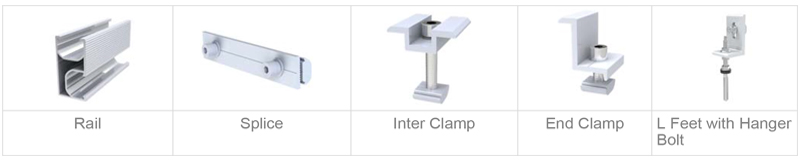

Main Compoent for Hanger Bolt LongRail Mounting Set:

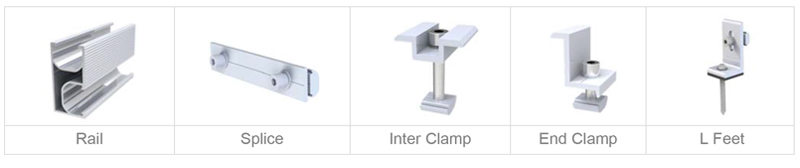

Main Compoent for L-feet LongRail Mounting Set:

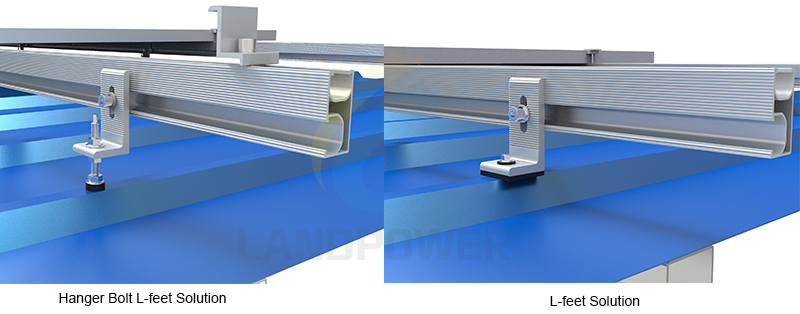

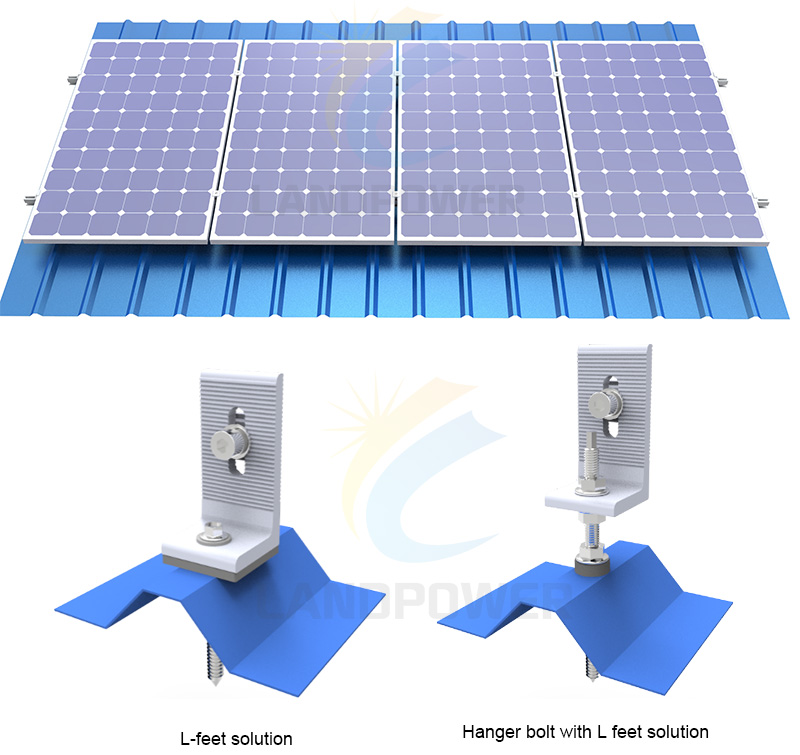

The two above metal roof mounting solutions structure demo.:

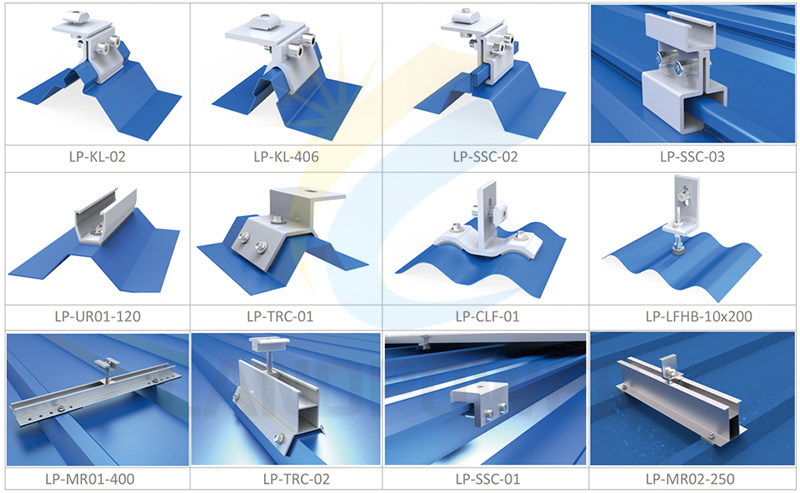

Other Metal Roof Attachment
We engineer and design Solar Racking/Mounting Hardware for specific solar projects, there may not list all thedetails of racking in the web,therefore,please don't hesitate to contact us for more details for your specific projects
Specifications
| Install site | Corrugated / Trapezoidal Roof Sheet Metal |
|---|---|
| Tilt Angle | Flushed with the roof （ 10~60 deg ） |
| Building Height | 20 m |
| Max Wind Speed | <60m/s |
| Snow Load | <1.4KN/m2 |
| Standard | En 1090, AS/NZS 1170 and other international Standard |
| Material | Aluminum 6005-T5& Stainless steel A2( 304 ),EPDM |
| Color | Silver,Black or Customized |
| Anti-corrosive | A nodized aluminum & stainless steel |
| Warranty | 12 years warranty and twenty- year service life |
