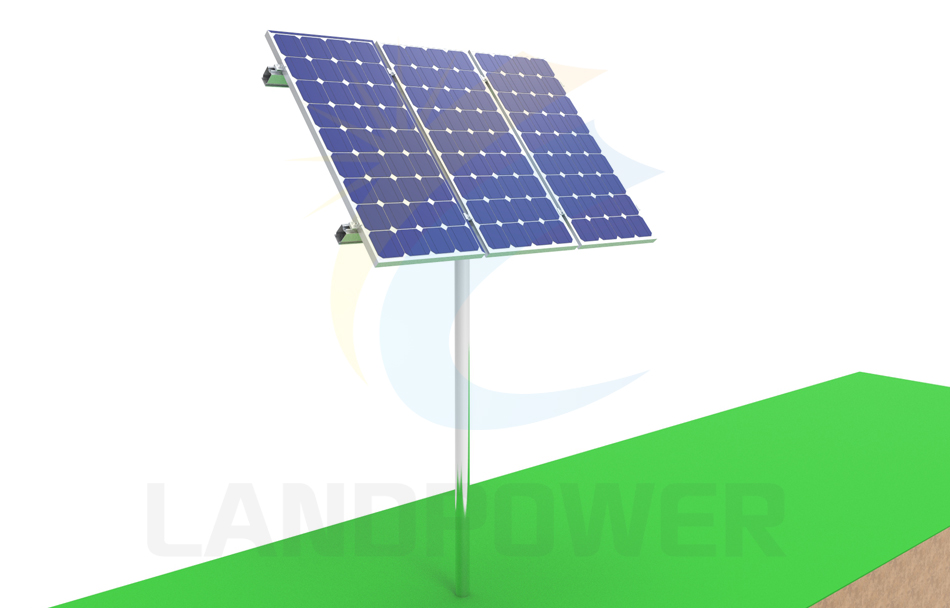

Top of Pole Mount for Solar Panel
The Top of Pole Mount is specially design for solar pump,remote WIFI and Telecom stations,with single hot galvanized steel pole and angle adjustment design for different conditions.
| Item No | LP-TPM-01 |
|---|---|
| Order(MOQ) | 1PCS |
| Payment | TT,L/C |
| Product Origin | China |
| Color | Silver |
| Shipping Port | Xiamen China |
| Lead Time | 7-15 days |
Product Details

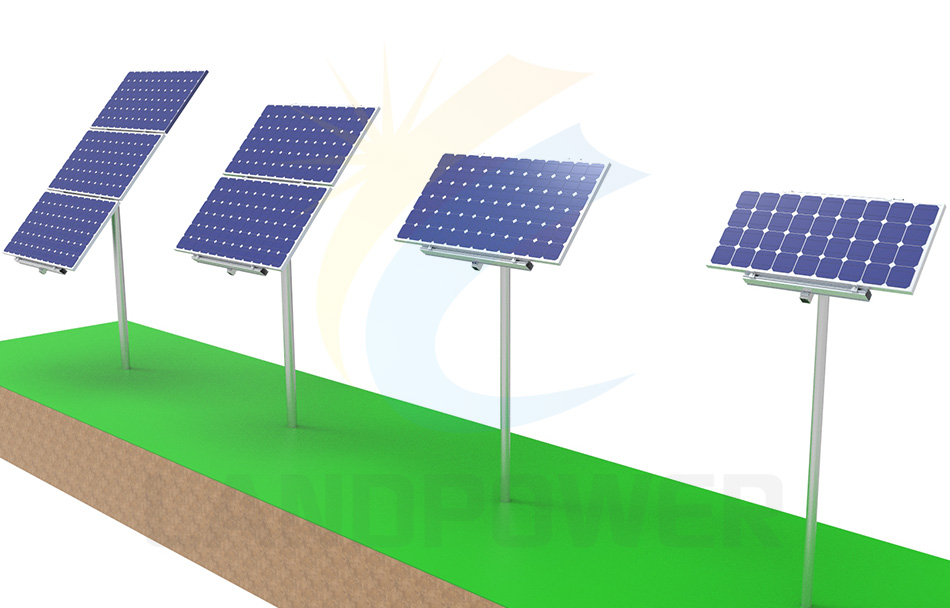

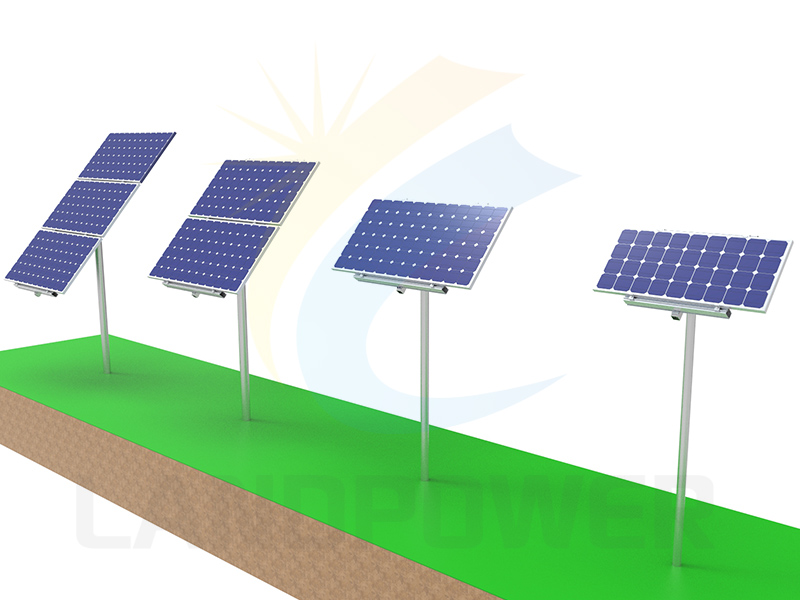

The Top of Pole Solar Mount is designed to hold 1,2,3,4 panels,and they are adjustable in angle for different season to get maximum power output. It also flexible on panel orientation,for both landscape or portrait. Applicable for solar pump,solar street light,remote wifi, telecom stations.
Technical Information
Install Site: Open Ground
Application:Solar Pump,Solar Street Light
Material: Aluminium and Hot galvanized steel
Adjustable Angle: 10,20,30,40 degrees
Pole Height:2-3M
Wind Load:<50m/s
Snow Load<1.4KN/M2
Solar Arrangement: Landscape or Portrait
Warranty:12 years warranty and up to 20 years lifespan

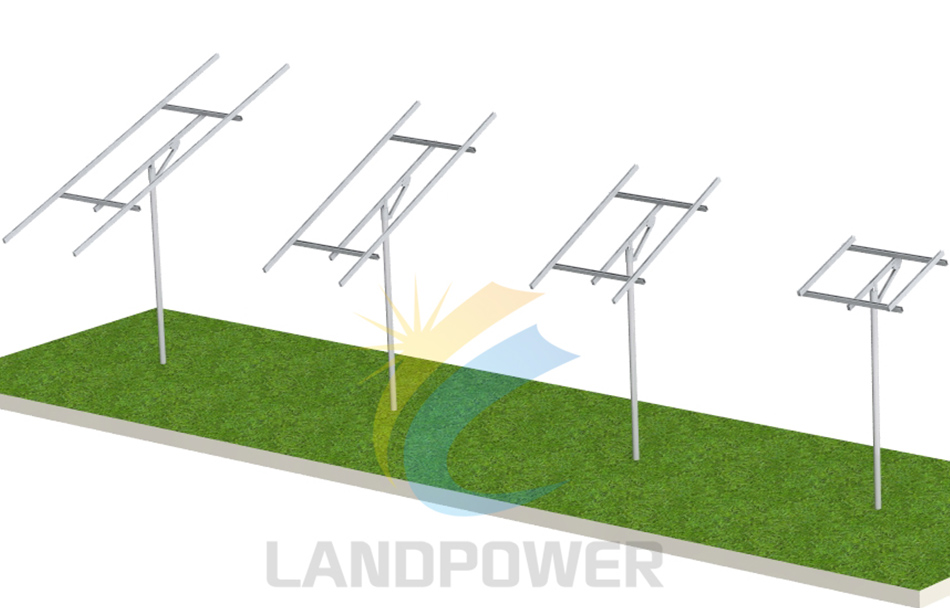

Adjustable Solar Pole Mounting System

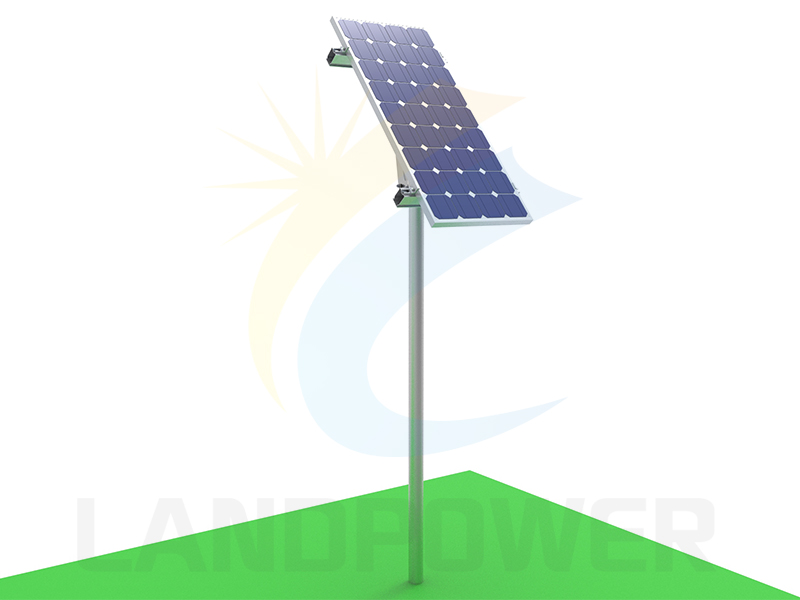

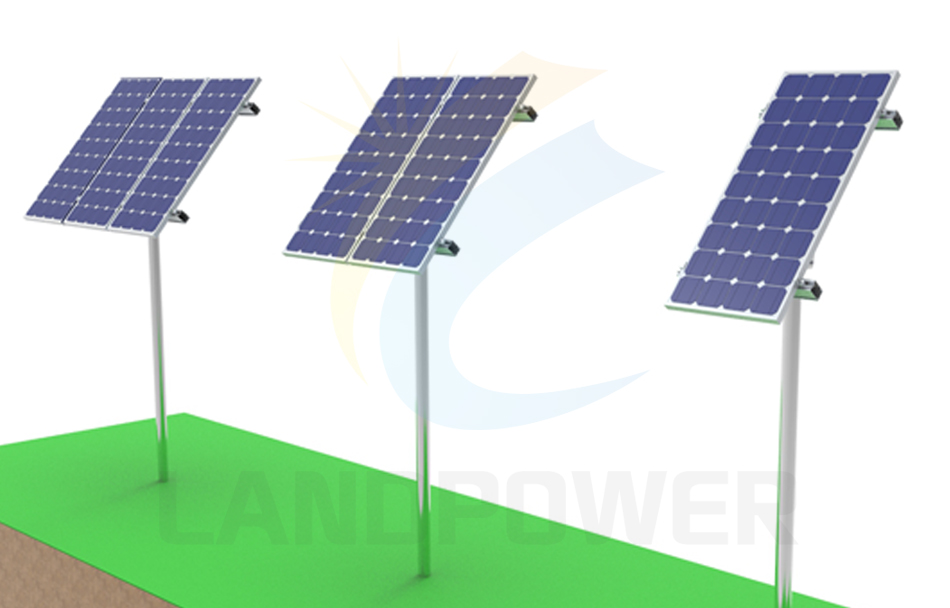

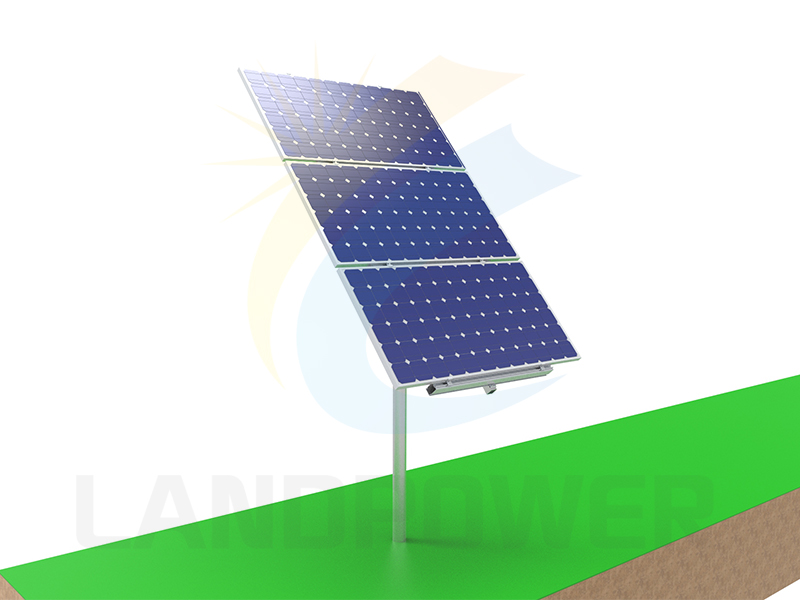

Solar Arrangement-Portrait

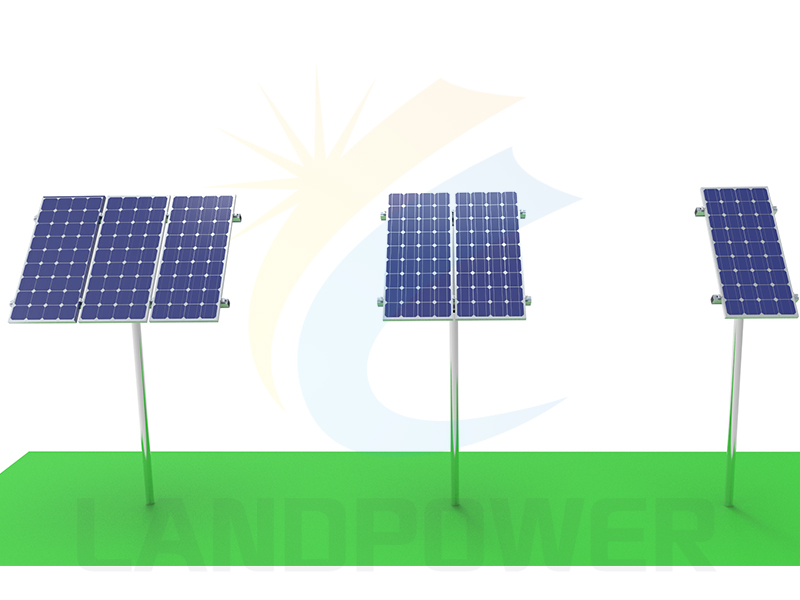

Solar Arrangement-Landscape
We are also do OEM pole mounting according to your drawing,if you have specific solar pole mounting projects feel free to contact us,we will design for you.and we also produce side of pole solar panel mounting for 1-4 panel with angle adjustment.
