Solar Panel Water Drainage Clips

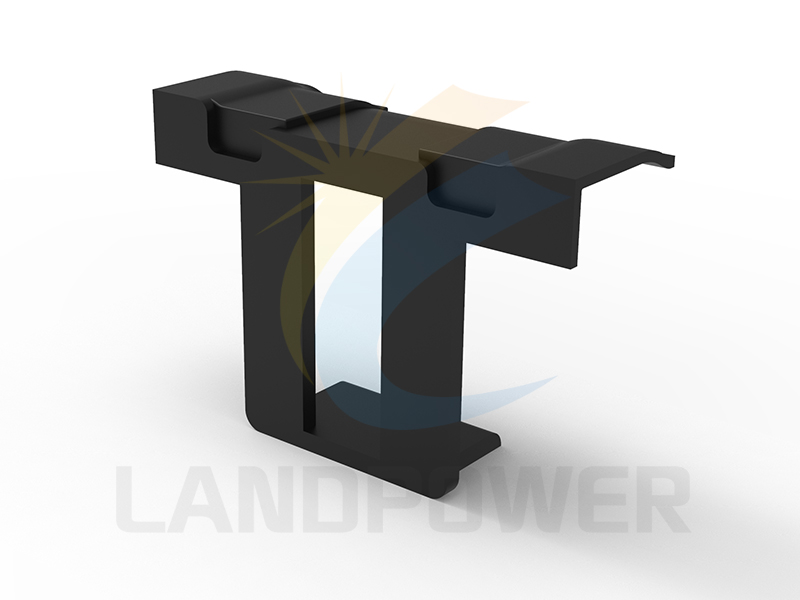

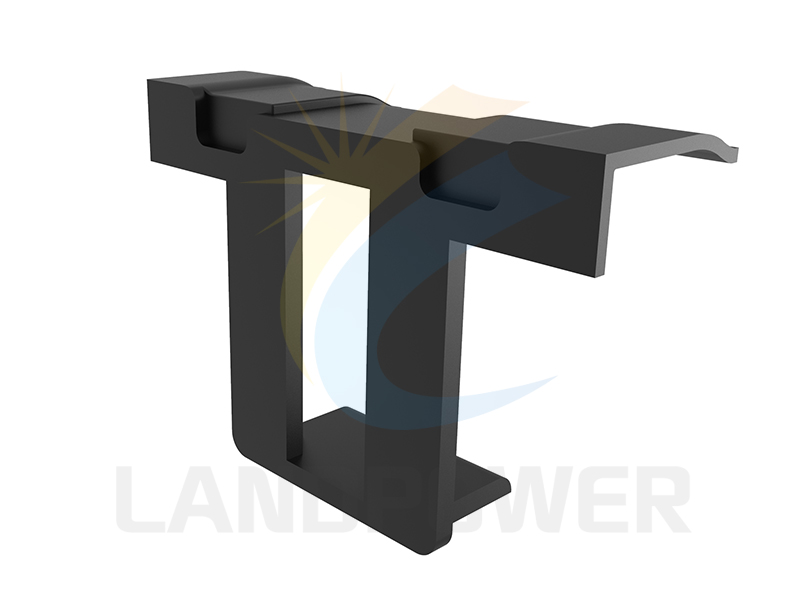

Solar Panel Water Drainage Clip is the ABS plastic clip clamping on aluminum frame of solar panels to drain water and other dirt mud off the panel to avoid dirt pattern items covering on panel (which may affect the efficiency of solar panel), the water drain clip is made of durable ABS material which are anti-aging, high and low temperature resistance and design for long-term outdoor use. It is easy to clip on the panel and suitable for most of thickness of panel on 30mm.32mm,35mm etc.

TECHNICAL INFORMATION

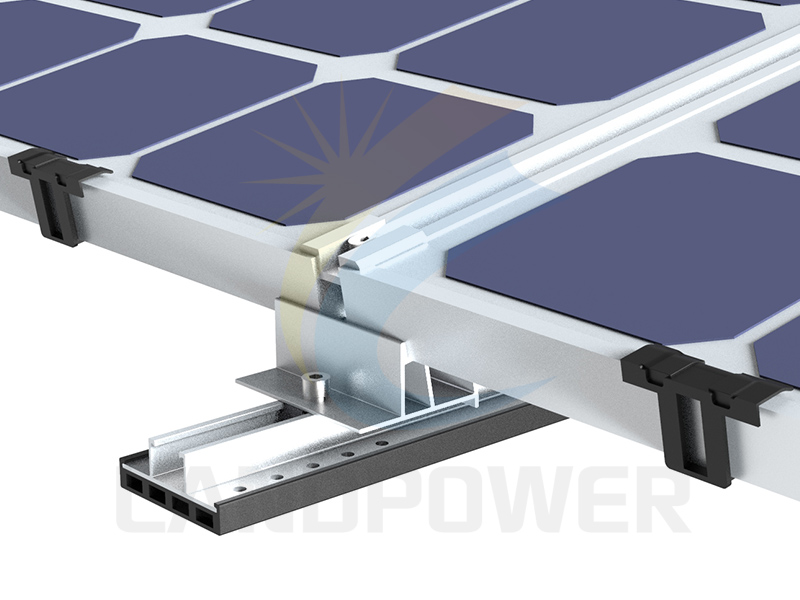

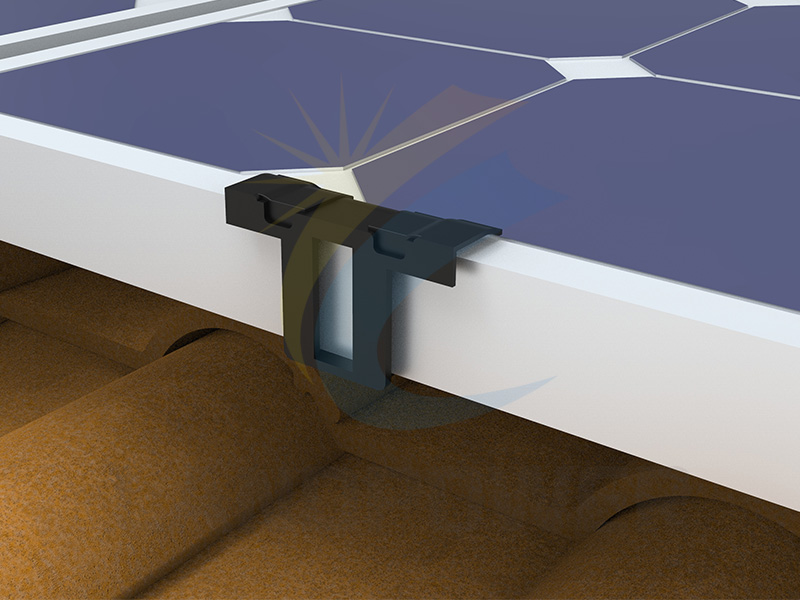

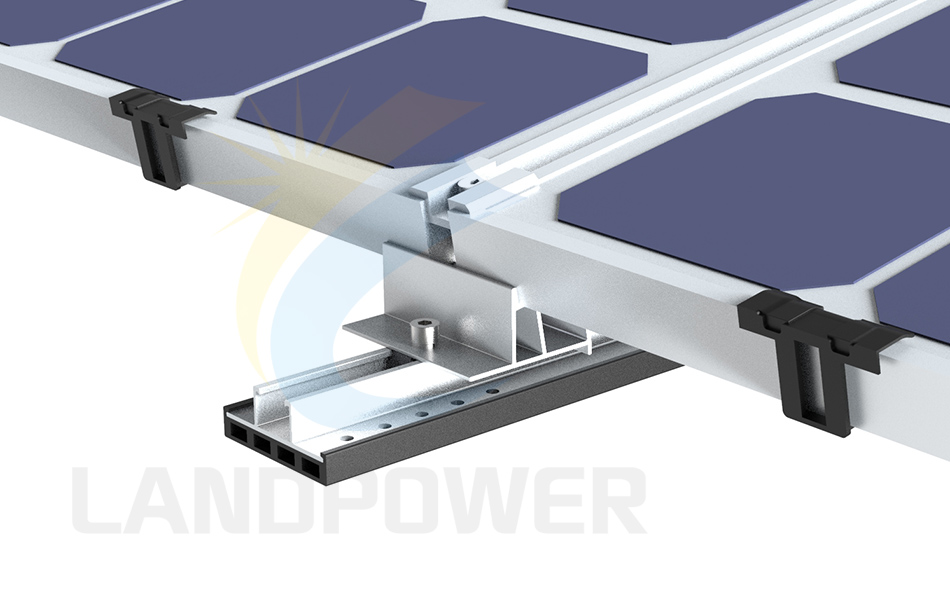

Install site: Clip on Aluminum Frame of Solar Panel

Wind Load: Up to 60m/s

Module Type: Framed

Suitable Panel:30mm,32mm,35mm

Material: ABS

Colar: Black

Standard: En 1090,AS/NZS 1170,Din 1055,IBC 2006 and other Internation Standard

Warranty: 12 years warranty and twenty-year service life.

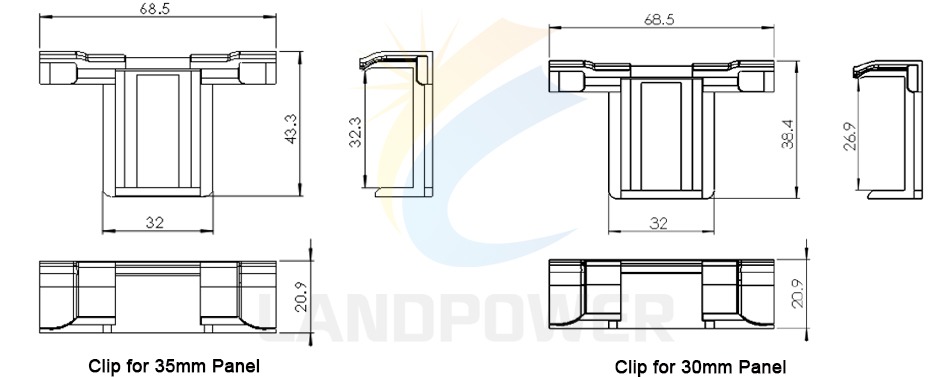

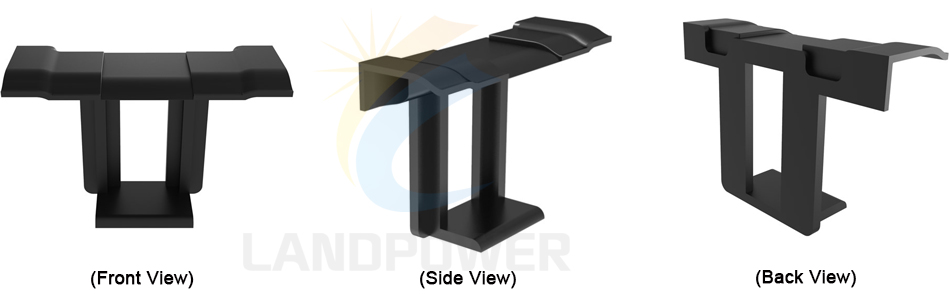

Dimension and Overview of Water Drainage Clips

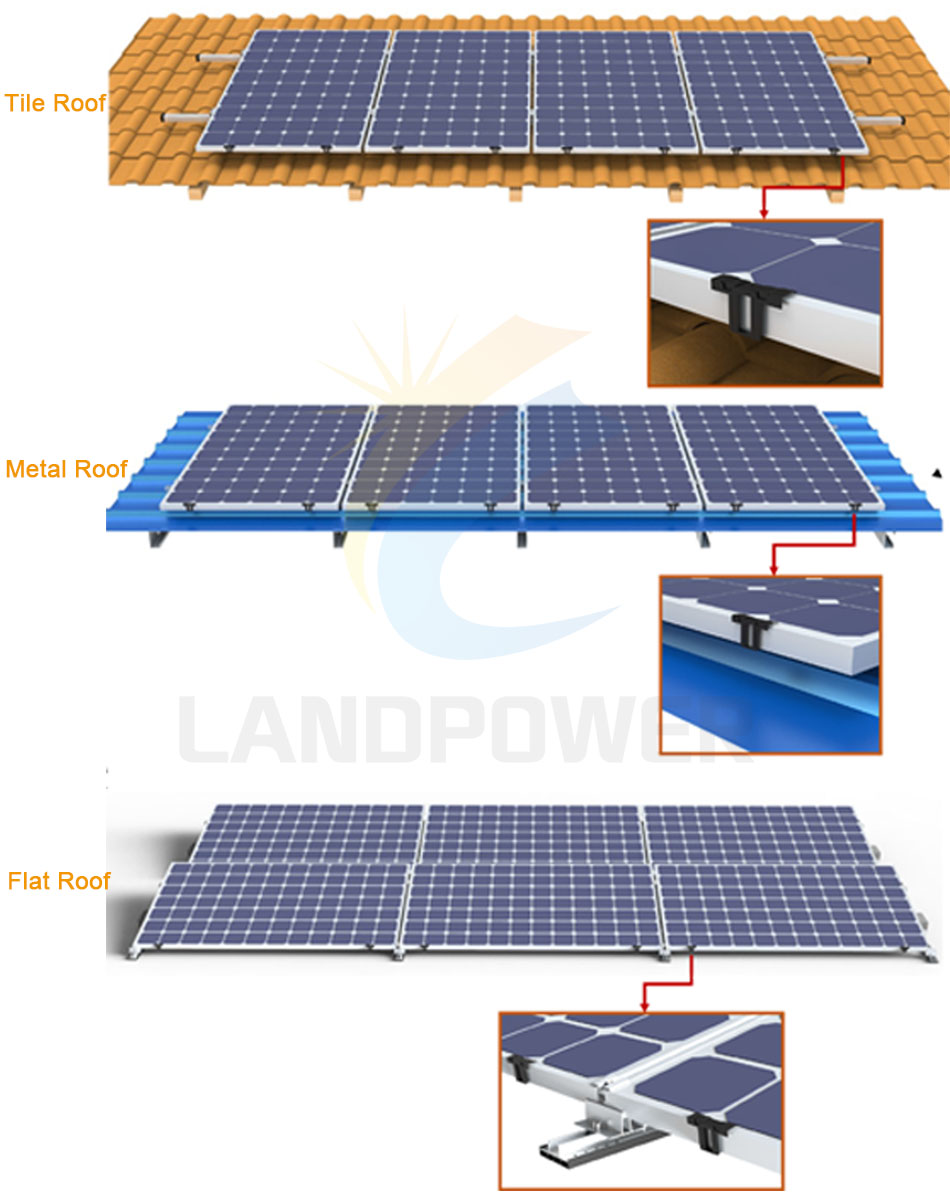

Application of the Solar Water Drainage Clip

The Water Drainage Clips can be used for almost solar panel in the occasions of roof mounting, ground mounting and other panel installation.

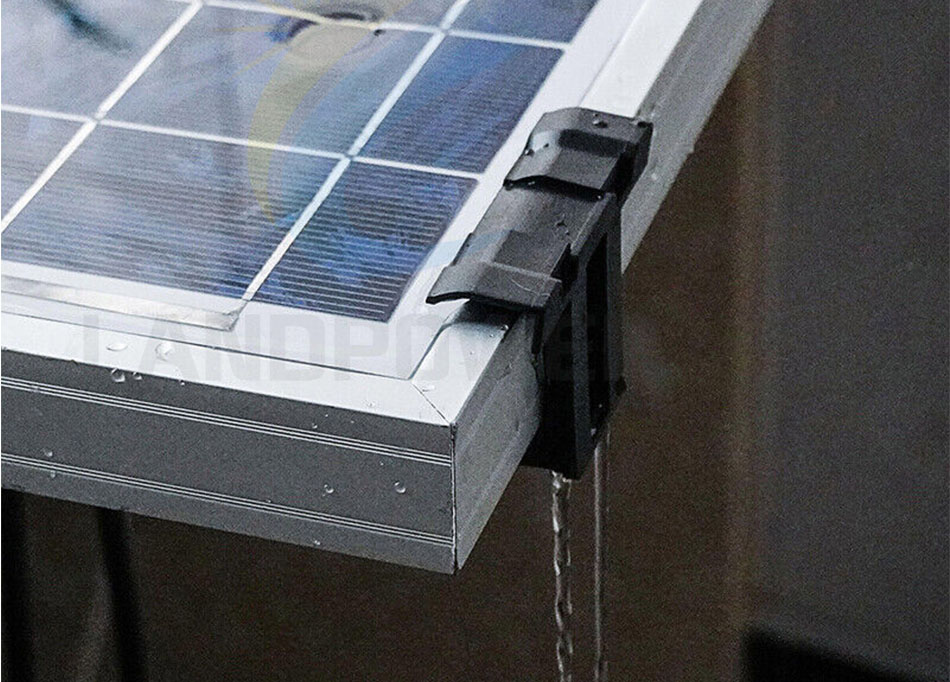

Function of Solar Panel Water Drainage Clips

The solar panel water drain clip effectively guide the water and mud drain off the solar panel, this function avoid accumulation of forming mud belts over solar panel. It greatly enhance the life service of panels.

We are also engineering other kind of water drainage clips for panels, such as stainless style of water drain clip, please free to email us for more details
