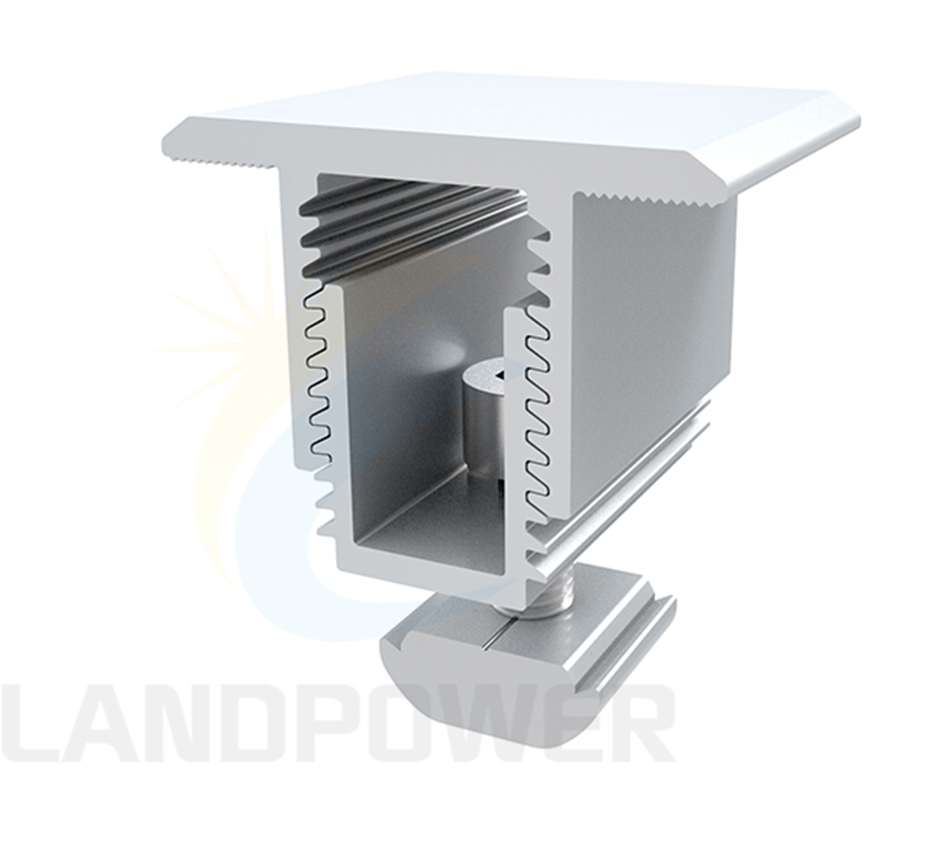

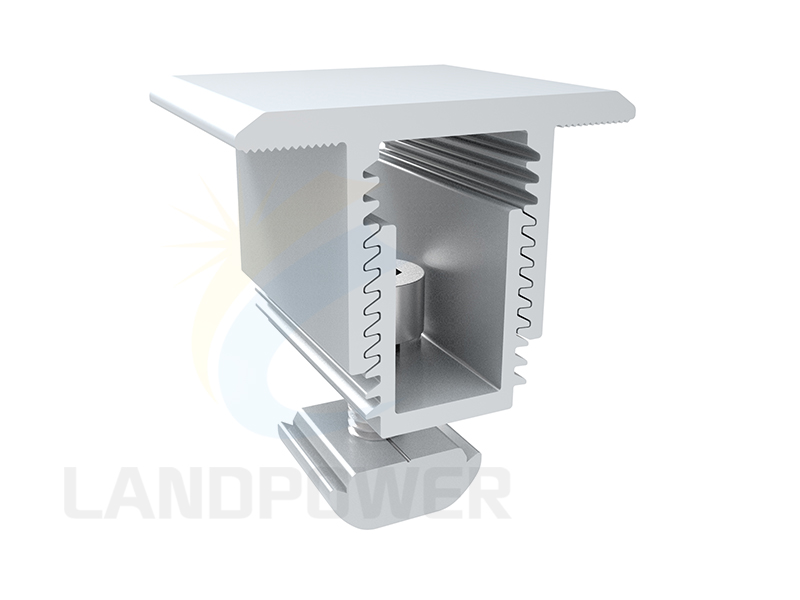

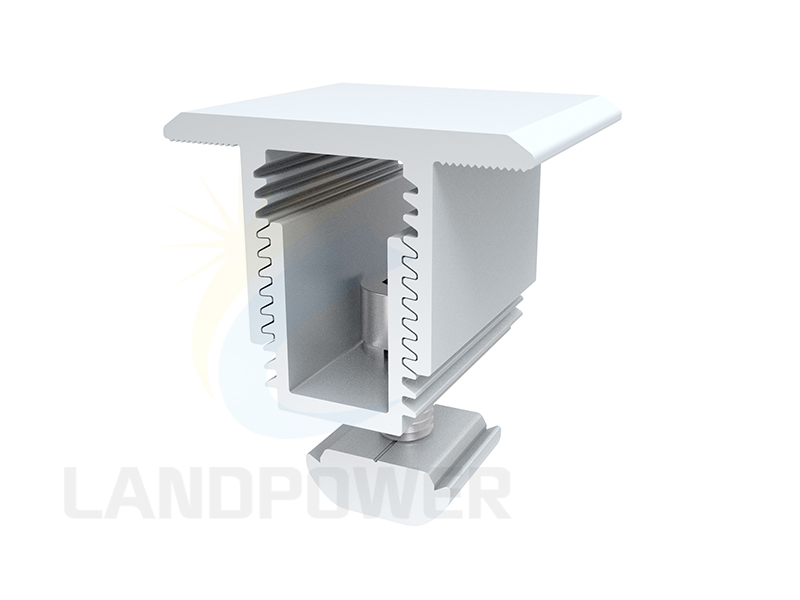

Solar Panel Adjustable Mid Clamp
The Solar Panel Adjustable Mid Clamp are customized in color both silver or black, assembled with 304 stainless steel, the material is aluminum 6005 T5. It is universal for solar panel thickness from 30-50mm.
| Item No | LP-AMC-01 |
|---|---|
| Order(MOQ) | 1 PCS |
| Payment | TT,L/C |
| Product Origin | Xiamen China |
| Color | Black,Silver |
| Shipping Port | Xiamen China |
| Lead Time | 7-15 days |
Product Details
The Adjustable Mid Clamp kit is universal clamp for solar panel 30-50mm,it can be black anodized or silver anodized, with stainless steel 304,competitive prices, easy to keep stock. Adjustable Solar Panel Mid Clamp is universal end clamp for solar panels, it is allow adjustable to clamp panel thickness from 30-35 mm. material is aluminum 6005 T5 with stainless steel 304 bolt. The nut can be customized, and color can be black or silvery anodized.
TECHNICAL INFORMATION Application :Roof Mount, Ground Mount, Mini Rial etc Adjustable Length: 30-50mm
Length ： Customized Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2(304)
Color: Silver, Black or Customized Anti-corrosive: Anodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life

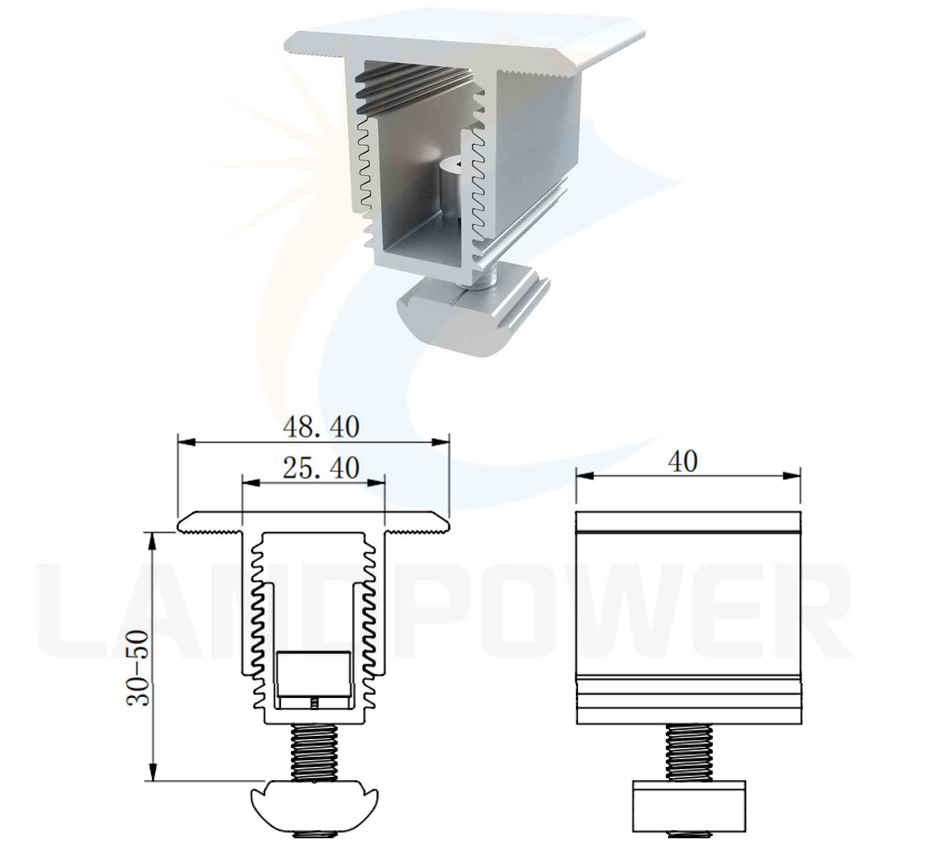

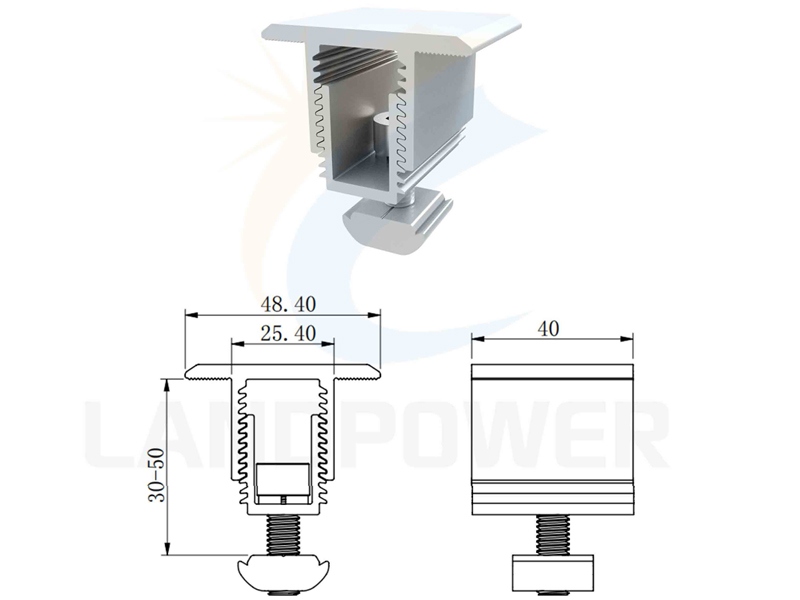

Dimension of Adjustable Mid Clamp
We design various Adjustable Mid Clamp for mounting rail, with different color and length. If you have any further specific request, please feel free to contact us for more further details.
Specifications
| Application | Roof Mount, Ground Mount, Mini Rial etc |
|---|---|
| Adjustable Length | 30-50mm |
