Pitched Tile Roof Solar Mounting
The tile roof mounting system is suitable for most of roof coverings,as we are engineering various adjustable roof hook and fixed roof hook for pantile,plain tiles,slated tiles.
| Item No | LP-TRAU-01 |
|---|---|
| Order(MOQ) | 1 PCS |
| Payment | TT,L/C |
| Product Origin | China |
| Color | Siver,Black |
| Shipping Port | Xiamen China |
| Lead Time | 7-15 days |
Product Details
The tile roof mounting systems come with Landpower standard aluminum rail,mid/end clamps,splice,and stainless steel A2 roof hook and related earthing systems. It is suitable for nearly all coverings like plain tiles,slated tiles,and pantile,we supply various adjustable roof hook,fixed roof hook for different installation on tile roofing.
TECHNICAL INFORMATION Install site ： Tile Roof Tilt Angle ： Flushed with the roof （ 10~60 deg ） Building Height ： 20 m Max Wind Speed ： <60m/s Snow Load ： <1.4KN/m2 Standard ： En 1090, AS/NZS 1170 and other international Standard Material ： Aluminum 6005-T5& Stainless steel A2( 304 ),EPDM Color: Silver,Black or Customized Anti-corrosive : A nodized aluminum & stainless steel Warranty ： 12 years warranty and twenty- year service life

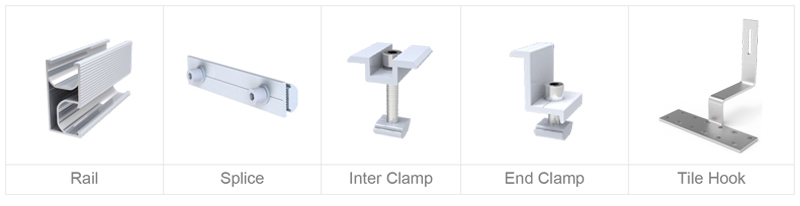

Main Component of Tile Roof Mounting:

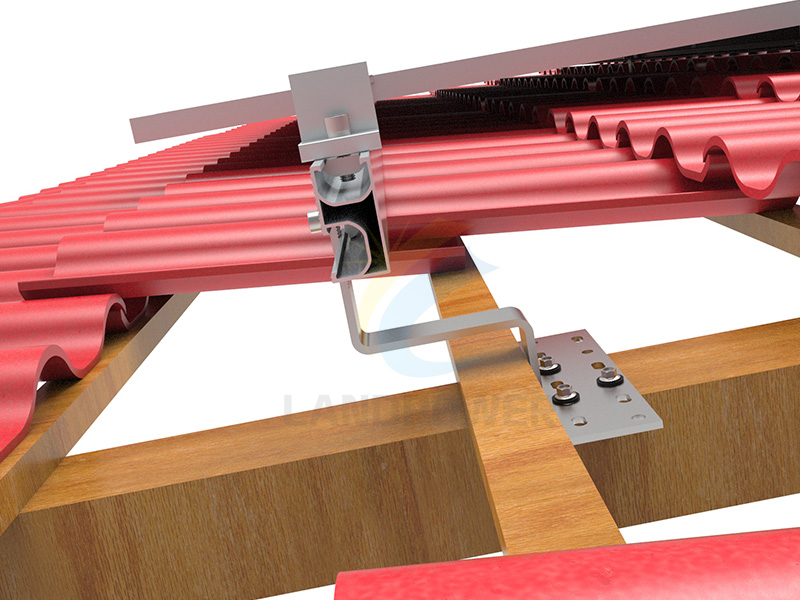

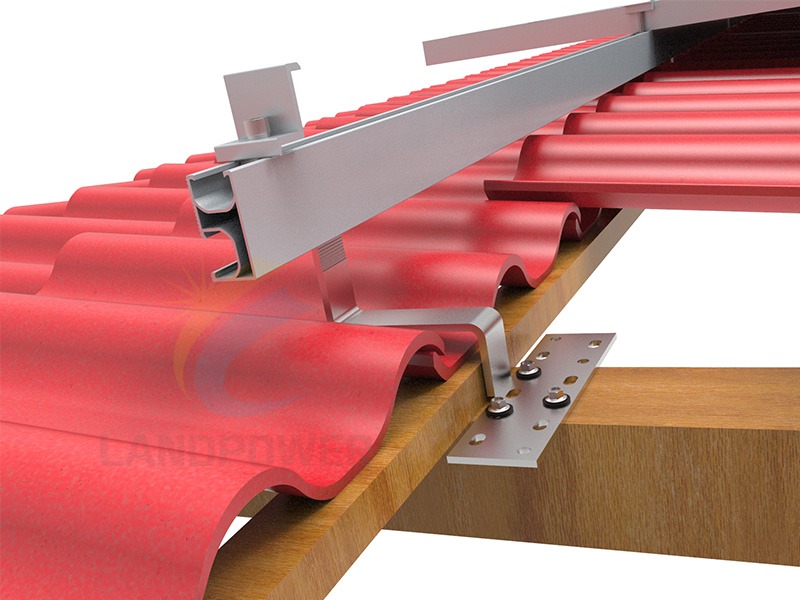

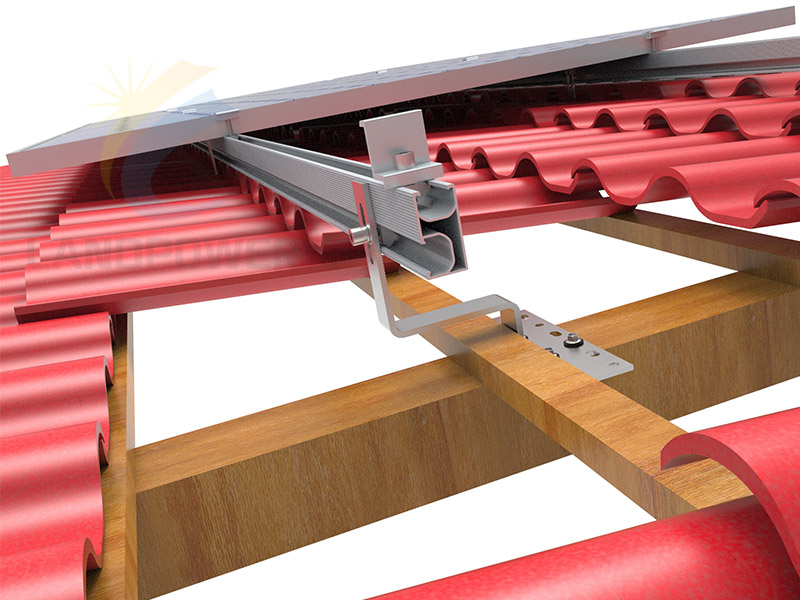

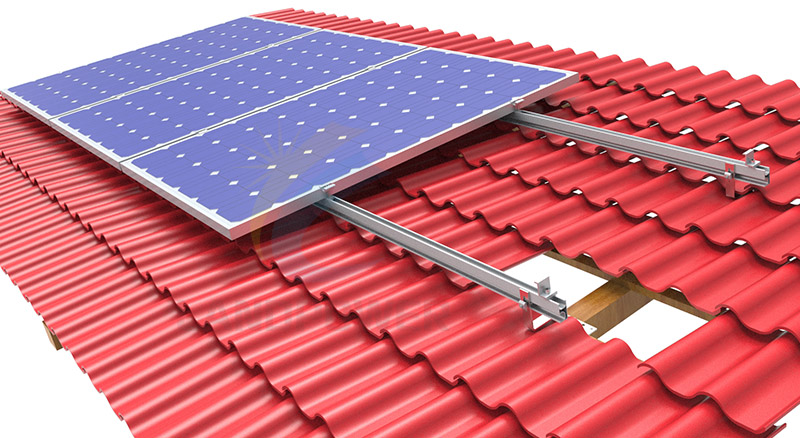

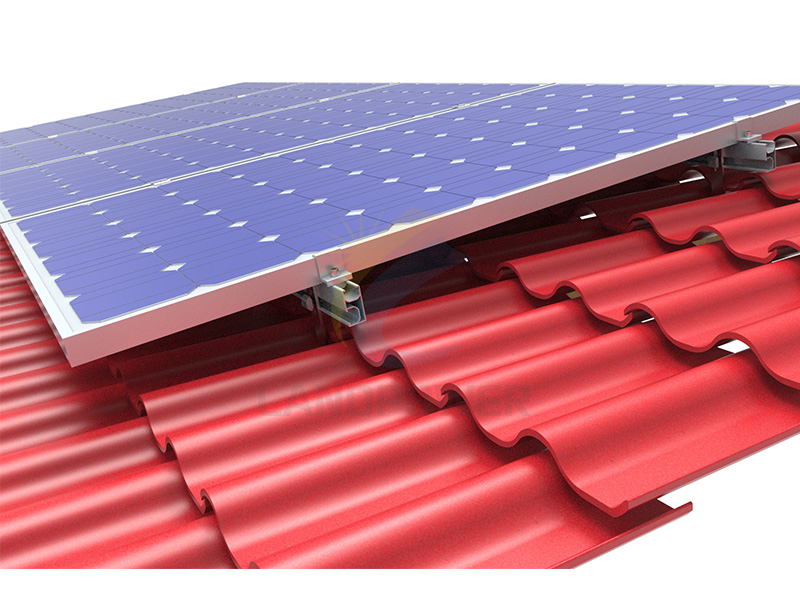

The tile roof mounting structure demo.:
Various adjustable or fixed tile roof hooks for different types of tiles:

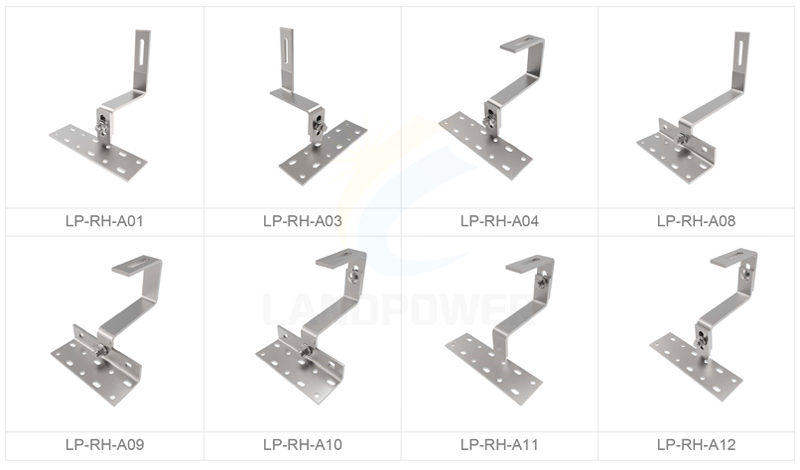

Adjustable Roof Hook:

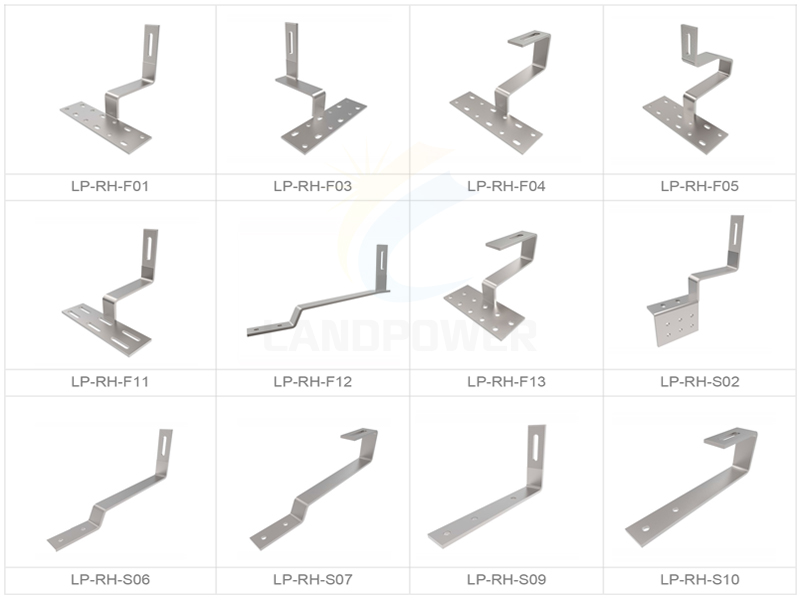

Fixed Roof Hook:
We engineer and design Solar Racking/Mounting Hardware for specific solar projects, there may not list all thedetails of racking in the web,therefore,please don't hesitate to contact us for more details for your specific projects.
Specifications
| Install site | Tile Roof |
|---|---|
| Tilt Angle | Flushed with the roof （ 10~60 deg ） |
| Building Height | 20 m |
| Max Wind Speed | <60m/s |
| Snow Load | <1.4KN/m2 |
| Standard | En 1090, AS/NZS 1170 and other international Standard |
| Material | Aluminum 6005-T5& Stainless steel A2( 304 ),EPDM |
| Color | Silver,Black or Customized |
| Anti-corrosive | A nodized aluminum & stainless steel |
| Warranty | 12 years warranty and twenty- year service life |
